Designed for rigorous industrial and quality control environments, the CETATEST 815 supports diverse pressure ranges (from negative to high positive), displays results in many units (Pa, ml/min, l/min, etc.), and offers programmable phases such as prefilling, stabilizing, measuring, and venting. Password protection and program memory ensure consistent repeatability.

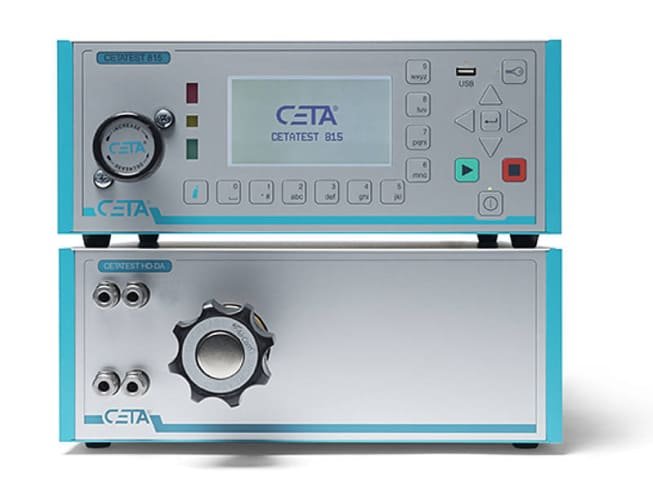

CETATEST 815 Flow Tester

With support for gauge and differential sensors, versatile valve types, and many optional interfaces (RS-232, Profibus, Ethernet, etc.), the 815 adapts to many test setups. It comes calibrated (DAkkS), includes automatic checks (Still-Alive etc.), and offers reliability and precision through automatic test cycle oversight.

Features

Differential & Gauge Pressure Measurement

Simultaneous use of differential pressure sensors plus gauge pressure allows accurate leak detection across varying parts.

Multiple Test Modes & Phases

Supports modes like pressure decay, pressure rise, sealed component, dynamic pressure; phases include prefilling, stabilizing, measuring, venting.

Wide Pressure Ranges

Ranges from negative gauge (e.g. -1 bar) through small positive mbar ranges up to tens of bar, configurable depending on test requirements.

User Programmability & Security

64 user-programmable test programs with alphanumeric naming, password-protected levels, ability to save/import configurations.

Interfaces & Data Handling

Standard digital I/O and RS-232; optional Ethernet, Profibus, etc.; supports test curves, result statistics, memory export; includes software (CETA Soft).

Overview

Specification	Detail / Value
Operating Principle	Differential pressure method (test part vs tight reference volume)
Signal Processing	24-bit A/D converter; internal resolution 0.01 Pa; real-time processing with 16-bit µC at 40 MHz
Measurement Ranges (Differential Pressure)	± 500 Pa / ± 5,000 Pa (display resolution 1 Pa; internal 0.01 Pa); other ranges on request
Pressure Ranges (Gauge)	Examples: -1 bar, ±5 mbar, ±50 mbar, 200 mbar, 1 bar, 6 bar, 10 bar, 20 bar, 30 bar; positive/negative gauge combinations possible
Test Modes	Pressure decay, sealed component, pressure steps, (optional) pressure rise; various valve types depending on setup
Program Memory	64 parameter-set test programs with alphanumeric names; import/export via USB or interfaces
Power Supply / Consumption	100-240 VAC, 47-63 Hz; current draw ~0.3-0.6 A depending on configuration; up to 60 W max
Compressed Air Supply	6-10 bar; must exceed test pressure by ~0.5 bar (or under evacuation pressure by ~50 mbar) per ISO 8573-1

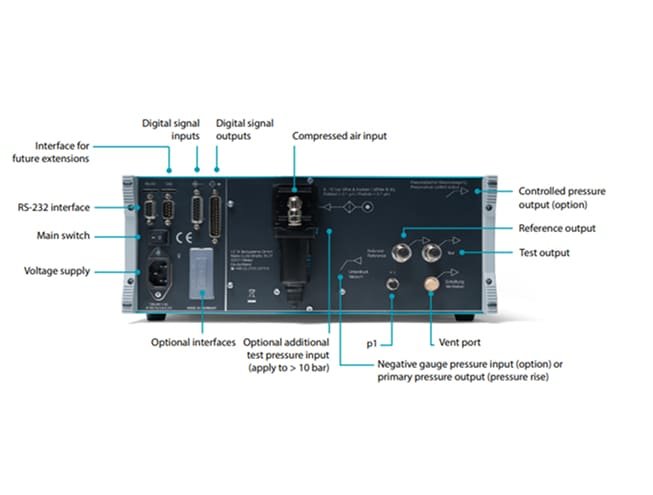

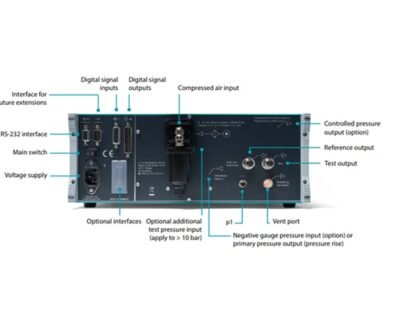

Pneumatic Connections	Supply input: 6 mm plug-in; test part port: 6×1 mm fitting; optional clamping rings; up to three pneumatically driven outputs in some variants
Dimensions / Weight	W × H × D: 345 × 145 × 435 mm (3U form factor); weight approx. 10 kg
Warranty & Calibration	Comes with DAkkS calibration certificate; 3-year warranty with yearly maintenance; optional extension to 5 years
