Otsuka Optics’ LSK WIDE-CL delivers bright white LED illumination with diffusion for even lighting and a broad wide-view magnification system (2×–4×). The free arm and clamp design offer easy adjustment for detailed quality control, assembly, and inspection, while AR coating improves clarity and reduces reflection during inspection tasks.

LED Illuminated Mangifire LSK WIDE-CL Otsuka Optics

This LED-illuminated magnifier combines a 150 mm wide lens and adjustable brightness lighting for clear, fatigue-reduced viewing. With a flexible clamp and free arm for workbench mounting, the LSK WIDE-CL is ideal for detailed visual inspection, assembly work, or quality assurance in industrial and lab environments.

Features

Wide 150 mm Lens

Large aperture AR-coated lens for broad field of view and clear imaging.

High-CRI LED Lighting

High color rendering white LED with diffusion for even illumination.

Adjustable Brightness

Continuous dimming from 100 % to 50 % for customized visibility.

Free Arm & Clamp

Flexible positioning on workbenches with clamp mount and articulated arm.

Interchangeable Magnification

Wide-series lenses (2×, 3×, 4×) for different inspection needs.

Overview

Lens
Magnification Lineup	AR WIDE 2x, AR WIDE 3x, AR WIDE 4x ( anti-reflection coating )
Lighting
Light source	High color rendering white LED （Ra≧90）+ diffusion cover
Input voltage	100～240V, 50/60Hz, plug type A * It is possible to use up to 125 ～ 240V by changing the cord with attached AC plug. For more information, please contact your dealer.
Power consumption	11W+11W
continuous dimming	Available/100 ～ 50%

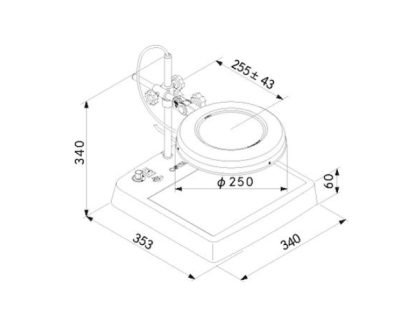

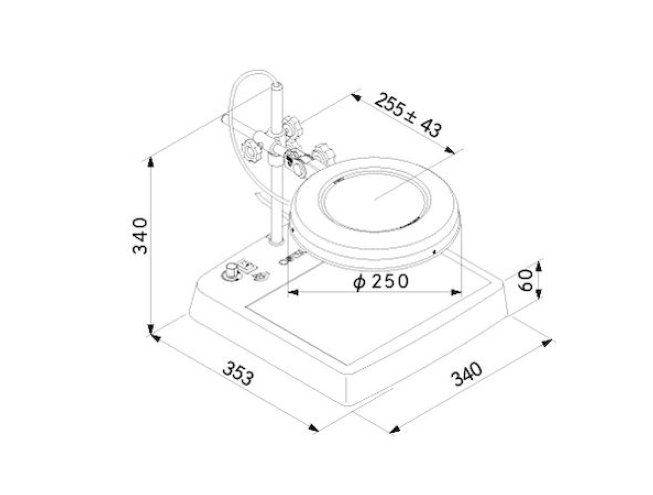

Body
Weight (Kg)	3.4 (Body weight without lens)
Total Height (mm)	340
Head Dimensions (mm)	ɸ263
transillumination dimension (mm)	210 × 298
Vertical Post/Horizontal Bar (Diameter/mm)	ɸ16/ɸ13
Operating Temperature Range	5℃～35℃
Dustproof and waterproof protection grade	IP20 (Indoor use only)
