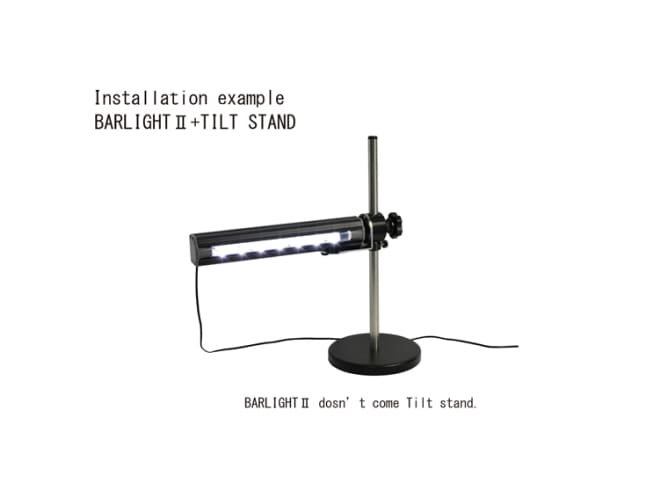

The BARLIGHT 2 from Otsuka Optics provides stable, high-intensity illumination tailored for surface inspection work. Its narrow beam focuses light evenly across a workpiece, emphasizing subtle irregularities. Designed for precision quality control, it integrates well with magnifiers or auxiliary stands in industrial environments.
LED Light For Checking Surface Flaws BARLIGHT2 Otsuka Optics
Otsuka Optics BARLIGHT 2 delivers consistent white LED light that improves visibility of micro-defects on flat surfaces. Lightweight and compact, this inspection lamp does not offer adjustable brightness or beam angle but ensures reliable illumination across inspection tasks. Ideal for manufacturing and quality inspection stations.
Features
Spesification
| Lighting | |
|---|---|
| Light source | Bright White LED x 7 pcs |
| Input voltage | 100V:50/60 Hz:Plug Type A *The voltage cannot be polarized. |
| Illumination (Irradiation divergence angle 6°/measured value) | 150mm/15000Lx, 200mm/10000Lx, 300mm/5800Lx, 400mm/3600Lx |
| Power consumption | 8W |
| Dimming Function | Not available |
| Adjustment function for irradiation divergence angle | Not available / fixed |
| Body | |
| Product weight (Kg) | 370g (illuminating head/300g) |
| Operating temperature range | 0℃ ～ 40℃ |
| Dustproof and waterproof protection grade | IP40(Indoor ude only) |
