Designed for industrial inspection and precision tasks, the LED-WIDE-3 reduces power consumption by about 50% compared to conventional fluorescent types. It features a wide rectangular optical glass lens and a head-mounted ON/OFF switch for ease of use, making it ideal for detailed visual inspection over extended work sessions.

LED Illuminated Mangifire WIDE 3 Otsuka Optics

The LED-WIDE-3 from Otsuka Optics offers a large viewing area with fixed 2× magnification and bright white LED lighting. Its design allows limited free-arm movement with stable support, while the AC adapter-powered LED system delivers consistent light quality for demanding inspection environments.

Features

LED Energy-Efficient Lighting

Reduces power consumption by ~50% vs fluorescent models while maintaining illumination and diffusion.

Large Rectangular Lens

Wide, square optical glass lens eliminates peripheral distortion for extended viewing comfort.

Workbench Clamp Mount

Clamps securely to tables using pillar and horizontal bar (limited free-arm movement).

ON/OFF Head Switch

Conveniently placed power control on the magnifier head.

Stable Long Bar Construction

Provides rigidity and directional positioning for inspection setups.

Overview

Lens
Magnification	2x
Allowable lens dimension (mm)	200×220
Lens Material	Optical glass
Working distance (mm)	2x/160
Lens Type	Fixed
Multi-coating Setting	Not available
Lighting
Light source	White LEDs 2 pcs.
Input voltage	100〜240V: 50/60 Hz: Plug Type A
Power consumption	9 W
Dimming Function	Not available

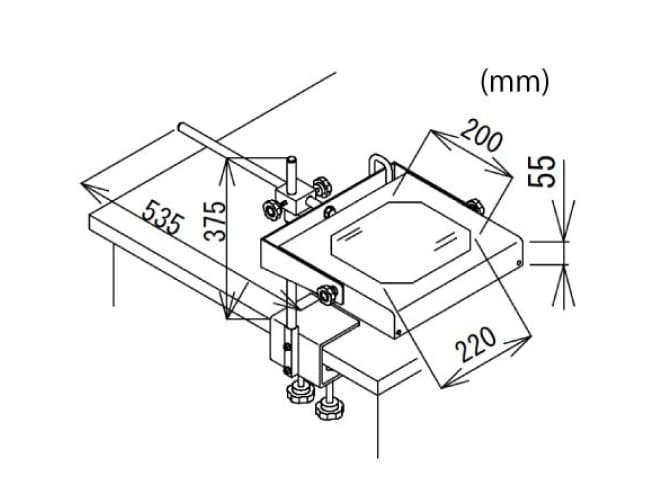

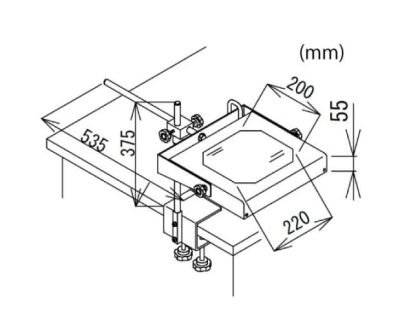

Body
Product weight (Kg)	8.9 Kg
Overall height (mm)	375
Head Dimensions (mm)	314X284x55H
Virtical/Horizontal Bar (diameter/mm)	ɸ16/ɸ16
Possible clamping width (mm)	0～70
AC adapter dimensions (mm)	64x50x27
