Engineered for industrial inspection, the MGR 2XAR wide lens delivers sharp, distortion-free magnification with excellent clarity. The AR-coated optical glass minimizes reflections and glare, enhancing accuracy. Its generous working distance and wide viewing area allow users to perform detailed tasks comfortably while maintaining stable focus and ergonomic positioning during prolonged operation.

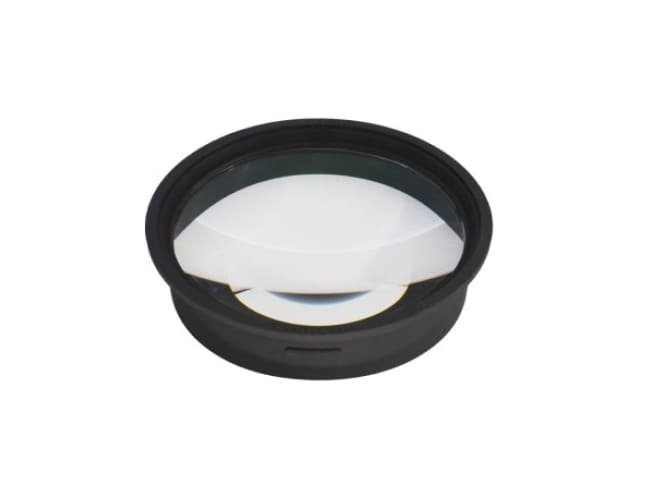

Magna Wide Lens System MGR 2XAR Otsuka Optics

The Magna Wide Lens System MGR 2XAR is optimized for professional visual inspection requiring low magnification with high clarity. Its wide field design supports efficient observation of large surfaces, while precision optical glass construction ensures durability. Compatible with Otsuka illuminated magnifier systems, it offers reliable performance for manufacturing, electronics, and quality control applications.

Features

Large Diameter Lens

Φ150 mm lens provides a wide viewing area for efficient inspection.

2× AR Magnification

Low magnification close to natural vision with anti-reflection coating.

Optical Glass Construction

High-quality optical glass ensures clarity and durability.

Wide Field of View

Approximately Φ200 mm field improves productivity.

Comfortable Working Distance

Around 150 mm eye point and working distance for ergonomic use.

Spesification

LENS
Magnifications	2X AR
Lens dimensions/ Eyepiece diameter(mm)	Φ150
Eye point / distance between eye and lens(mm)	150
Working distance / distance between lens and object(mm)	150
Field of view(mm)	Φ200
Lens method	Magna Wide Lens System
AR corting	Avalable
material	Optical glass
Lens Configuration	1 pieace
Weigt(g)	700
Compatible models	MAGNALIGHT
