Magnetic Drills Eagle Rotabroach

Designed with advanced safety features, including internal cooling mechanisms and a durable yet lightweight construction, the Eagle drills ensure reliable performance and versatility across diverse applications, making them essential tools for demanding projects in workshops and on-site environments.

EAGLE 1

Other Specialist Drills

01

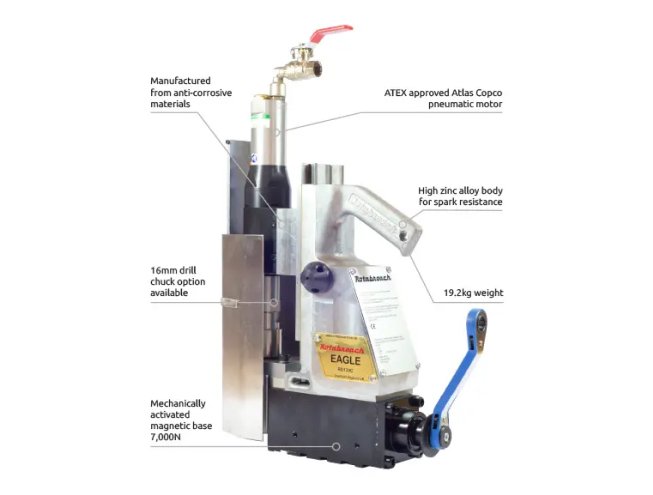

Designed from anti spark material, perfect for use in corrosive hazardous areas.

02

Fully ATEX approved Ex II 2GD c T6 IIC T85°C.

03

Suitable for drilling up to 52mm diameter by 50mm depth.

Specification

Model Number

RD130C

Motor Specification

13 lts/sec – 28CFM @ 5.5 bar min – 6.9 bar max

No load RPM

270 RPM

Max Hole Cutting Capacity

ø52 x 50mm deep

Drill Chuck Capacity

ø16mm

Overall Dimension

Height: 560mm / Width: 160mm with Capstan / Length: 320mm with Guard

Machine Weight

19.2kg

Magnetic Adhesion

7,000N

Magnet Size

175mm x 75mm

Safety Features

Atlas Copco pneumatic motor for safety in hazardous areas / Fixed Guard
