Magnetic Drills Element 50 Pivot Magnet Rotabroach

The enhanced Element 50 features a pivot base permanent magnet, enabling operation on curved, uneven, and thin surfaces down to 3mm thickness. Ideal for pipework, shipbuilding, and power generation, it incorporates CutSmart technology, overload protection, and double pivoting permanent magnet for versatile drilling.

32 people are viewing this product right now

🔥 6 items sold in last 3 hours

Category: Magnetic Drill

Estimated delivery:June 18, 2026 - June 22, 2026

Description

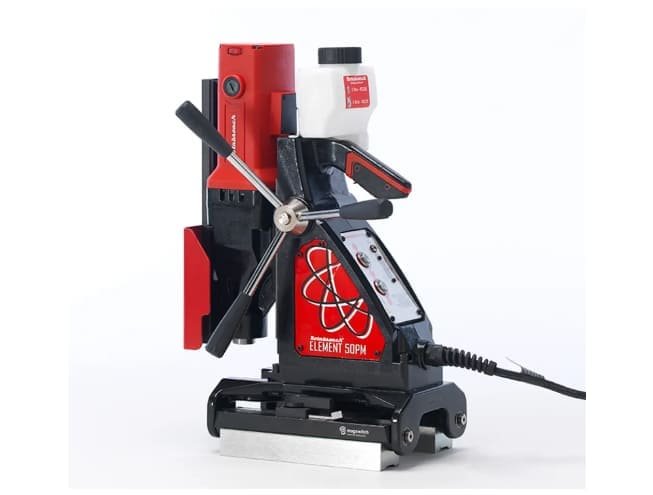

Magnetic Drills Element 50 Pivot Magnet Rotabroach

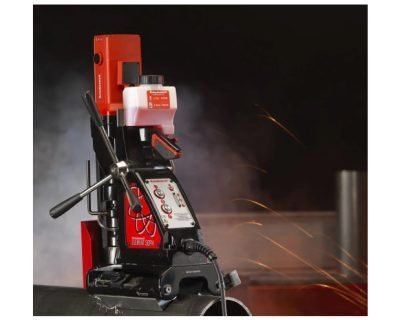

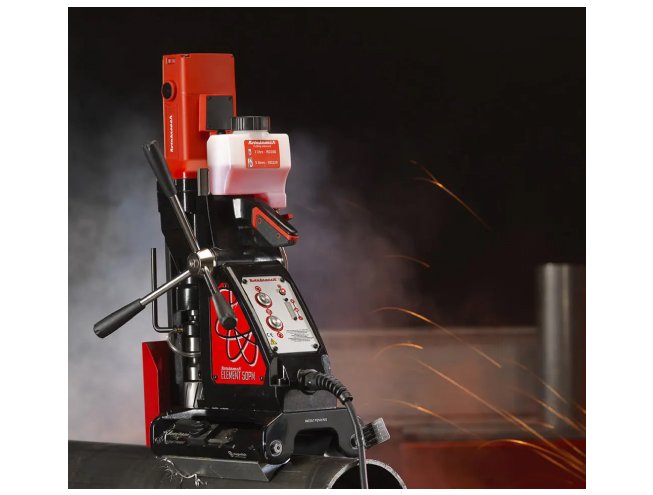

The Element 50 with Pivot Magnet by Rotabroach features a versatile pivot base permanent magnet for curved, uneven, and thin surfaces down to 3mm thickness. Ideal for various industries, it includes CutSmart technology and offers drilling, threading, and countersinking capabilities.

Key Features

Maintains strong grip on curved steel and pipework down to 3.5mm material thickness.

Can be also used for standard flat surface drilling.

Twist drill, threading and countersinking capability.

Permanent magnet technology – magnet does not require electrical power.

Double pivoting magnet base.

Safe and hidden away internal cabling.

Centered control panel with Cutsmart™ for increased tool and machine life.

Powerful 1500w motor with a two speed mechanical gearbox.

Mounted coolant bottle, steel sliding guard and switchable handle.

Overload protection ensures your magdrill is kept in the best possible condition.

The Commando 40 has a powerful motor and the flexibility of 6 speeds.

32mm max cutter diameter.

Element Range

CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.

Powerful 1500w motor with a two-speed mechanical gearbox.

Internal cabling reduces the risk of damage and downtime for your magdrill.

Mounted coolant bottle, steel sliding guard and switchable handle.

Dual motor protection, minimising wear and downtime of this magdrill.

Can be also used for standard flat surface drilling.

Suitable for drilling up to 5omm diameter by 50mm depth.

Twist drill, threading and countersinking capabilities.

490mm to 640mm in height.

Double pivoting magnet base.

Specification

Model Number	Element 50/1PM / Element 50/3PM
Motor Specification	110V 1500W / 230V 1500W
No load RPM	Low Gear: 100-265RPM / High Gear: 200-500RPM
Max Cutting Capacity	⌀50 x 50mm Deep – 20mm with 2MT twist drill
Overall Dimension	Height: min 490mm – max 640mm / Width: 190mm / Length: 317mm
Machine Weight	110V/18kg / 230V/17.7kg
Magnetic Adhesion	8,430N
Magnet Size	277mm x 190m
Safety Features	Cutsmart™ Technology / Magnetic Detection / Secondary Motor Protection
