Magnetic Drills Gator Rotabroach

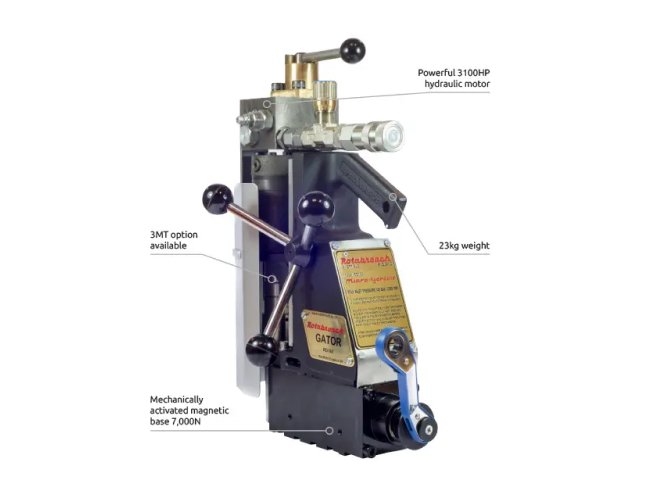

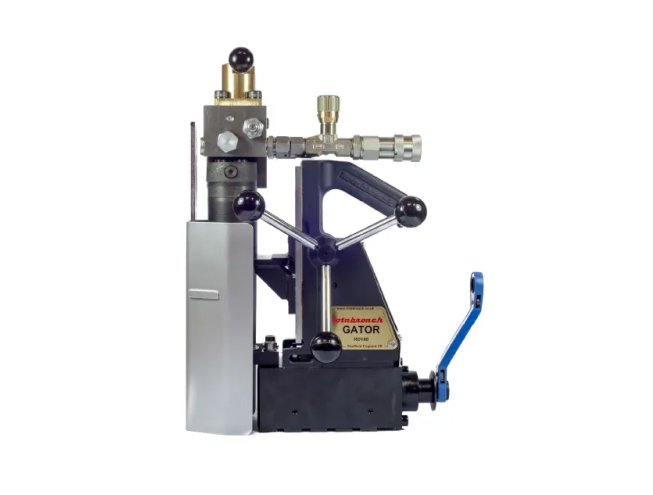

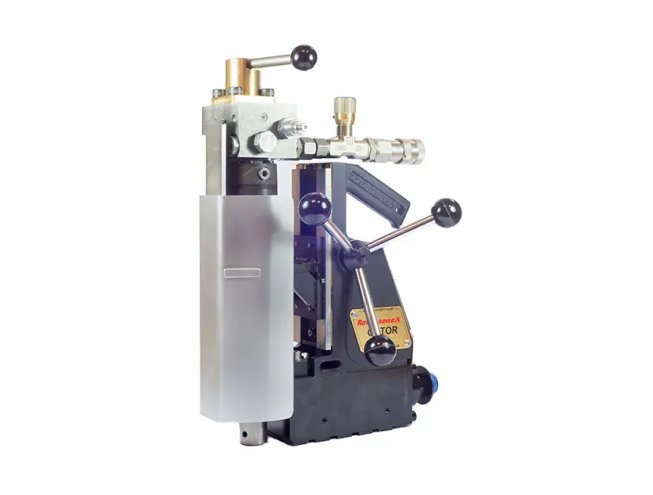

The Gator Magnetic Drill by Rotabroach combines powerful performance with portability. Designed for versatility and durability, it’s ideal for on-site and workshop applications, featuring efficient drilling capabilities and safety features.

GATOR 1

Other Specialist Drills

01

Used in applications when only hydraulic supplies are most convenient or necessary.

02

Suitable for drilling up to 52mm diameter by 50mm depth.

Specification

Model Number

RD140

Motor Specification

140 bar (2050 psi)

No load RPM

630 RPM

Max Hole Cutting Capacity

ø52 x 50mm deep

Drill Chuck Capacity

ø16mm

Overall Dimension

Height: 520mm / Width: 160mm with Capstan / Length: 320mm with Guard

Machine Weight

23kg

Magnetic Adhesion

7,000N

Magnet Size

175mm x 75mm

Safety Features

Fixed Guard
