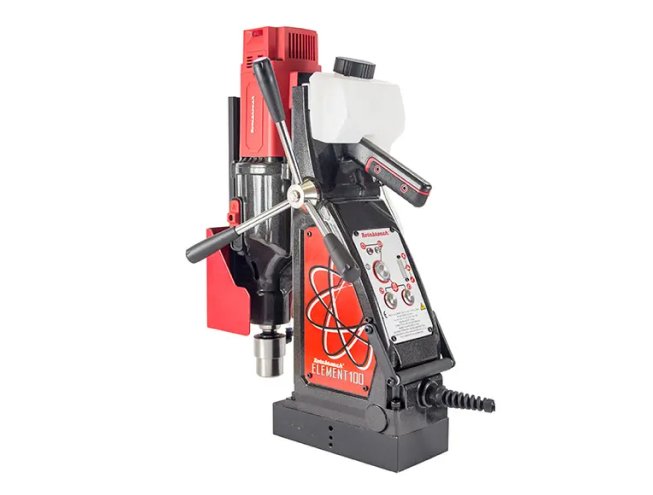

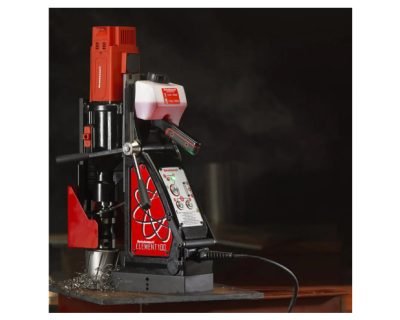

Magnetic Drills Element 100 Rotabroach

The Element 100 is Rotabroach’s largest magnetic drill, featuring a 2000W motor and a two-speed gearbox. It can drill up to 100mm in diameter and depth, and countersink up to 40mm. With Cutsmart technology, dual motor protection, and internal cable design, it ensures safety, quality, and performance.

41 people are viewing this product right now

🔥 6 items sold in last 3 hours

Category: Magnetic Drill

Estimated delivery:June 15, 2026 - June 17, 2026

Description

Magnetic Drills Element 100 Rotabroach

The Element 100, Rotabroach’s largest magnetic drill, features a powerful 2000W motor and two-speed gearbox, capable of drilling 100mm in diameter and depth. It incorporates Cutsmart technology, dual motor protection, and internal cable design for enhanced safety and performance.

Key Features

Dual motor protection system to prolong the machine’s life and prevent unwanted wear 16mm drill chuck that can be used for twist drills.

Internal cabling removed the risk of damage and downtime for your magdrill.

CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.

Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.

Forward and reverse functionality for tapping.

Supplied as either a swivel base or a non-swivel option.

Suitable for drilling up to 100mm diameter by 100mm depth.

Rotabroach’s largest machine (733mm).

Can be used to countersink up to 40mm*.

Element Range

Rotabroach’s largest machine (733mm), the Element 100 is the ultimate heavy-duty drilling solution.

CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.

Internal cabling reduces the risk of damage and downtime for your magdrill.

Dual motor protection, minimising wear and downtime of this magdrill.

Internal cooling – keeping your mag drill cool and allowing you to drill for longer.

Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.

Suitable for drilling up to 100mm diameter by 100mm depth.

Powerful 2000w motor with a four-speed mechanical gearbox.

Twist drill, threading and countersinking capabilities.

Features a swivel base.

Specification

Model Number	Element 100/1 / Element 100/3
Motor Specification	110V 2000W / 230V 2000W
No load RPM	Gear 1: 45-129 RPM Gear 2: 70-208 RPM Gear 3: 150-434 RPM Gear 4: 240-700 RPM
Max Hole Cutting Capacity	ø100 x 100mm Deep – 31.75 with MT Drill
Overall Dimension	Height: 560mm / Width: 230mm with Capstan / Length: 460mm with Guard
Machine Weight	24.8kg
Magnetic Adhesion	20,000N
Magnet Size	228mm x 114mm
Safety Features	Cutsmart™ Technology / Fixed Guard / Magnetic Detection
