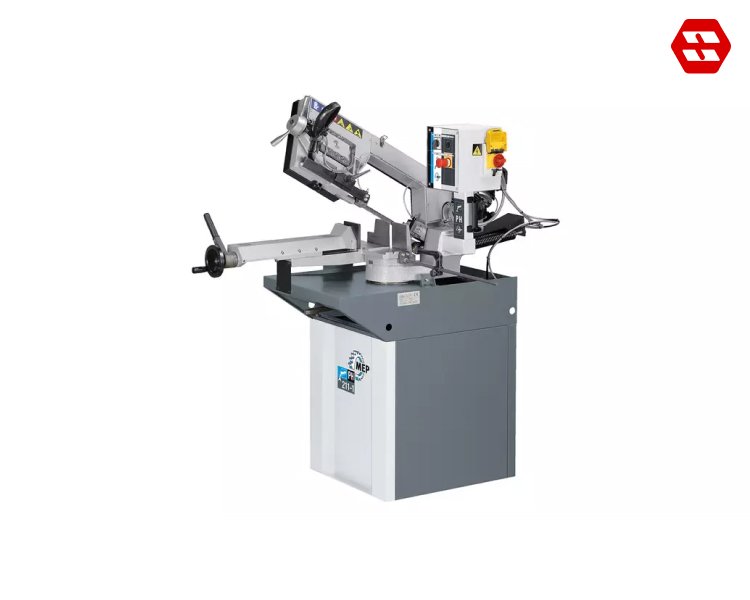

Manual Bandsaw Machine PH 211-1 MEP
Cast-Iron Structure
Hard Metal Blade-Guide Pads
Optional HB-System
Technical Data Manual Bandsaw Machine
PH 211-1 MEP
CUTTING RANGE
 |  | | |
| 0° | 180 mm | 180 mm | 200 x 150 mm |
| +45° | 115 mm | 110 mm | 125 x 110 mm |
| +60° | 115 mm | 70 mm | 70 x 70 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 218 mm |
| Band size | 2130 x 20 x 0.9 mm |
| Blade motor power | 1.25 Kw – Single-phase | 0.7 / 0.81 Kw – Three-phase |
| Blade rotation speed | 80 m/min – 1 Speed | 40 / 80 m/min – 2 Speeds |
