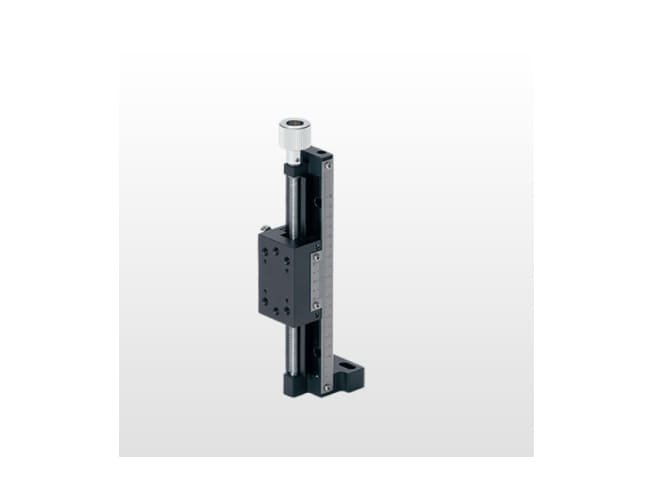

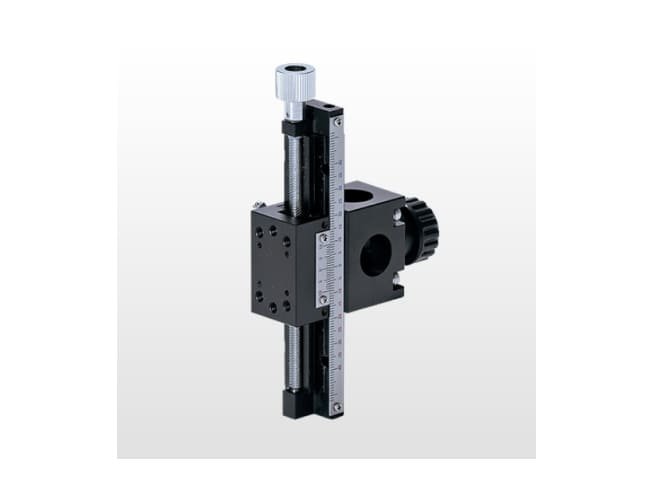

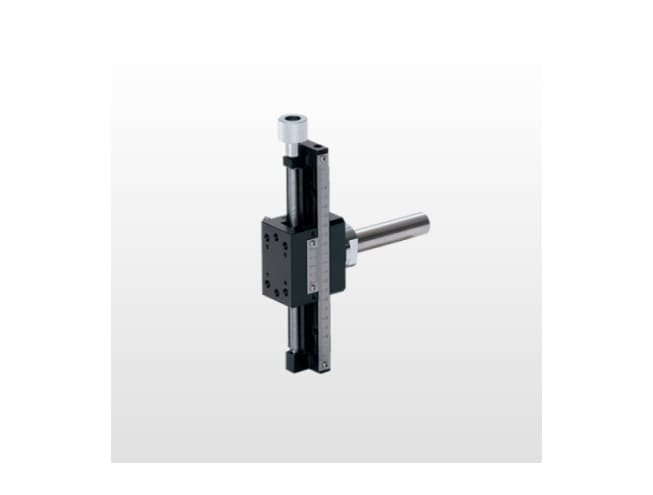

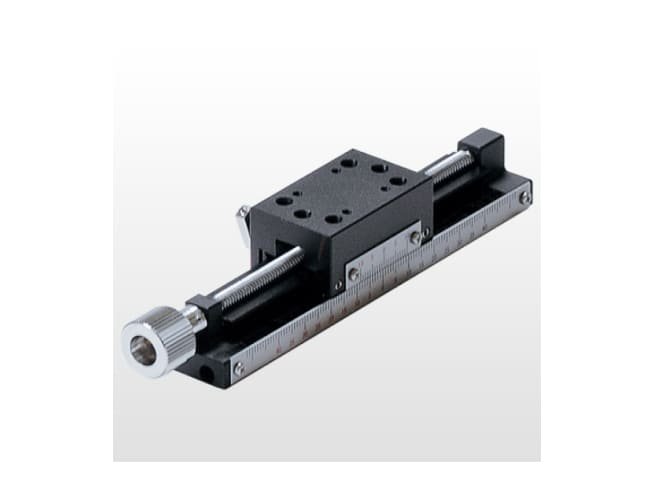

Miruc Dovetail Feed Screw Stage
The MIRUC Dovetail Feed Screw Stage is a precision positioning stage that combines the smooth sliding of MIRUC dovetail guides with a feed screw drive, offering controlled linear motion for inspection, measurement, and jig assemblies. Travel per handle turn can be selected to match precision or speed needs.
47 people are viewing this product right now
🔥 7 items sold in last 3 hours
Designed for industrial and optical positioning, MIRUC’s feed screw stages provide reliable linear movement with minimal backlash, selectable feed pitches (e.g., 2 mm, 5 mm, 10 mm per turn), and a visible scale for precise adjustment. These stages support applications in devices, metrology setups, and automation fixtures.
Miruc Dovetail Feed Screw Stage
MIRUC dovetail feed screw stages deliver both smooth surface contact motion and robust load capacity in a compact aluminum package. The stage’s versatile design supports multiple travel lengths and optional configurations like dual handles and external scale placement. They’re ideal for long-stroke precision positioning.
Features
Overview
| Model | Axis / Type | Stage Surface (mm) | Travel (mm) | Travel per Rotation (mm) | Travel Precision (µm) | Load Capacity N (kgf) | Min. Scale Reading (mm) | Weight (kg) | Straightness (mm) | Parallelism (mm) | Catatan |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XTSC-70 | X-axis | 25 × 40 | ±17 | 2 / 5 | 30 | 29.4 (3) | 0.1 | 0.12 | 0.12 | 0.16 | – |
| ZTSC-70 | Z-axis | 25 × 40 | ±17 | 2 / 5 | 30 | 14.7 (1.5) | 0.1 | 0.16 | 0.12 | 0.16 | – |
| XTSC-90 | X-axis | 25 × 40 | ±27 | 2 / 5 / 10 | 30 | 29.4 (3) | 0.1 | 0.14 | 0.14 | 0.18 | – |
| ZTSC-90 | Z-axis | 25 × 40 | ±27 | 2 / 5 / 10 | 30 | 14.7 (1.5) | 0.1 | 0.18 | 0.14 | 0.18 | – |
| XTSC-120 | X-axis | 25 × 40 | ±42 | 2 / 5 / 10 | 30 | 29.4 (3) | 0.1 | 0.16 | 0.16 | 0.20 | – |
| ZTSC-120 | Z-axis | 25 × 40 | ±42 | 2 / 5 / 10 | 30 | 14.7 (1.5) | 0.1 | 0.20 | 0.16 | 0.20 | – |
| XTSC-150 | X-axis | 25 × 40 | ±57 | 5 / 10 | 40 | 29.4 (3) | 0.1 | 0.18 | 0.18 | 0.22 | – |
| ZTSC-150 | Z-axis | 25 × 40 | ±57 | 5 / 10 | 40 | 14.7 (1.5) | 0.1 | 0.22 | 0.18 | 0.22 | – |
| TSC-70BC | Support Holder | 25 × 40 | ±17 | 2 / 5 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.20 | – | – | BC (Block) |
| TSC-90BC | Support Holder | 25 × 40 | ±27 | 2 / 5 / 10 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.22 | – | – | – |
| TSC-120BC | Support Holder | 25 × 40 | ±42 | 2 / 5 / 10 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.24 | – | – | – |
| TSC-150BC | Support Holder | 25 × 40 | ±57 | 5 / 10 | 40 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.26 | – | – | – |
| TSC-70SF | Support Type | 25 × 40 | ±17 | 2 / 5 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.23 | – | – | SF (Stand Fix) |
| TSC-90SF | Support Type | 25 × 40 | ±27 | 2 / 5 / 10 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.25 | – | – | – |
| TSC-120SF | Support Type | 25 × 40 | ±42 | 2 / 5 / 10 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.27 | – | – | – |
| TSC-150SF | Support Type | 25 × 40 | ±57 | 5 / 10 | 40 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.29 | – | – | – |
| TSC-70AR | Articulated (180°) | 25 × 40 | ±17 | 2 / 5 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.39 | – | – | AR (Articulated) |
| TSC-90AR | Articulated (180°) | 25 × 40 | ±27 | 2 / 5 / 10 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.41 | – | – | – |
| TSC-120AR | Articulated (180°) | 25 × 40 | ±42 | 2 / 5 / 10 | 30 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.43 | – | – | – |
| TSC-150AR | Articulated (180°) | 25 × 40 | ±57 | 5 / 10 | 40 | 29.4 (X) / 14.7 (Y) | 0.1 | 0.45 | – | – | – |
