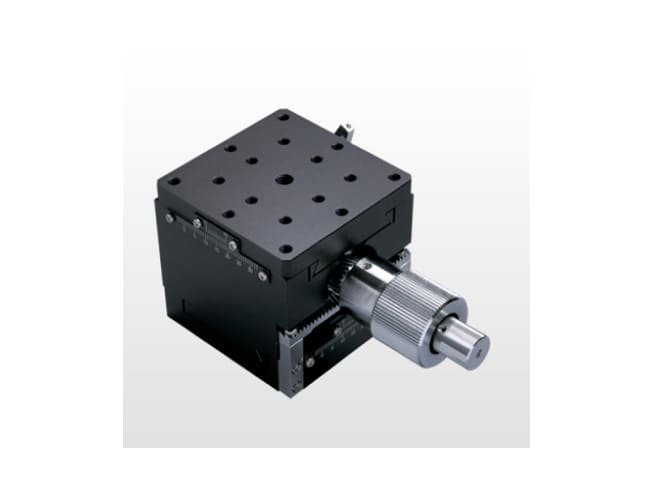

Miruc Dovetail Reversible Stage RVS-60
The MIRUC RVS-60 Dovetail Reversible Stage is a precision XY positioning stage with a reversible design that allows front/back and left/right configuration for symmetrical operation. Its smooth dovetail sliding and interchangeable scale plates and clamp levers adapt to varied inspection and optical alignment tasks.
38 people are viewing this product right now
🔥 10 items sold in last 3 hours
Designed for industrial jigs, microscopes, and measurement fixtures, the RVS-60 offers bidirectional XY motion with easy reversal of the scale plate and clamp lever. The stage’s reversible specification enables use on either surface, enhancing flexibility in inspection, positioning, and tooling applications.
Miruc Dovetail Reversible Stage RVS-60
The MIRUC RVS-60 Reversible Stage delivers sturdy aluminum construction with matt black alumite finish, smooth sliding action, and clear scale reading. Its symmetrical arrangement allows efficient operation from either side of the stage, making it ideal for precision positioning and adjustable setups.
Features
Overview
| Specification | Detail |
|---|---|
| Model | RVS-60 Dovetail Reversible Stage |
| Stage Surface (mm) | 60 × 60 |
| Travel (mm) | ±12 mm |
| Travel per Rotation (mm) | X-axis: 18 mm; Y-axis: 4.2 mm |
| Travel Precision (μm) | 30 µm straightness; 30 µm parallelism |
| Load Capacity | 39.2 N (4 kgf) |
| Minimum Scale Reading | 0.1 mm |
| Weight (kg) | 0.62 kg |
| Material & Finish | Aluminium alloy body; matt black alumite surface |
