MIRUC OCD eyepiece lenses offer high-quality optics for industrial measurement and inspection. Available in 10× and 20× magnifications, they include adjustable diopter correction and optional eyepiece hoods to cut ambient light, improve contrast, and reduce eye fatigue during extended observation sessions.

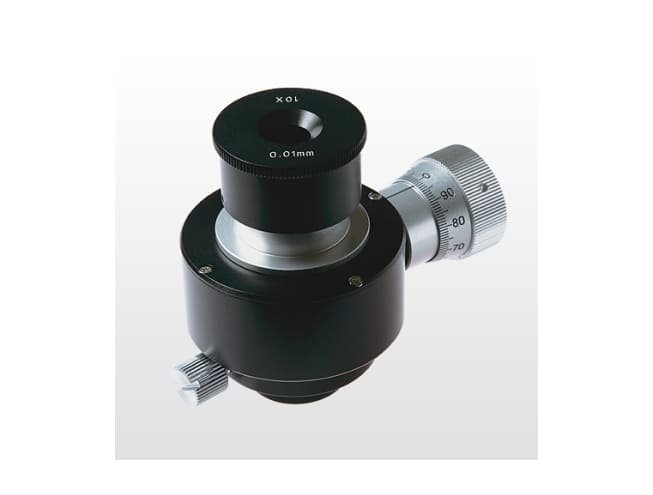

Miruc Eye Piece Lenses OCD

The MIRUC OCD eyepieces are engineered for precision and ergonomic use in manufacturing and quality control. With diopter adjustment and compatibility with eyepiece micrometers and C-mount adapters, they enhance visual measurement accuracy and facilitate simple digital monitoring when combined with cameras.

Features

Two Magnification Options

Available in OCD 10× and OCD 20× versions for varying detail requirements.

Diopter Correction

Integrated diopter adjustment lets users fine-tune focus for individual eyesight.

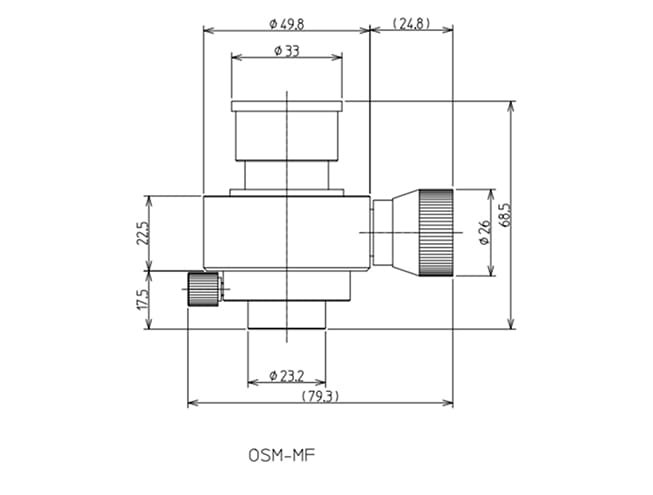

Micrometer Compatibility

Supports φ24 mm micrometer glass for accurate scale measuring.

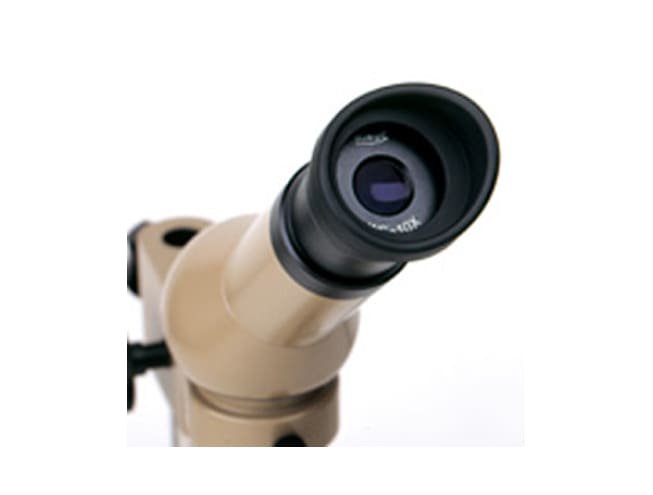

Optional Eyepiece Hood

Eyepiece hood cuts stray light to improve visibility and comfort.

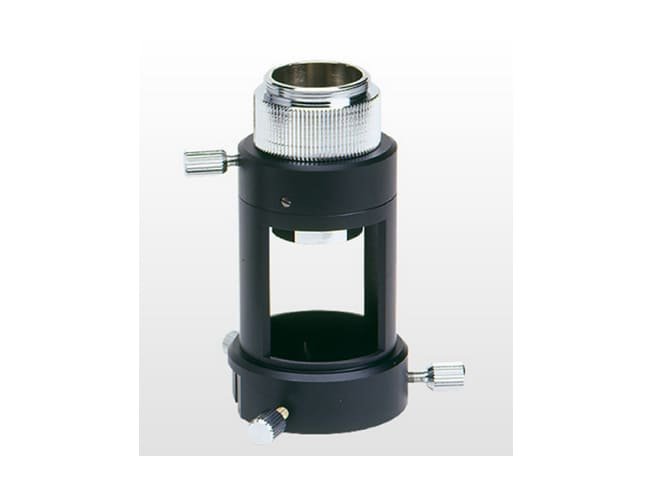

C-Mount Adapter Support

Compatible with relay or direct C-mount adapters for camera integration and monitor display.

Overview

OCD Eyepiece Lenses

Model	Magnification	Micrometer Compatibility	Diopter Adjustment	Eyepiece Hood	Notes
OC.WFD10× (OCD10×)	10×	φ24 mm micrometer glass	Yes	Optional (OC-EH)	Standard wide-field lens
OC.WFD20× (OCD20×)	20×	φ24 mm micrometer glass	Yes	Optional (OC-EH)	High magnification wide-field lens

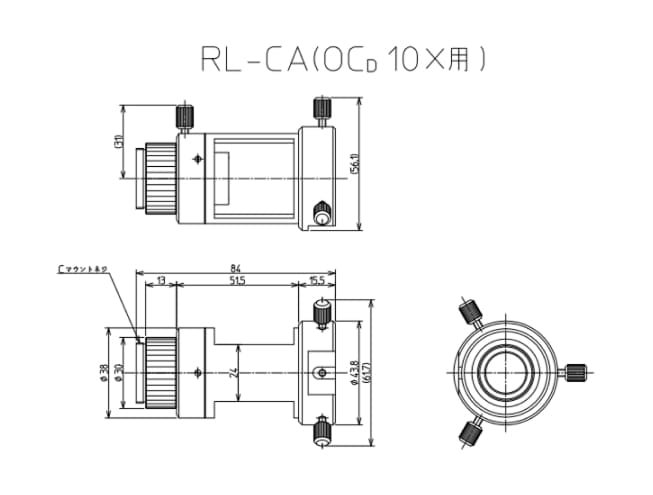

Relay Lens C-Mount Adapter (RL-CA)

Eyepiece Lens	Objective Lens	Field of Vision (mm) V×H×D	Monitor Magnification (9” Monitor)	Working Distance (mm)
OCD10×	OBD 1×	4.5 × 6 × 7	~29.6×	176
	OBD 2×	2.25 × 3 × 3.5	~58×	85
	OBD 3×	1.5 × 1.95 × 2.3	~86×	63
	OBD 4×	1.1 × 1.5 × 1.75	~118×	48
	OBD 5×	0.9 × 1.2 × 1.4	~147×	39
	OBD 6×	0.75 × 0.95 × 1.2	~172×	33
	OBD 8×	0.55 × 0.72 × 0.9	~232×	27
	OBD 10×	0.45 × 0.6 × 0.7	~296×	20

Eyepiece Lens	Objective Lens	Field of Vision (mm) V×H×D	Monitor Magnification (9” Monitor)	Working Distance (mm)
OCD20×	OBD 1×	2.25 × 3 × 3.5	~58×	176
	OBD 2×	1.125 × 1.5 × 1.75	~116×	85
	OBD 3×	0.75 × 0.975 × 1.15	~172×	63
	OBD 4×	0.55 × 0.75 × 0.875	~236×	48
	OBD 5×	0.45 × 0.6 × 0.7	~294×	39
	OBD 6×	0.375 × 0.475 × 0.6	~344×	33
	OBD 8×	0.275 × 0.36 × 0.45	~464×	27
	OBD 10×	0.225 × 0.3 × 0.35	~592×	20

Direct C-Mount Adapter (D-CA) With 2/3” Camera System

Objective Lens	Field of Vision (mm) V×H×D	Monitor Magnification (9” Monitor)	Working Distance (mm)
OBD 1×	4.2 × 5.3 × 6.3	32×	150
2×	2.28 × 2.9 × 3.5	60×	80
3×	1.6 × 2 × 2.4	85×	61
4×	1.2 × 1.55 × 1.9	112×	48
5×	1 × 1.25 × 1.5	136×	39
6×	0.82 × 1.05 × 1.3	162×	33
8×	0.62 × 0.8 × 0.95	216×	24
10×	0.5 × 0.65 × 0.8	264×	20

With 1/2” Camera System

Objective Lens	Field of Vision (mm) V×H×D	Monitor Magnification (9” Monitor)	Working Distance (mm)
OBD 1×	3.1 × 4.1 × 4.9	42×	150
2×	1.7 × 2.2 × 2.6	78×	80
3×	1.2 × 1.55 × 1.85	110×	61
4×	0.9 × 1.18 × 1.4	147×	48
5×	0.75 × 0.95 × 1.15	180×	39
6×	0.61 × 0.81 × 0.98	214×	33
8×	0.48 × 0.6 × 0.73	286×	24
10×	0.4 × 0.5 × 0.6	350×	20
