Engineered for high-accuracy inspection, the EL270ST uses advanced OLED lighting technology to deliver soft, evenly distributed illumination with excellent color rendering. The adjustable brightness function allows users to fine-tune lighting from 10% to 100%, while its ergonomic design supports flexible positioning for improved visibility during detailed examination and quality control processes.

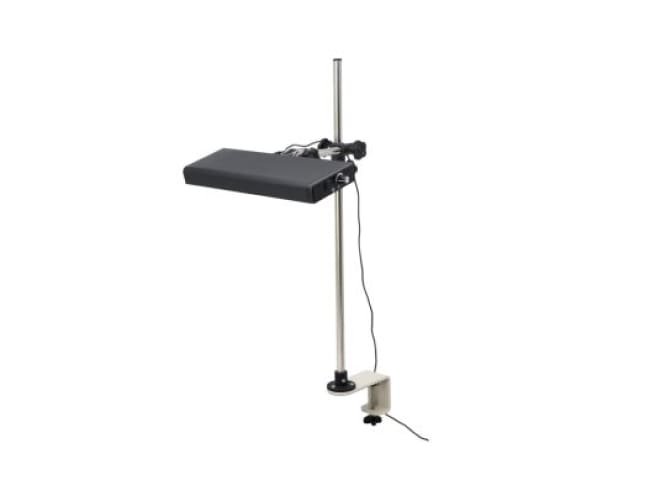

Modelight Series EL270ST Otsuka Optics
The Otsuka EL270ST inspection light combines energy-efficient OLED panels with stable illumination performance for demanding applications. With high color accuracy and consistent brightness across working distances, it enhances defect detection on glossy materials. Its durable clamp-type mounting and compact body make it ideal for inspection booths, laboratories, and manufacturing lines.
Features
Spesification
| Illumination | |
|---|---|
| Light source | OLED lighting panel |
| Input rated input voltage | 100～240V・50/60Hz・A plug ※it can be used from 125 to 240V,By changing the cord with AC plug. |
| Rated power consumption | 13W |
| Dimming function | Yes（100％〜10％） |
| Illuminance directly under the center (Max) | 3200LX/150mm 1100LX/300mm 430LX/500mm (measured by our measurement method) |
| Illuminance directly under the center (Min) | 240LX/150mm 80LX/300mm 30LX/500mm (measured by our measurement method) |
| Color temperature | 4000K( white ) |
| Average color rendering index （Ra） | 90 |
| Luminous surface size (mm) | L273×W30 |
| Total luminous flux （lm） | 200 (パネル1枚あたり） |
| AC adapter model, rating | UNIFIVE336-2415(24V/1.5) weigh：270ｇ |
| 本 体 | |
| Weight(Kg) | 2.4 (Main body weight) |
| Dustproof/waterproof protection class | P20 (for indoor use only) |
