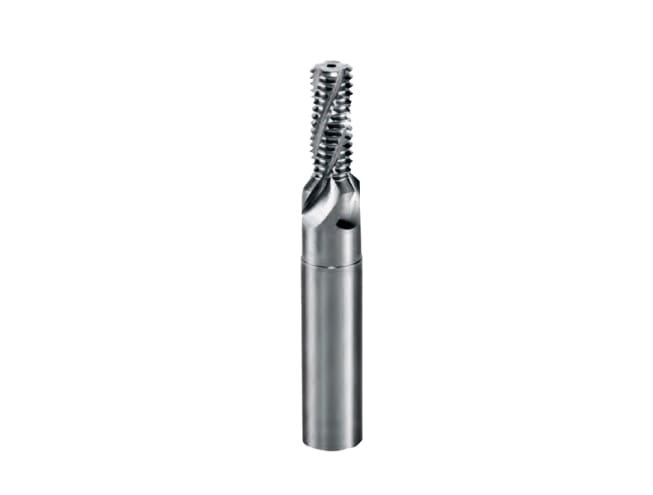

Multi CTM 7040 Thread Milling Cutter 4H-6H 6G-7G Tolerance ILIX
The Multi CTM 7040 from ILIX is a solid carbide thread milling cutter designed for simultaneous threading and countersinking operations. Featuring internal coolant channels and optimized geometry, it delivers high productivity and precision for ISO metric threads within 4H–6H and 6G–7G tolerances across a wide range of machining materials and applications.
40 people are viewing this product right now
🔥 11 items sold in last 3 hours
Engineered for efficiency, the ILIX Multi CTM 7040 combines thread milling and chamfering in one tool, reducing cycle time and tool changes. Its two-flute design supports smooth chip evacuation and stable cutting performance, while internal cooling minimizes heat buildup, ensuring consistent thread quality in aluminum, alloy steel, and soft metals.
Multi CTM 7040 Thread Milling Cutter 4H-6H 6G-7G Tolerance ILIX
The ILIX Multi CTM 7040 provides aggressive metal removal capability suitable for high-speed machining environments. Advanced carbide construction ensures durability and wear resistance, while integrated countersinking eliminates secondary finishing operations. Designed for metric threads from small to medium diameters, it offers reliable performance with improved surface finish and dimensional accuracy.
Features
Overview

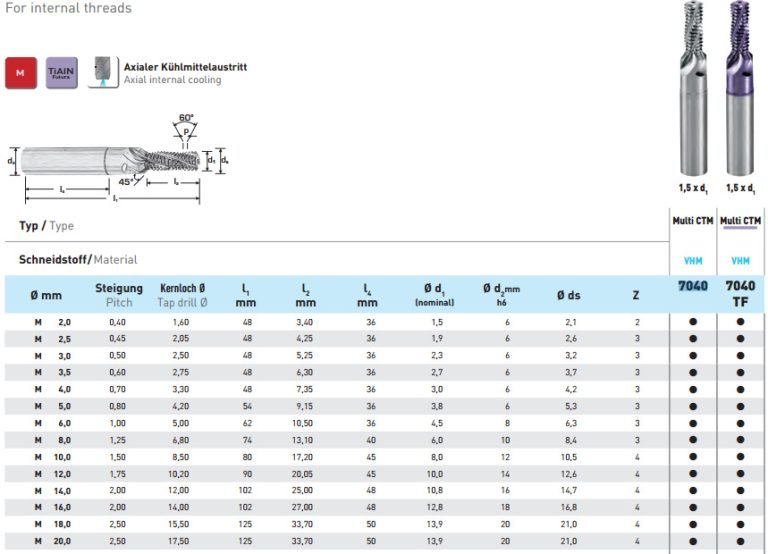

| Specification | Details |
|---|---|
| Product Name | Multi CTM 7040 Thread Milling Cutter |
| Brand | ILIX |
| Tool Material | Solid Carbide (VHM / Tungsten Carbide) |
| Flute Design | 2 Flutes |
| Cooling | Internal coolant channels |
| Thread Standard | ISO Metric (DIN) |
| Tolerance Range | 4H–6H / 6G–7G |
| Helix Angle | Approx. 27° |
| Diameter Range | Approx. M2 – M20 (depending on model) |
| Applications | Aluminum, alloy steel, soft metals, general machining |
| Functions | Thread milling and countersinking |
