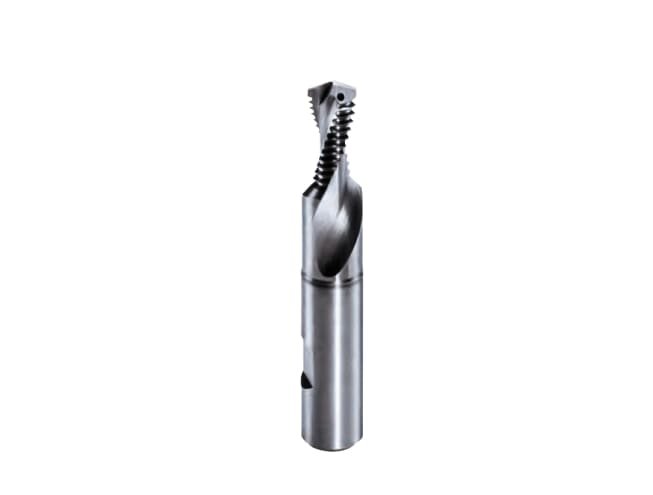

Multi DTM 6940 Thread Milling Cutter DIN 6535 HB ILIX
The Multi DTM 6940 thread milling cutter from ILIX is a multifunction solid carbide tool designed for drilling, threading, and chamfering in a single operation. Featuring internal axial coolant channels and DIN 6535 HB shank standard, it delivers high precision ISO metric threads with improved chip evacuation and reduced machining time across various materials.
39 people are viewing this product right now
🔥 4 items sold in last 3 hours
Engineered with advanced tungsten carbide grades, the ILIX Multi DTM 6940 provides excellent durability and cutting performance for ISO metric coarse threads within 4H–6H and 6G tolerances. Its two-flute chamfered step geometry allows combined holemaking and deburring, making it an efficient alternative to conventional tapping processes in modern machining environments.
Multi DTM 6940 Thread Milling Cutter DIN 6535 HB ILIX
The ILIX Multi DTM 6940 offers enhanced productivity through integrated countersinking and threading capability, minimizing tool changes and setup time. Internal coolant supply supports efficient heat reduction and chip removal, enabling stable machining in aluminum, alloy steels, and soft metals while achieving superior surface finish and consistent thread quality in demanding applications.
Features
Overview
| Specification | Details |
|---|---|
| Product Name | Multi DTM 6940 Thread Milling Cutter |
| Brand | ILIX |
| Tool Material | Solid Carbide (Tungsten Carbide) |
| Flute Design | 2 Flutes (chamfered step) |
| Cooling | Internal axial coolant |
| Thread Standard | ISO Metric (DIN 13) |
| Shank Standard | DIN 6535 HB |
| Diameter Range | Approx. 3 – 16 mm (depending on model) |
| Application Materials | Aluminum, alloy steel, soft metals, and similar materials |
| Functions | Drilling, thread milling, countersinking / chamfering |
