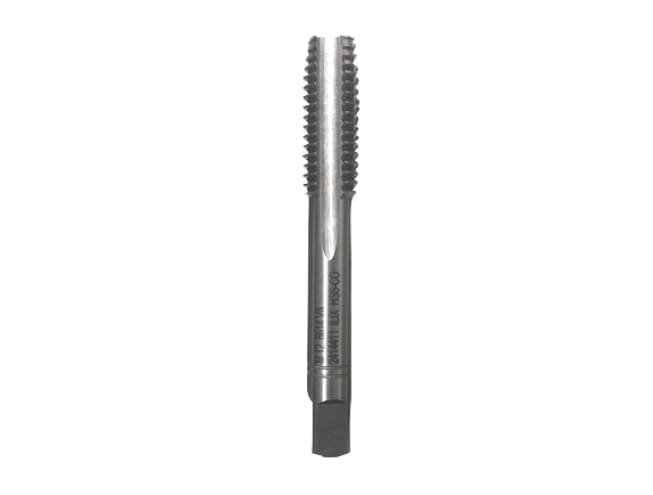

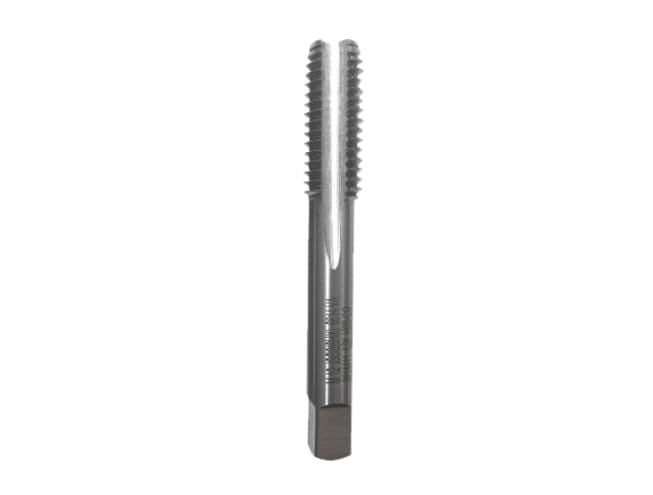

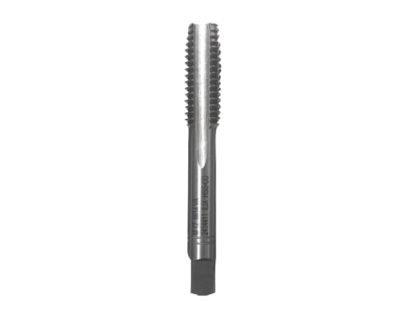

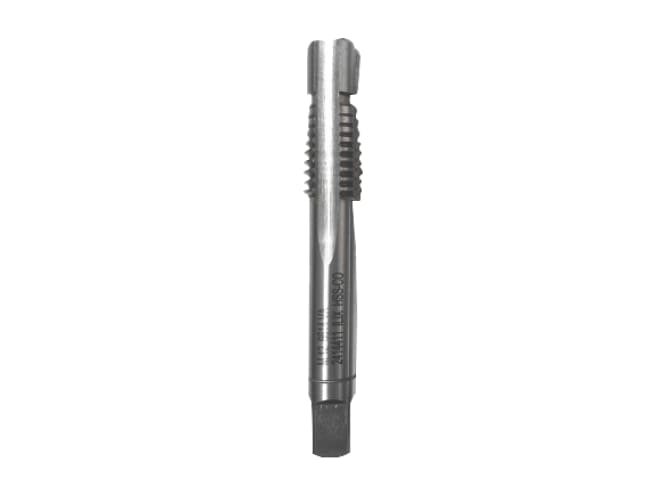

6614 Hand Tapping Bit VA DIN 352 ILIX
The ILIX 6614 Hand Tapping Bit VA DIN 352 is designed for precise manual thread cutting in stainless steel and corrosion-resistant materials. Manufactured from high-quality HSS, it provides excellent wear resistance and durability. The DIN 352 standard ensures compatibility with hand tapping applications, delivering reliable performance for maintenance, workshop, and industrial machining tasks.
29 people are viewing this product right now
🔥 7 items sold in last 3 hours
Engineered for accuracy and long service life, the ILIX 6614 hand tap features optimized flute geometry for efficient chip evacuation and reduced cutting torque. Suitable for through and blind holes, it ensures smooth thread formation. The tool is ideal for stainless steel machining, offering consistent results in demanding threading operations.
6614 Hand Tapping Bit VA DIN 352 ILIX
The ILIX 6614 VA hand tap complies with DIN 352 specifications and is typically supplied in sets including taper, intermediate, and finishing taps. Its robust HSS construction enhances toughness and resistance to heat. Designed for professional use, it supports precise threading in workshops, production environments, and maintenance applications across multiple industries.
Features
Spesification
Ø | Pitch | Tap drill | l1 | l2 | d2 h9** | a h12 | 6615 |
M2 | 0,4 | 1,6 | 36 | 8 | 2,8 | 2,1 | • |
M2,2 | 0,45 | 1,75 | 36 | 9 | 2,8 | 2,1 | • |
M2,3* | 0,4 | 1,9 | 36 | 9 | 2,8 | 2,1 | • |
M2,5 | 0,45 | 2,05 | 40 | 9 | 2,8 | 2,1 | • |
M2,6* | 0,45 | 2,1 | 40 | 9 | 2,8 | 2,1 | • |
M3 | 0,5 | 2,5 | 40 | 11 | 3,5 | 2,7 | • |
3* | 0,6 | 2,4 | 40 | 11 | 3,5 | 2,7 | • |
M3,5 | 0,6 | 2,9 | 45 | 13 | 4 | 3 | • |
M4 | 0,7 | 3,3 | 45 | 13 | 4,5 | 3,4 | • |
M5 | 0,8 | 4,2 | 50 | 16 | 6 | 4,9 | • |
M6 | 1 | 5 | 50 | 19 | 6 | 4,9 | • |
M7 | 1 | 6 | 50 | 19 | 6 | 4,9 | • |
M8 | 1,25 | 6,8 | 56 | 22 | 6 | 4,9 | • |
M10 | 1,5 | 8,5 | 70 | 24 | 7 | 6,2 | • |
M12 | 1,75 | 10,2 | 75 | 29 | 9 | 7 | • |
M14 | 2 | 12 | 80 | 30 | 11 | 9 | • |
M16 | 2 | 14 | 80 | 32 | 12 | 9 | • |
M18 | 2,5 | 15,5 | 95 | 40 | 14 | 11 | • |
M20 | 2,5 | 17,5 | 95 | 40 | 16 | 12 | • |
16.0 | 115 | 58 | 16.0 | • | |||
16.5 | 119 | 60 | 16.5 | • | |||
17.0 | 119 | 60 | 17.0 | • | |||
17.5 | 123 | 62 | 17.5 | • | |||
18.0 | 123 | 62 | 18.0 | • | |||
18.5 | 127 | 64 | 18.5 | • | |||
19.0 | 127 | 64 | 19.0 | • | |||
19.5 | 131 | 66 | 19.5 | • | |||
20.0 | 131 | 66 | 20.0 |
