Multiplexer Unit M-Bus Sylvac

Enhance functionality with D400S or D300S units, ensuring robust data communication via RS485 protocol for reliable transmission. Easy installation on DIN rail for secure setup.

Features

Versatile Compatibility

Choose from a range of M-Bus Interfacing Modules designed for various applications, including capacitive, inductive, Heidenhain, and digimatic probes.

Enhanced Functionality

The M-Bus modules are perfect companions for our D400S or D300S units, unlocking additional capabilities and expanding your measurement possibilities.

Reliable RS485 Protocol

Benefit from the RS485-based protocol for robust and efficient data communication, ensuring reliable transmission and compatibility with a wide range of systems.

Easy Installation

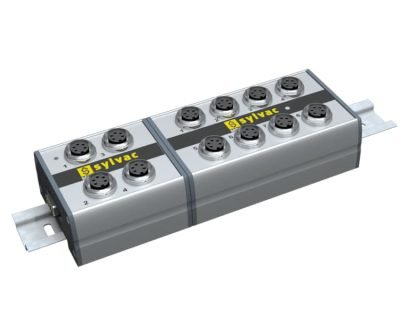

The M-Bus modules can be conveniently mounted on a DIN rail, simplifying the installation process and providing a secure and organized setup.

Sturdy and Durable Construction

Our M-Bus modules are built with a robust construction, guaranteeing long-lasting performance and reliability even in demanding industrial environments

	804-2104	804-2108	804-2122	804-2114
EAN	7640125680010	7640125680034	7640125680188	7640125680164

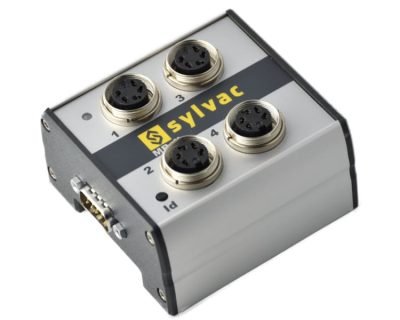

Model	MB-4C	MB-8i	MB-2S	MB-4D
Instrument type	Sylvac capacitive probes	Inductive ¹	Heidenhain probes (11µmA/1VPP)	Digimatic
Compatibility	D300S & D400S
Dimensions (L x h x w) (mm)	107x42x74	131x44x74	82x43x74	107x39x74
Weight (kg)	0.2	0.3	0.2	0.2
Inputs	4	8	2	4
Case	Anodized aluminium profile
Output data	RS 485

	804-2140	804-2160	804-2170	804-2180
EAN	7640125680218	7640125027716	7640125681215	7640125681239

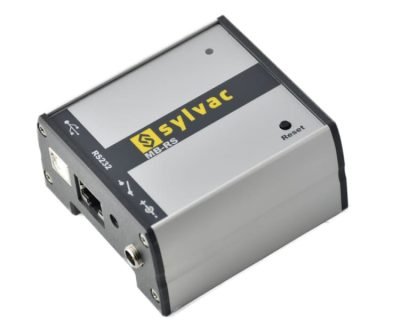

Model	MB-PS	MB-RS	MB-TP	MB-BT
Instrument type	Power-Supply	Computer	Temperature sensor input PT100 and Thermocouple	Instruments with Bluetooth® wireless technology
Compatibility	D300S, D400S & D70	Computer	D300S, D400S & D70
Dimensions (L x h x w) (mm)	52x42x74	82x39x74	52x51x74	52x39x74
Weight (kg)	0.2	0.2	0.1	0.1
Inputs	12-30 VDC	254	1 / 1	8
Case	Anodized aluminium profile
Output data	RS 485

	804-2190	804-2132	804-2133
EAN	7640125681246	7640125695533	7640125695496
Model	MB-AG	MB-NET	MB-RO
Instrument type	Plug gauges and Air gauges	Ethernet connector for server sending	Relay output
Compatibility	D400S & D70
Dimensions (L x h x w) (mm)	52x64x74
Weight (kg)	0.15
Inputs	1
Case	Anodized aluminium profile
Output data	RS 485
