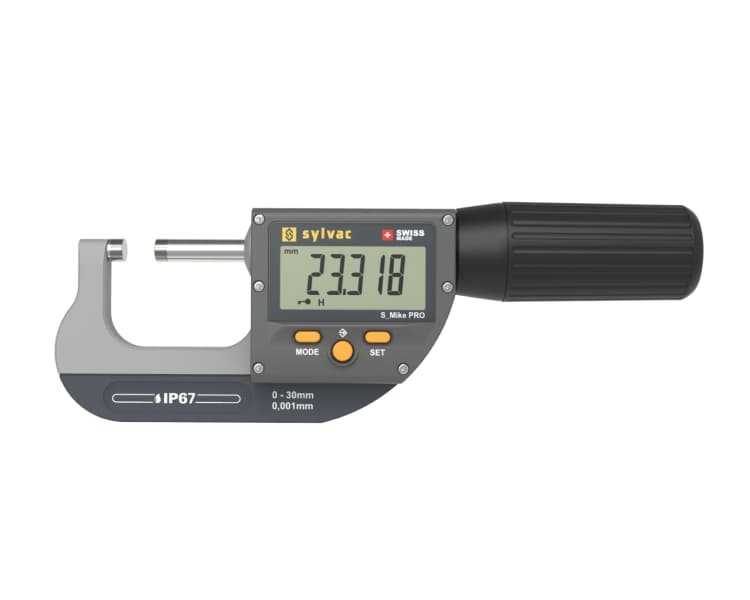

Professional Micrometer S_MIKE Pro Cylindrical Ø6.5 Sylvac

The Sylvac Professional Micrometer S_MIKE Pro Cylindrical Ø6.5 provides high-speed, accurate measurements across five ranges with a 0.001 mm resolution.

Features

High-Speed and Accurate Measurements

This micrometer comes in 5 measuring ranges (0-30mm, 30-66mm, 66-102mm, 100-136mm, 125-161mm), with a display resolution of 0.001 mm.

Stable, Reliable and Repeatable

Precise and solid system featuring a ratchet that cancels operator influence and guarantees excellent repeatability, micrometer ideal for quality control and precision manufacturing.

Convenient Features

Proximity data output and SIS Absolu System: Automatically wakes up when spindle is moved, enters sleep mode after 10 minutes of inactivity, position memorized in sleeping mode.

Built to Last

5mm cylindrical anvils made of tungsten carbide. This micrometer is designed to withstand heavy-duty work with a protection rating of IP67, even when connected.

Complete Set

A set of 3 micrometers with a measuring range of 0-102 mm is available. Each instrument comes with a UKAS certificate and all rings, ensuring accuracy and reliability.

Flexible and Cost Saving

With 2 selectable measuring forces 5N/10N (versions 803-030X) in one apparel.

Overview

	803-0300	903-0600	903-1000	903-1360	903-1600
EAN	7640125715507	7640125714180	7640125714197	7640125697872	7640125697889
Measuring range (mm)	0-30	30-66	66-102	100-136	125-161
Max. Error MPEյ¹ (µm)	3	4	5	7	8
Repeatability² (µm)	1	1	1	2	2

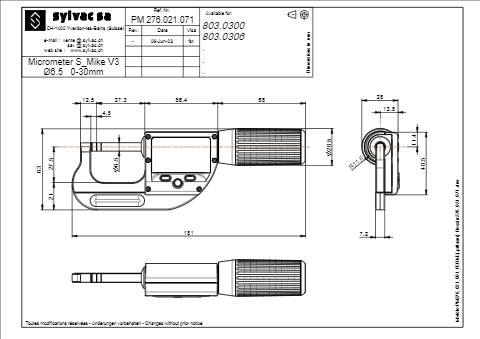

Anvils types	Ø6.5
A (mm)	37.3	73.3	109.3	143.3	168.3
B (mm)	27.5	43	60	95	110
C (mm)	68	74	74	74	74
D (mm)	12.5	13.5	14.5	19.5	19.5
E (mm)	63	86	106	151	169
F (mm)	181	230	269	306	339
G (mm)	7.2	9	9	9	9
Output data	USB / RS 232
Prot. rating accor. to IEC 60529	IP67 even connected
Setting by PC	⬤
Adjustable measuring force	5N / 10N	10N
Non-rotating spindle	⬤
Fast movement	⬤
Preset function	⬤
Smart Inductive Sensor	⬤
