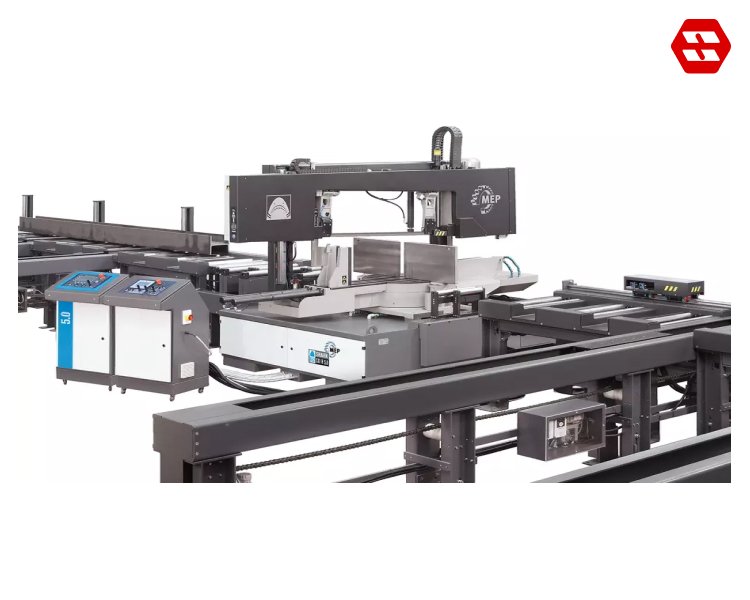

SHARK 652 SXI H 5.0

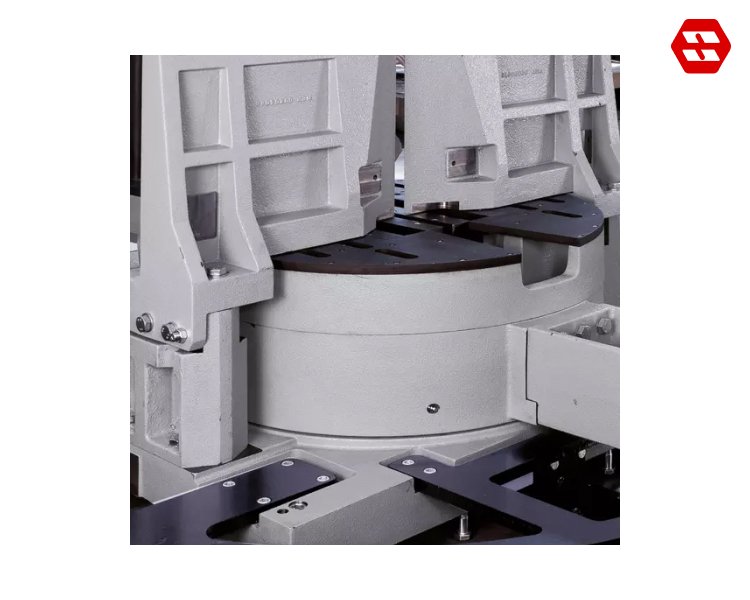

Cast-Iron Structure

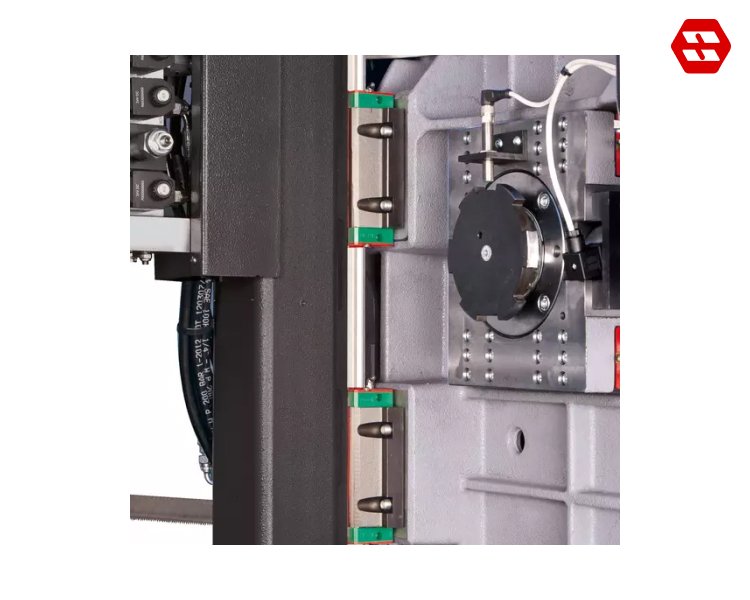

Motion of The Saw Head on Linear Guides With Preloaded Ball Screw Slides

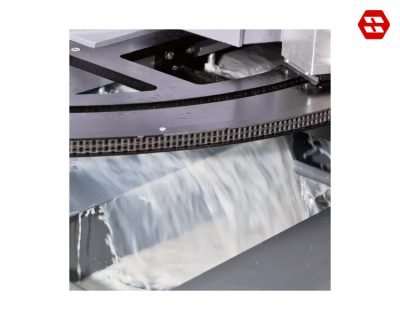

Design Allowing Complate Recovery of The Coolant

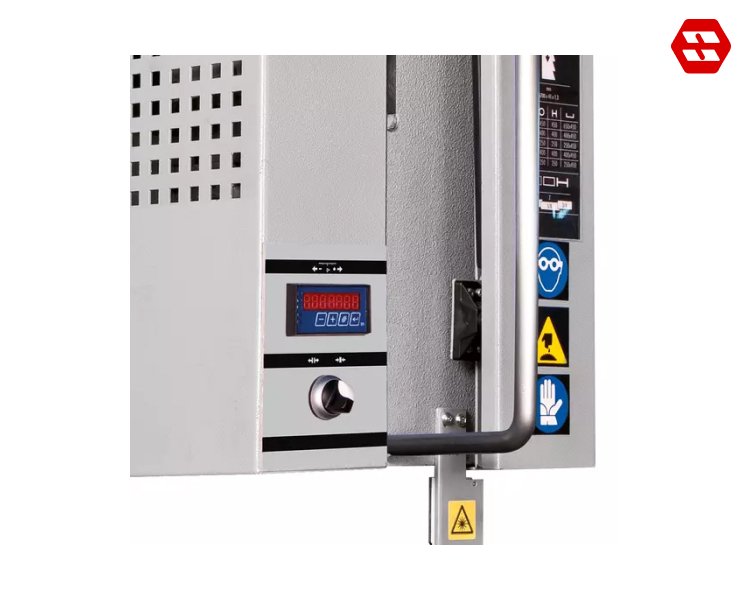

Saw Head Automatic Mitering

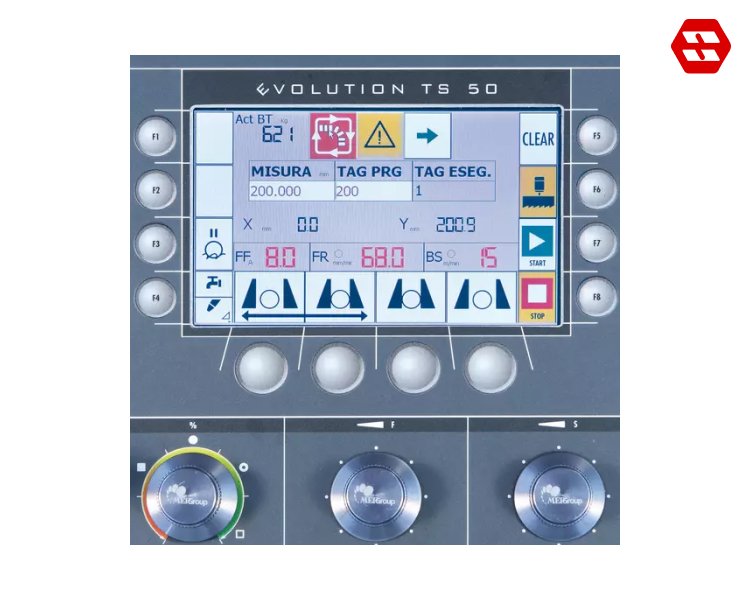

Saw Head Automatic Mitering
Technical Data Bandsaw Machine Semi Automatic
SHARK 652 SXI H 5.0
MEP
CUTTING RANGE
 |  | | |
| 0° | 450 mm | 450 mm | 650 x 450 mm |
| +45° | 400 mm | 400 mm | 400 x 450 mm |
| +60° | 250 mm | 250 mm | 250 x 450 mm |
| – 45° | 400 mm | 400 mm | 400 x 450 mm |
| – 60° | 250 mm | 250 mm | 250 x 450 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 660 mm |
| Band size | 6700 x 41 x 1.3 mm |
| Blade motor power | 9.2 Kw – Three-phase |
| Blade rotation speed | 15 ÷ 150 m/min |
