The E-TOUCH Portable Marking System uses an electromagnetic striker with a tungsten carbide stylus to mark directly into materials with impact force adjustable over 9 levels. It includes a touch-screen interface usable even when wearing gloves, offers memory for 20,000 marking files, and supports USB file transfer. Weighing 1.9 kg and dimensions 210×125×220 mm, it’s designed to be lightweight yet durable, with three interchangeable front plates for flat, curved, or restricted surfaces.

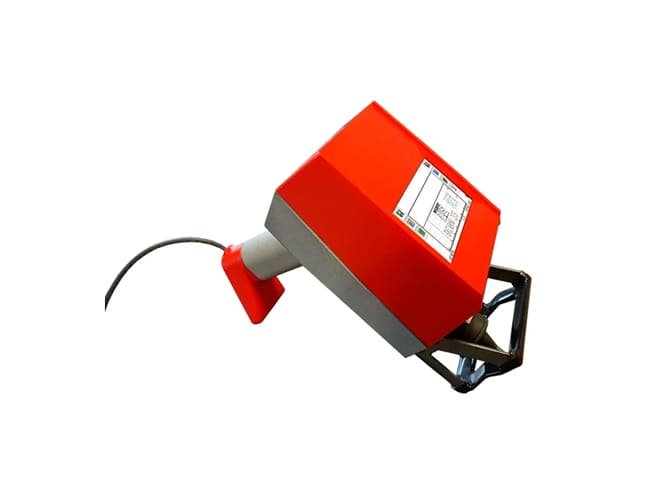

SIC Marking E-TOUCH Portable Marking System

Need a marking tool that’s tough but easy to handle? The E-TOUCH from SIC Marking gives you exactly that. Lightweight and compact, but built of metal inside so it won’t break easily. You can preview your mark on the screen, snap on the front plate that fits the surface, and mark text, logos or 2D codes fast. Great when you want portability without giving up power.

Features

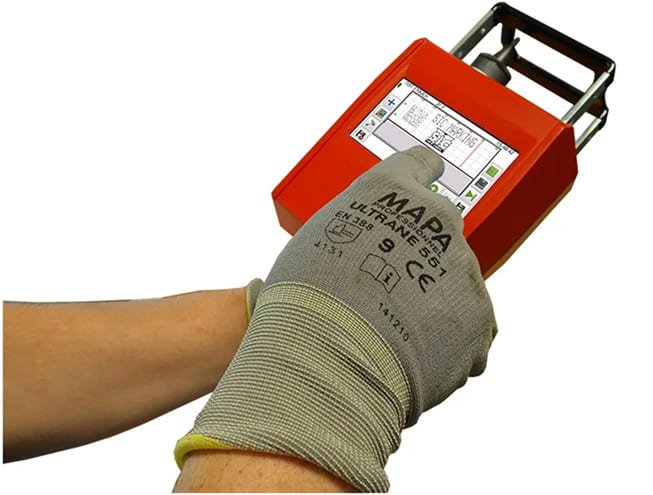

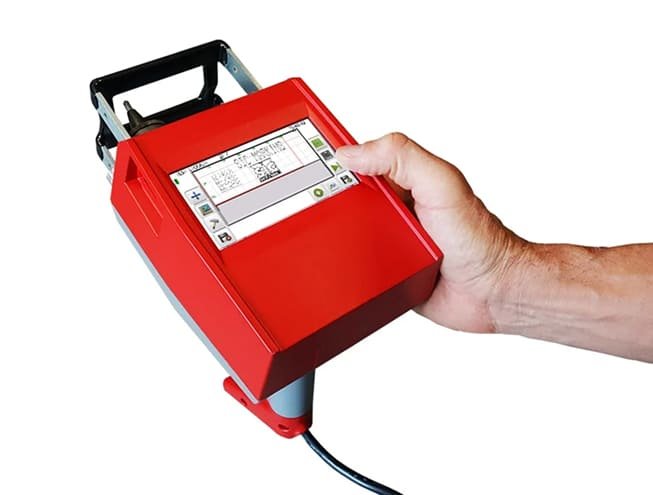

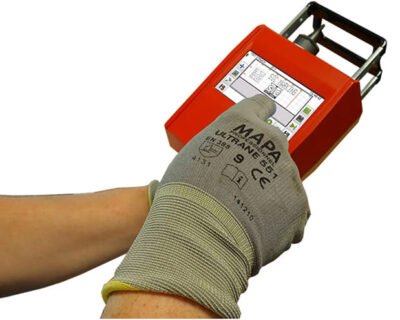

Touch Screen & See-&-Mark Preview

The screen shows the final marking layout (1:1 full-scale preview) so you can confirm positioning, content, and alignment before marking. The screen works with or without gloves.

Lightweight & Compact Build

At ~1.9 kg and dimensions 210×125×220 mm, it's easier to handle, move around, or use on difficult-to-reach workpieces.

Interchangeable Front Plates

Comes with 3 front plates: standard for flat surfaces, magnetic plate for metal parts, and a reduced / smaller plate for recesses or tight spaces. These improve adaptability to different surfaces without needing external fixtures.

File Capacity & Memory with USB Transfer

The system holds up to 20,000 marking files, has 100 MB internal memory, supports loading logos or custom files via USB stick, and allows on-device editing of parameters. Good for varied and recurring marking tasks.

Precision & Adjustable Marking Depth

Minimum character height 1 mm, resolution between dots 0.05 mm, impact force adjustable between 1-9 levels, and maximum marking depth up to 0.3 mm depending on material. This allows flexibility across materials from soft metals and plastics to harder ones.

Overview

Specification	Detail
Product Name	SIC Marking E-TOUCH Portable Marking System
Marking Window	60 × 25 mm
Dimensions	210 × 125 × 220 mm
Weight	1.9 kg
Cable Length	5 m power / connection cable
Stylus Material	Tungsten carbide
Screen	HD color touch screen, 95 × 55 mm
Power Consumption	100 W
Power Supply	100-240 VAC, 50/60 Hz
Marking File / Memory	Up to 20,000 files; 100 MB memory.
Marking Types Supported	Alphanumeric text, serial number / variable text, logos, DataMatrix / 2D codes, angular/radial/linear marking.
Font Support	Courier, 4×6, OCR-Bold, OCRA, OCR etc.
Character Minimum Size	1 mm
Impact Force Levels	1-9
Maximum Marking Depth	Up to ~ 0.3 mm (material-dependent)
Resolution between Dots	0.05 mm
