Designed for demanding industrial traceability needs, the e1 P123 delivers electromagnetic dot-peen marks using a carbide stylus. It supports deep marking — even on hardened steels — preserving readability through coatings or paint. The marking gun is paired with the independent e1 controller (no PC required for normal operation), which offers onboard programming, membrane keyboard, USB for file transfers, and robust protection against harsh environments. With its wide window and ergonomic design, it handles large, heavy or oversized parts comfortably.

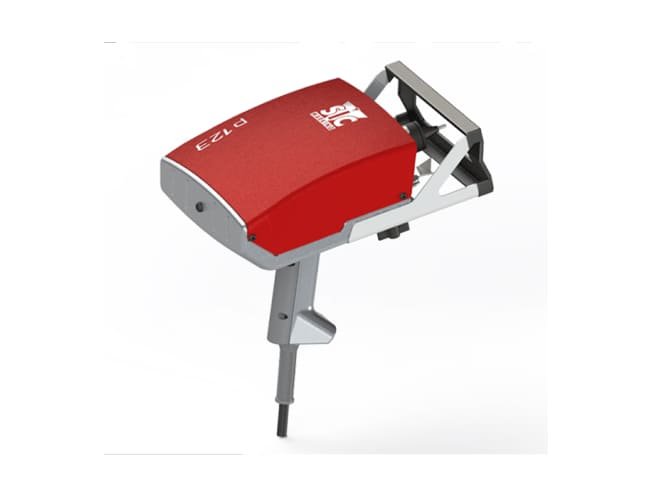

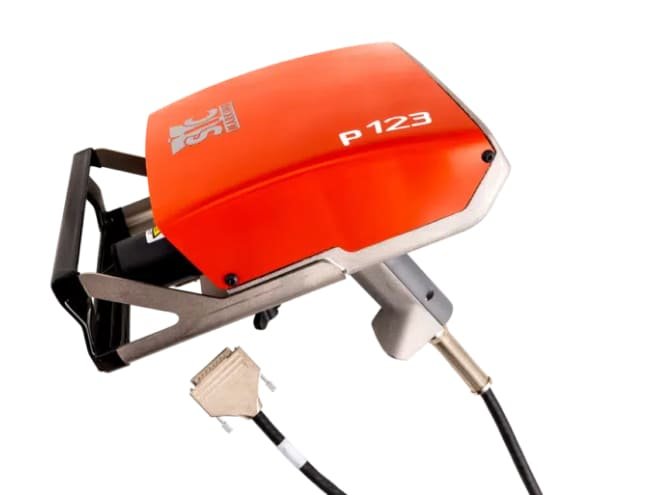

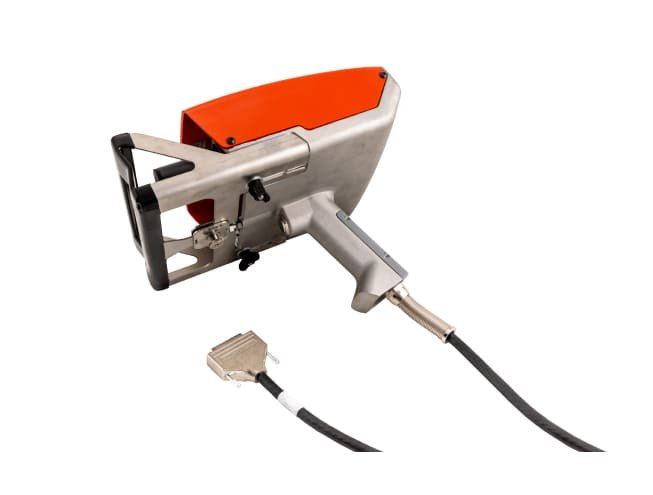

SIC Marking e1 P123 Portable Marking System

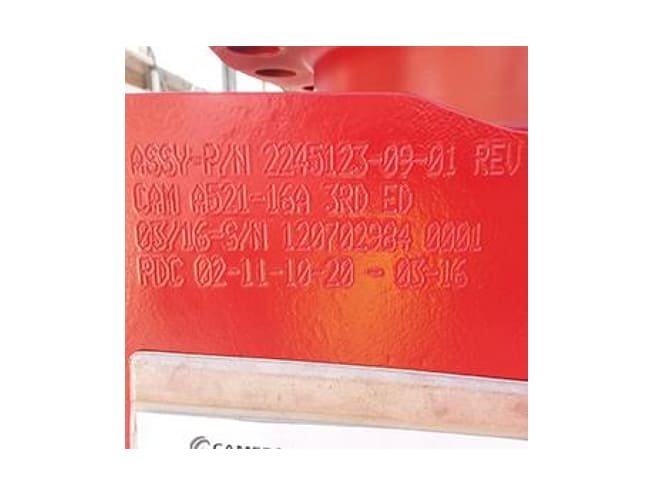

Want permanent, readable markings on big parts without fuss? The SIC e1 P123 is built tough for that. Big window to mark bigger characters, powerful strike for deep marks, and a controller that’s rugged but easy to use. Ideal for marking logos, serials, or 2D codes on steel, castings, or painted surfaces. Portable enough to bring to the job, built enough to last.

Features

Large Marking Window (120 × 25 / 40 mm)

Allows marking of large characters, logos, or data matrices without having to reposition for each section. Helps for readability and speed.

Deep Marking Capability

Optional “deep marking” version (e10DP123) with boosted striker assembly and “booster” board enables permanent depth even after surface treatments or coatings.

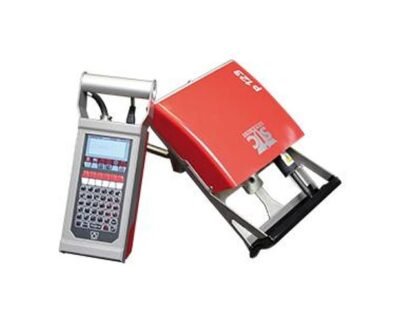

Independent e1 Controller

Controller is standalone (not permanently tied to PC), uses USB for file/update transfer, has protected membrane keyboard & HD color display; rugged design with minimal openings.

Robust Build & Stylus Material

The marking gun uses an alloy cast body, stainless front module, and carbide stylus 60 mm for durability and reliable marking on hard materials.

Flexible & Portable Use

Despite large capability, it is designed for portability: ergonomic handle, balanced gun + controller unit, options for longer cables, large window, suitable for marking large or heavy parts.

Overview

Specification	Detail
Product Name	SIC Marking e1 P123 Portable Marking System
Marking Type	Dot peen (electromagnetic)
Marking Window	120 × 25 mm (standard) or 120 × 40 mm (option)
Dimensions (Marking Gun)	277 × 207 × 218 mm
Weight (Gun)	4.1 kg
Stylus Material	Tungsten carbide, 60 mm stylus
Controller Type	e1 Controller (standalone) with USB, membrane keyboard, protected display
Power / Electrical	Single phase, 90-240 V AC, 50-60 Hz; approx 300 W consumption
Memory / File Capacity	> 2000 marking files; this includes alphanumeric, logos, date/time, codes etc.
Character Size & Resolution	Font size from ~0.1 mm to large size (~99 mm) depending on material and setup; dot spacing resolution ~0.05 mm between dots
Impact Force Levels	9 levels of adjustable force
Marking Depth	Up to ~0.5 mm depending on force, material, and whether deep marking option is used
Interfaces / Connectivity	USB, possibly RS232 / RS422 / optional Ethernet etc.; file transfer via USB stick etc.
