The C303 delivers unmatched speed and precision using electromagnetic marking. Designed with a large marking window, LED illumination, and integrated counter, it handles all materials, including hardened steel. With the e10 controller and easy USB connectivity, it supports flexible marking patterns such as linear, radial, angular, and mirrored.

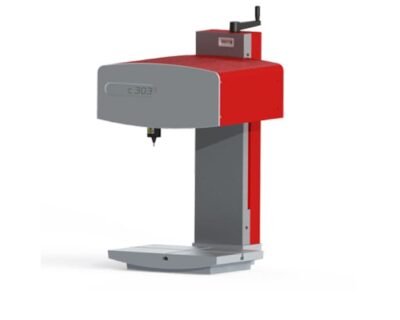

SIC Marking e10 c303 Dot Peen Marking Machine

Ideal for industrial use, the C303 ensures efficient and accurate marking on complex parts. Its electromagnetic system, smart controller, and robust build make it suitable for automotive, aerospace, and heavy industries, ensuring clear traceability and reliable performance even in demanding environments.

Features

Electromagnetic Marking Technology

Ensures precise and fast marking on flat, curved, and irregular surfaces, with consistent results across different material types.

Wide Marking Window (300 × 150 mm)

Provides a large working area for both small and large components, increasing operational flexibility.

Adaptable to All Materials

Capable of marking plastics, metals, and even hardened steel up to 62 HRC, making it a universal marking solution.

Smart e10 Controller

Equipped with a graphic display, QWERTY keyboard, and user-friendly software, enabling easy programming and seamless file transfer via USB.

Durable and Cost-Effective Design

Built for industrial environments with sealed electronics, LED lighting, and optional upgrades for deep marking or additional axis control, ensuring long-term reliability at a reasonable cost.

Overview

Mechanical Features

Kategori	Item	Spesifikasi
Mechanical Features	Marking Window	300 × 150 mm
	Weight	30 kg
	Dimensions	385 × 350 × 704 mm
	Stylus	Carbide 60 mm

Electronic Features

Kategori	Item	Spesifikasi
Mechanical Features	Marking Window	300 × 150 mm
	Weight	30 kg
	Dimensions	385 × 350 × 704 mm
	Stylus	Carbide 60 mm

Steering Software

Kategori	Item	Spesifikasi
Steering Software	Marking Files	More than 2000
	Memory	7110 Ko
	Alphanumeric Characters	Serial Number, Date Coding
	Logos	Creation from PC software
	Datamatrix	Up to 348 characters, 48 × 48 dots
	Fonts	Arial, Courier, OCR, OCRA
	Style	Angular, Radial, Inverse, Mirror
	Speed	Up to 5 characters/sec
	Character Size	0.1 mm – 99 mm
	Impact Force	9 adjustable levels
	Depth	Up to 0.5 mm
	Resolution Between Dots	0.05 mm
	Maximum Stylus Stroke	Up to 8 mm
	Work Shift Management	10 shifts
	Password Protection	3 security levels
	Historical Function	Password protected
	Maintenance Assistance	Auto-diagnostic component
	Languages Available	17

Communication

Kategori	Item	Spesifikasi
Steering Software	Marking Files	More than 2000
	Memory	7110 Ko
	Alphanumeric Characters	Serial Number, Date Coding
	Logos	Creation from PC software
	Datamatrix	Up to 348 characters, 48 × 48 dots
	Fonts	Arial, Courier, OCR, OCRA
	Style	Angular, Radial, Inverse, Mirror
	Speed	Up to 5 characters/sec
	Character Size	0.1 mm – 99 mm
	Impact Force	9 adjustable levels
	Depth	Up to 0.5 mm
	Resolution Between Dots	0.05 mm
	Maximum Stylus Stroke	Up to 8 mm
	Work Shift Management	10 shifts
	Password Protection	3 security levels
	Historical Function	Password protected
	Maintenance Assistance	Auto-diagnostic component
	Languages Available	17
