The EC1 combines durability with versatility, featuring a height-adjustable column that enables accurate marking on various part geometries, including flat, convex, or concave surfaces. Its solenoid-actuated stylus requires no pneumatic system, reducing maintenance while ensuring precise, deep, and durable markings. Ideal for small to medium-sized parts across a wide range of industrial applications.

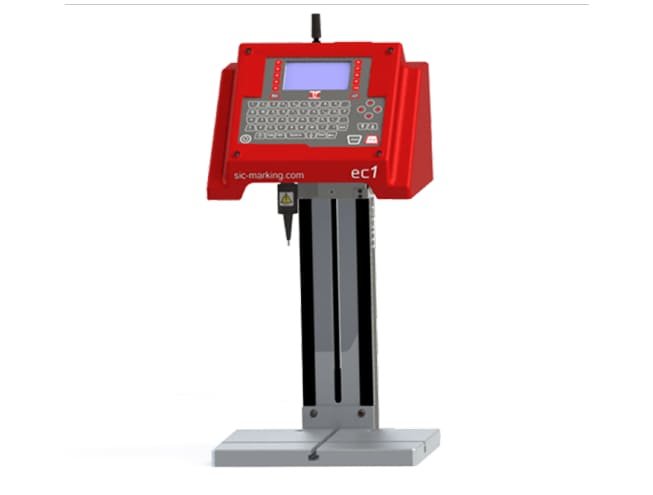

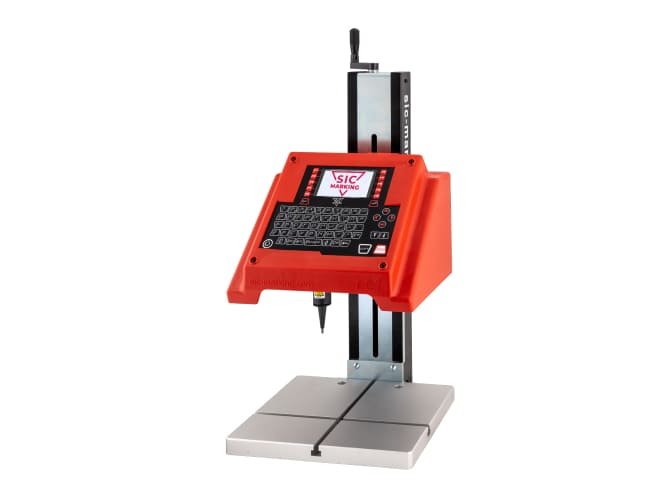

SIC Marking ec1 Dot Peen Marking Machine

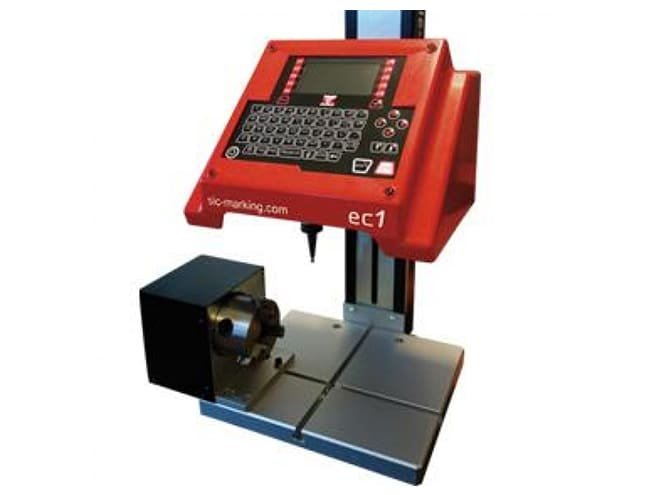

With its integrated controller, the EC1 offers intuitive operation via a color display, membrane keyboard, and USB connectivity. Users can quickly create or edit marking files, upload logos, or generate DataMatrix codes directly on the controller. Combined with optional accessories such as the rotary D-axis, it provides exceptional flexibility and productivity.
Features
Overview
| Specification | Details |
|---|---|
| Marking Window | 120 × 100 mm |
| Column Stroke | 280 mm (up to 300 mm with 60 mm stylus) |
| Stylus | Tungsten carbide |
| Maximum Material Hardness | 62 HRC |
| Weight | 16 kg |
| Controller Display | 95 × 54 mm color LCD |
| Keyboard | QWERTY membrane keyboard |
| Power Consumption | 100 W, 110-240 V AC |
| File Memory | >100 MB (over 1000 marking files) |

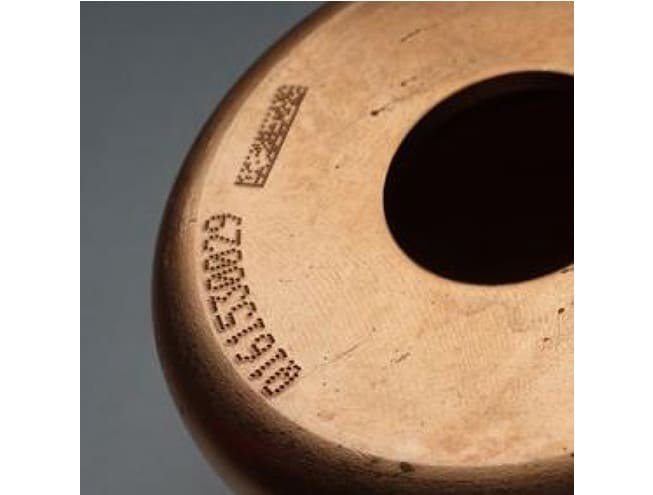

| Supported Marking | Text, logos, 2D DataMatrix, linear/radial/angular patterns |
| Character Size Range | 0.1 mm – 99 mm |
| Marking Depth | Up to 0.3 mm |
| Resolution (dot spacing) | 0.22 mm |
| Security | 2 password levels |
| Supported Languages | 15 |
| Connectivity | USB, RS-232 |
| Optional Accessories | Rotary D-axis, magnetic plate holder, foot pedal |
