Engineered for reliability and efficiency, the L-Box Laser System provides fast, precise marking for metals and plastics. Its air-cooled fiber laser ensures low maintenance and stable output, while the intuitive user interface allows operators to program alphanumeric, Data Matrix, QR codes, or logos with minimal setup time, optimizing productivity in demanding manufacturing environments.

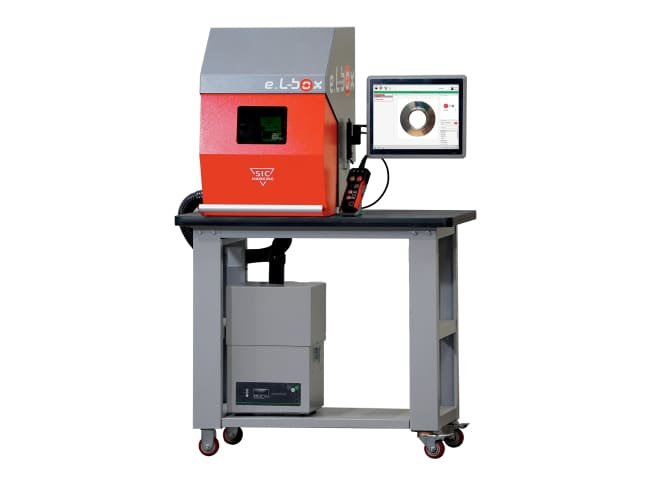

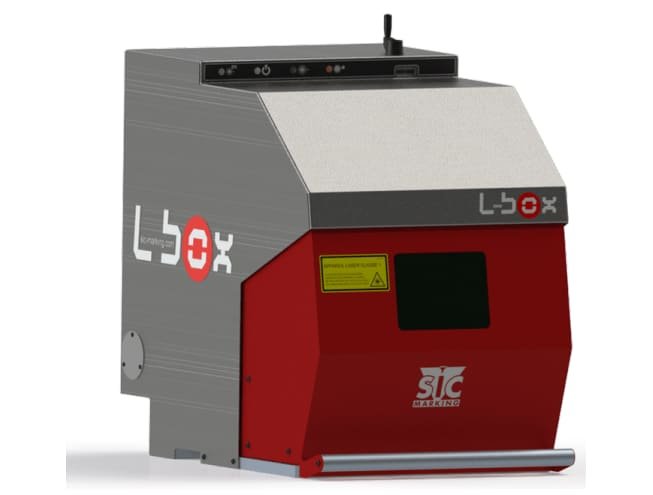

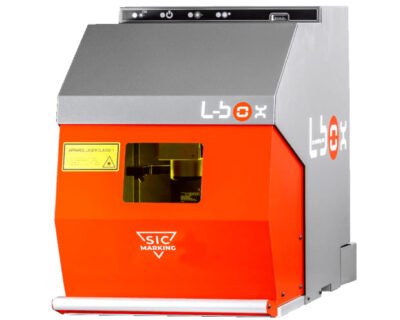

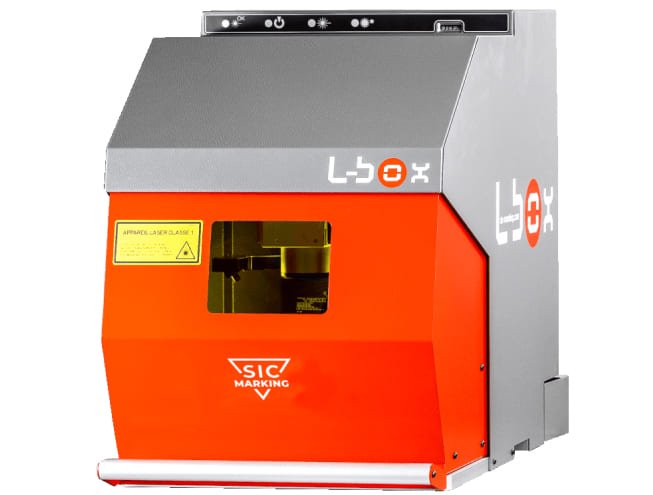

SIC Marking L-Box Laser System
The L-Box Laser System delivers exceptional marking versatility, supporting various part sizes and complex geometries. Safety-focused and Class 1 certified, it incorporates a robust enclosure and ergonomic design. With integrated software for traceability, barcode management, and automated marking cycles, this system ensures consistent, high-quality identification in aerospace, automotive, and industrial applications.
Features
Overview
| Specification | L-Box Laser System |
|---|---|
| Laser Type | Ytterbium-doped fiber laser |
| Wavelength | 1064 nm |
| Average Power | 20 W (optional 30 W) |
| Pulse Mode | Variable pulsed operation |
| Marking Window | 100 × 100 mm (optional 170 × 170 mm) |
| Maximum Part Height | 235 mm |
| Maximum Part Length | 500 mm |
| Machine Dimensions | 505 × 770 × 765 mm |
| Machine Weight | 70 kg |
| Resolution | Up to 0.05 mm per dot |
| Font Options | Arial, Courier, OCR, OCRA |
| Marking Depth | Up to 0.3 mm depending on material |
| Control Interface | PC software with USB/Ethernet connectivity |
