The SISMA EASY Laser Marking System is a compact, all-in-one desktop laser marking machine that delivers precise, permanent marks on metals and alloys using advanced Ytterbium (Yb) laser sources. It features high-precision motorized Z-axis movement and integrated software for file and parameter control.

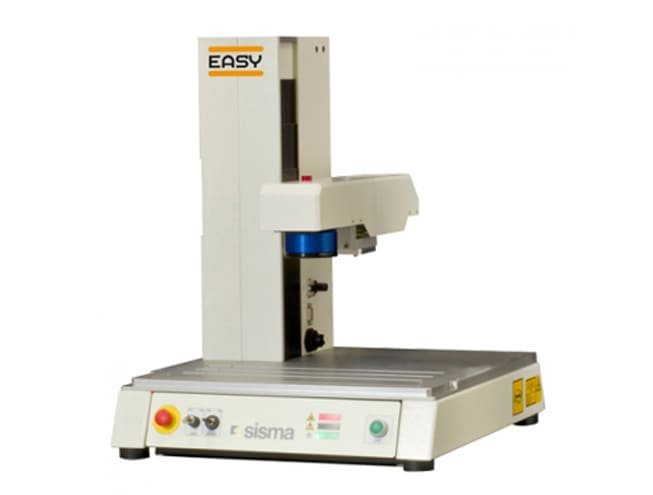

Sisma EASY Laser Marking
The SISMA EASY is an intuitive desktop laser marking solution developed in Italy with high reliability and repeatability. With robust construction, user-friendly controls, and optional vision and pattern-matching software, it suits small batch marking, intricate design work, and quality traceability tasks.
Features
Overview
| Specification | Typical Value / Notes |
|---|---|
| Product Series | SISMA EASY Laser Marking System (Class I or Class IV options) |
| Laser Technology | Ytterbium (Yb) fiber pulsed laser, Nd:YAG variants depending on model |
| Average Laser Power | 6 W, 10 W, 20 W, 40 W (and up to 55 W in higher models) |
| Wavelength | 1064 nm nominal (varies by laser) |
| Repetition Rate | 1–1000 kHz (varies by model/power) |
| Pulse Width | 10–500 ns depending on power and configuration |
| Beam Quality (M²) | ≤ 1.5–1.8 depending on configuration |
| Beam Spot Diameter | 20 µm typical (F160 focusing) |
| Z-Axis Stroke | 290 mm motorized precision axis |
| Repeatability | 0.02 mm |
| Max Workpiece Weight | 25 kg (desktop class) |
| Cooling System | Forced-air cooling |
| Power Supply | 230 V AC, 50/60 Hz (single-phase) |
| Dimensions | 560 × 760 × 770 mm (desktop enclosure) |
| Weight | 75–85 kg depending on enclosure version |
| Typical Applications | Metal marking, serial codes, barcodes, logos, traceability marks. |
| Berat | 85 kg |
