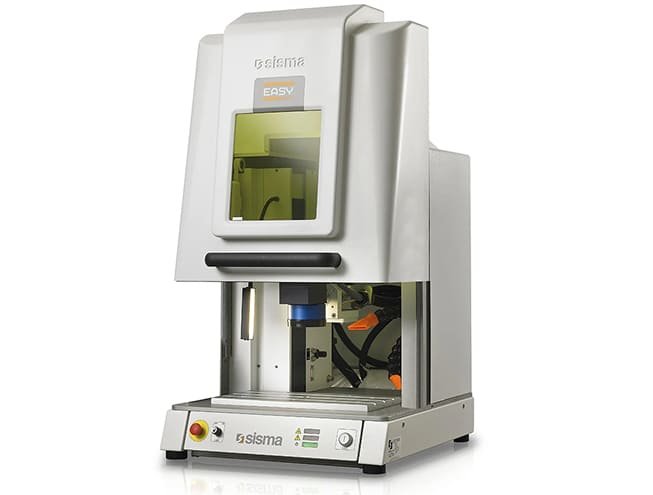

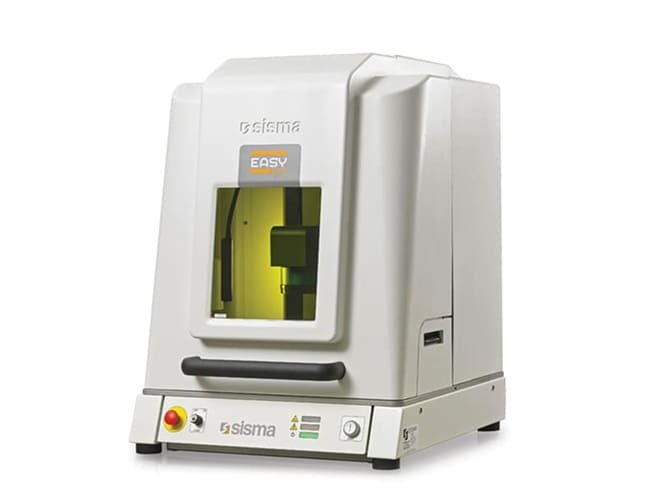

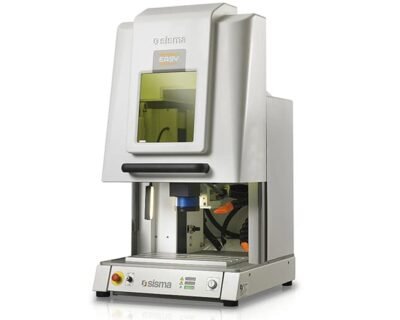

Sisma Laser Marking EASY 1st Class Series

The EASY is a compact “all-in-one” desktop laser marking system. It features a high-precision, high-speed motorized Z-axis and a wide range of laser sources. The system is highly flexible and digitally advanced, with integrated software developed by SISMA for managing complex marking processes and files.

15 people are viewing this product right now

🔥 9 items sold in last 3 hours

Category: Laser Marking

Brand: Sisma Estimated delivery:May 27, 2026 - May 29, 2026

Description

The EASY is an “all-in-one” desktop laser marking system designed for both precision and flexibility. It is a compact unit equipped with a high-precision, high-speed motorized Z-axis. With a wide range of available laser sources (20 W, 30 W, 40 W, and 55 W), it can be easily integrated with a variety of accessories and a coaxial vision system, making it an ideal solution for diverse marking needs.

Sisma Laser Marking EASY 1st Class Series

The EASY system is equipped with advanced software entirely developed by SISMA, providing an intuitive solution for managing files and defining parameters for even the most complex machining operations. Its flexibility is enhanced by the ability to be integrated with all SISMA accessories, a coaxial vision system (CVS), and Pattern Matching software. The system’s high-precision and high-speed motorized Z-axis ensures accurate and efficient results.

Features

Compact Design

The system's small size and "all-in-one" configuration make it ideal for desktop use.

Flexible Laser Sources

Available with multiple laser sources (20 W, 30 W, 40 W, and 55 W) to suit various application requirements.

High-Precision Z-Axis

Equipped with a motorized Z-axis that offers both high precision and high speed.

Advanced Software

Utilizes integrated software, entirely developed by SISMA, for easy file management and parameter definition for complex tasks.

High Integrability

The system can be integrated with all SISMA accessories, a coaxial vision system (CVS), and Pattern Matching software for enhanced functionality.

Overview

Technical Data	200F EP	300F	500F EP	7000F
Active Material	Yb	Yb	Yb	Yb
Average Laser Power	20W	30W	50W	55W
Wavelength	1059 – 1064 nm	1080 – 1095 nm	1059 – 1064 nm	1080 – 1095 nm
Working Frequency	1 – 1000 kHz	30 – 80 kHz	1 – 1000 kHz	70 – 140 kHz
Impulse Duration	6-500 ns	50-200 ns	6-500 ns	50-200 ns
Peak Power	> 10 kW	8.5 kW	> 10 kW	> 10 kW
Pulse Energy	0.03 – 1 mJ	1 mJ	0.03 – 1 mJ	0.8 mJ
Beam Quality	< 1.6	< 1.6	< 1.6	< 1.6
Cooling System	Air	Air	Air	Air
Z-axes Stroke	290 mm	290 mm	290 mm	290 mm
Z-axes Precision	0.05 mm	0.05 mm	0.05 mm	0.05 mm
Repeatability	0.02 mm	0.02 mm	0.02 mm	0.02 mm
Max Piece Weight	25 kg	25 kg	25 kg	25 kg
Power Supply	230 V ± 15% – 50/60 Hz 1ph	230 V ± 15% – 50/60 Hz 1ph	230 V ± 15% – 50/60 Hz 1ph	230 V ± 15% – 50/60 Hz 1ph
Power Absorption	0.8 kW	0.8 kW	0.8 kW	0.8 kW
Dimensions (WxDxH)	560 x 760 x 770 mm	560 x 760 x 770 mm	560 x 760 x 770 mm	560 x 760 x 770 mm
Weight	85 kg	85 kg	85 kg	85 kg
