Sisma Laser Engraving BIG SMARK BSS 3D
The Sisma Laser System is a precise laser engraving machine for deep 2D and 3D engraving. The system has a 350 mm range with 3-axis control, a high-resolution camera for object centering, and is managed by SLC software.
45 people are viewing this product right now
🔥 10 items sold in last 3 hours

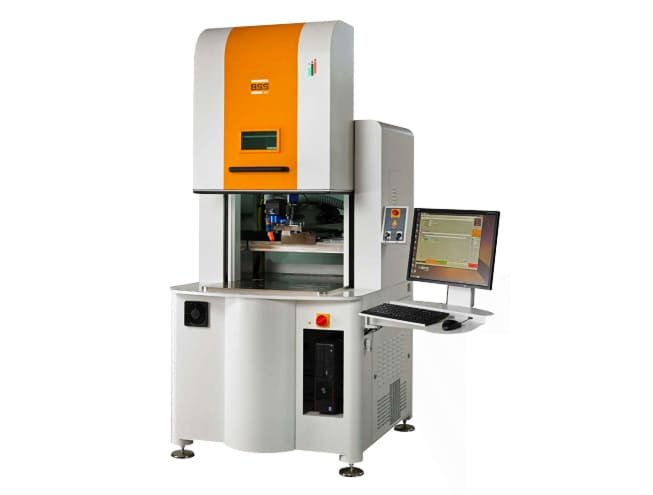

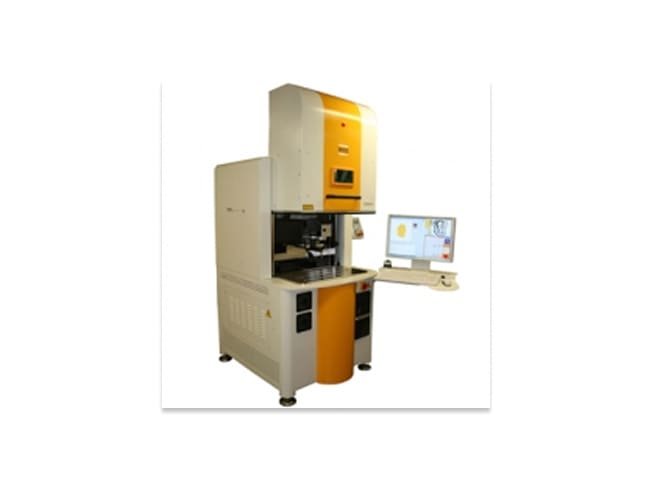

The Sisma Laser System is an advanced laser engraving machine designed specifically for deep engraving of 2D and 3D materials, such as on molds, punches, and electrodes. The system uses a laser source that moves on a 3-axis portal with a range of 350 mm. With a high-resolution camera for object centering, this machine ensures exceptional precision and accuracy in every working cycle.
Sisma Laser Engraving BIG SMARK BSS 3D
This laser system is controlled by a Windows PC with SISMA Laser Controller (SLC) software, which was entirely developed by SISMA. The software allows for easy file management with support for formats such as SVG, BMP, JPG, and PLT. The machine offers additional options like a rotary axis and a fume aspirator, making it highly flexible for various production needs.
Features
Overview
| Specification | Detail |
| Wave Length | 1064 nm |
| Focals | F100, F163, F254, F420 mm |
| Working Area | 600 x 800 x 450h mm |
| Repeatability | +/- 0.02 mm |
| Camera | CCD 768(h) x 494(V) lines |
| Cooling System | Water |
| Power Supply | 230V +/- 15% 50/60Hz 1ph |
| Dimensions | 1900 x 1190 x 1795h mm |
| Weight | 960 kg |
