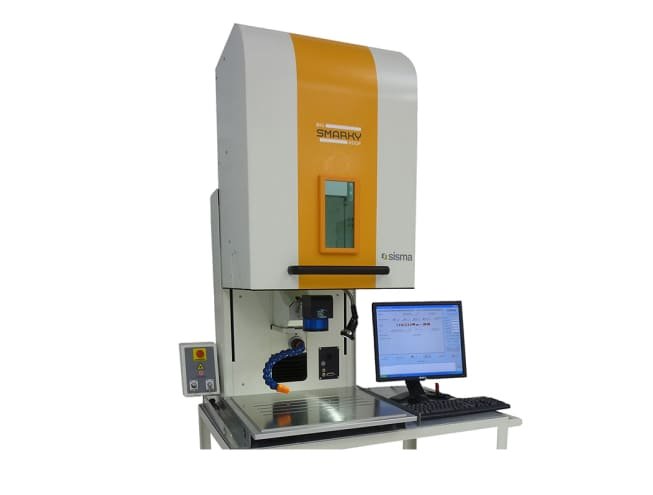

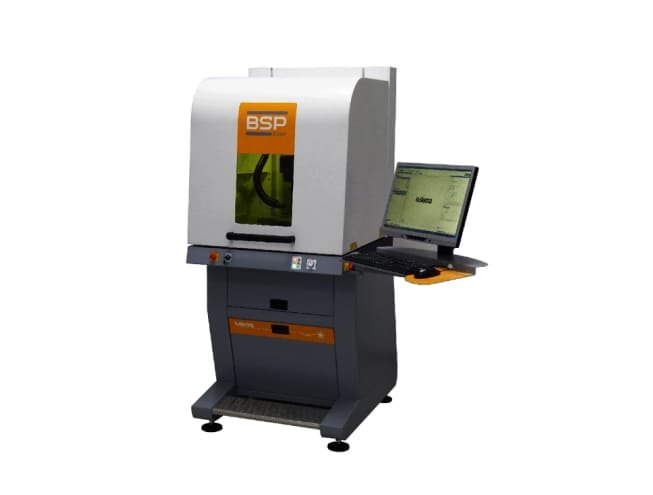

Sisma Laser Marker BIG SMARK BSP 200F – 700F

The Sisma BIG SMARK BSP is a compact and stable 3-axis laser marking system with a large working chamber. The machine can load workpieces up to 20 kg and has a maximum working volume of 300 x 300 x 300 mm. Its granite structure guarantees durability and precision.

24 people are viewing this product right now

🔥 5 items sold in last 3 hours

Category: Laser Marking

Brand: Sisma Estimated delivery:May 27, 2026 - May 29, 2026

Description

The Sisma BIG SMARK BSP is a compact and stable 3-axis laser marking system. It is equipped with a large working chamber and a door that opens 490 mm on three sides. This machine can work within a maximum volume of 300 x 300 x 300 mm and load workpieces up to 20 kg in weight. Its granite structure ensures durability, precision, and long-term stability. A wide range of Sisma Ytterbium laser sources are compatible for installation.

Sisma Laser Marker BIG SMARK BSP 200F - 700F

The Sisma BIG SMARK BSP 3-axis laser marking system is distinguished by its high productivity and flexibility. The optional coaxial vision system enables precise and efficient workflows. Thanks to the large working chamber and the door that opens on three sides, loading workpieces up to 20 kg is easy. The robust granite structure ensures long-lasting stability.

Features

Stable Construction

The machine has a granite structure that ensures high precision, stability, and durability.

Large Working Chamber

The working chamber measures 300x300x280 h mm and can hold workpieces up to 20 kg.

Flexible Loading

The door opens 490 mm on three sides, which makes it easier to load large or unwieldy parts.

Versatile Laser Sources

The machine is compatible with a wide range of Sisma Ytterbium laser sources.

Optional Accessories

An optional coaxial camera system is available for increased productivity and flexibility.

Overview

TECHNICAL DATA	200F	200F EP	300F	400F	500F	700F
Average Output Power [W]	20	20	30	40	50	70
Wave length [nm]	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm
Laser Technology	Yb	Yb	Yb	Yb	Yb	Yb
Repetition Rate Range [KHz]	1-500	1-1000	1-500	1-1000	1-500	1-500
Pulse Width [ns]	260/40	3-500	260/40	10-240	250/40	260/40
Max Pulse Energy [mJ]	1/0.21	0.03-1	1/0.21	0.16-1.33	1/0.21	1/0.21
M2 ≤	1.6	1.6	1.6	1.6	1.6	1.6
Guide Laser	Class 2M Red Laser Diode; λ=650 nm; 2 mW
Working area	300x300x280 h mm
Dimensions (L x W x H)	775x1088x1800 mm (1500x1088x1800 mm with monitor arm)
Weight	500 Kg
Temperature Range	10°C to 35°C, non-condensing
Cooling System	Active Air Cooling
X-Y axis stroke [mm]	300
Z axis stroke [mm]	360
4th axes	Optional
Focal	F100, F160 (std), F254, F330
Power supply	230V, 50/60 Hz 1ph – 1KW
