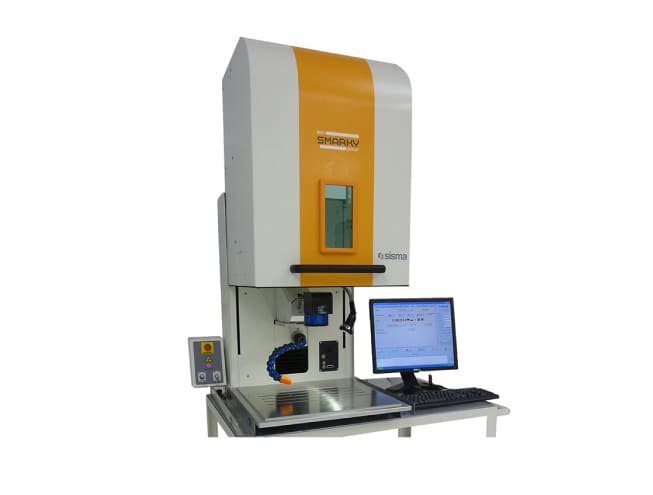

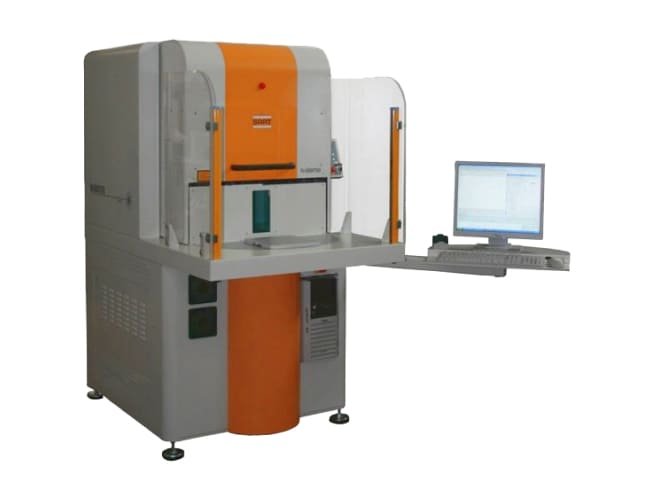

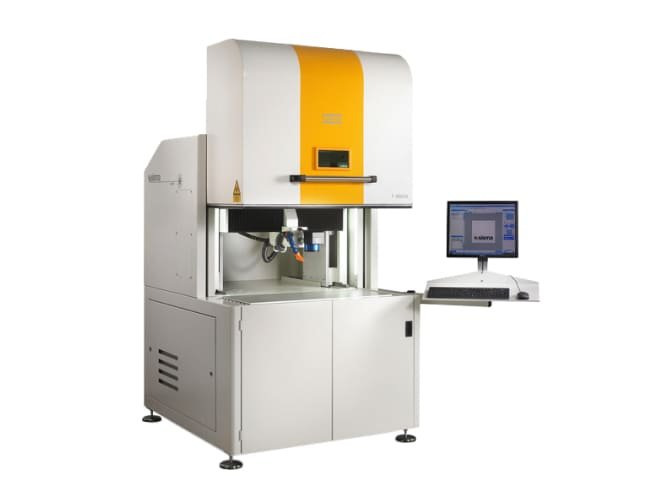

Sisma Laser Marking BIG SMARKY 10W

The Sisma BIG SMARKY 10W is an advanced laser marking and engraving system designed for metals, jewelry, plastics, and solid materials. Featuring a wide 500 × 500 mm working chamber and intuitive SLC software, it allows precise engraving, marking, and cutting operations. Integration with coaxial vision systems ensures high precision and automated workflows.

42 people are viewing this product right now

🔥 3 items sold in last 3 hours

Category: Laser Marking

Brand: Sisma Estimated delivery:May 27, 2026 - May 29, 2026

Description

BIG SMARKY offers versatile laser engraving, marking, and cutting with full SISMA accessory compatibility. Its three-sided open chamber and wide dimensions simplify access to workpieces, while optional rotary axes, dragging systems, and dynamic measuring devices support automated operations. Control is via Windows PC with SLC-PRISMA software, accepting SVG, DXF, BMP, JPG, HPGL, and PLT files for flexible project management.

Sisma Laser Marking BIG SMARKY 10W

The Sisma BIG SMARKY series integrates advanced laser sources, intuitive software, and versatile automation options for professional engraving and marking applications. Capable of handling metals, plastics, jewelry, and other solid materials, it includes features such as coaxial vision systems, pattern matching software, high-precision rotary axes, and fume extraction. The system allows programmable pulse control, high-speed engraving, and seamless integration with production workflows.

Features

Versatile Material Compatibility

Works on metals, jewelry, plastics, and solid materials

Wide Working Chamber

500 × 500 mm with max height 530 mm, open on three sides for easy access.

Digitally Advanced Software

SLC-PRISMA software for file management and marking parameter definition.

High-Precision Laser Options

Nd:YAG, Yb fiber, or Nd:YVO4 lasers with spot sizes down to 12 μm.

Automation Ready

Compatible with coaxial vision systems, rotary axes, and pattern matching for automated workflows.

Overview

Model	100	200F	200F EP	300F	400F	500F	700F	GREEN
Laser source	Nd:YAG	Yb	Yb	Yb	Yb	Yb	Yb	Nd:YVO4
Wavelength	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	1064 nm	532 nm
Average laser power	10 W	20 W	20 W	30 W	40 W	50 W	70 W	10 W
Pulse frequency	1–200 KHz	1–500 KHz	1–1000 KHz	1–500 KHz	1–1000 KHz	1–500 KHz	1–500 KHz	1–300 KHz
Pulse duration	30 ns	260/40 ns	3–500 ns	260/40 ns	10–240 ns	250/40 ns	260/40 ns	30 ns
Max pulse energy	0.5 mJ	1/0.21 mJ	0.03–1 mJ	1/0.21 mJ	0.16–1.33 mJ	1/0.21 mJ	1/0.21 mJ	0.25 mJ
Beam quality	≤1.8 M²	≤1.6 M²	≤1.6 M²	≤1.6 M²	≤3.5 M²	≤1.6 M²	≤1.6 M²	≤1.2 M²
Laser spot diameter	25 μm	20 μm	20 μm	20 μm	40 μm	20 μm	20 μm	12 μm
Z axis stroke	400 mm	400 mm	400 mm	400 mm	400 mm	400 mm	400 mm	2000 mm/s
Guide laser	Class 2M, Red Laser Diode, λ=650 nm; 2 mW
