Sisma Laser Marking EASY OEM Series

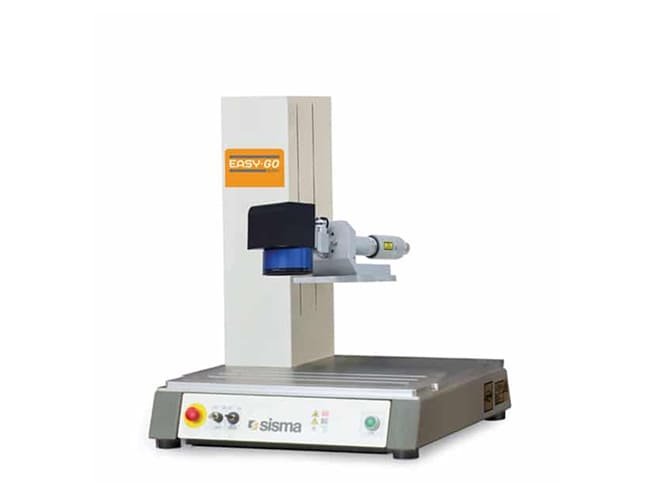

The Sisma EASY GO OPEN is a compact and advanced desktop laser marking system. Equipped with a motorized Z axis, it’s easy to operate. Its integrated software simplifies file and parameter management. This system is adaptable with additional accessories to enhance its capabilities, making it an ideal choice for a variety of applications.
14 people are viewing this product right now
🔥 10 items sold in last 3 hours
Sisma Laser Marking EASY OEM Series
Available with 20W and 30W laser sources, the Sisma EASY GO OPEN can be adapted to various marking needs. It can be integrated with SISMA accessories, such as the spindle and plate dragger, to expand its functionality. The in-house developed software by SISMA offers a comprehensive solution for managing marking parameters, ensuring precise results even for the most intricate jobs.
Features
Overview
| Technical Data | 200F | 300F |
| Active Material | Yb | Yb |
| Average Power | 20 W | 20 W |
| Wavelength | 1064 – 1085 nm | 1064 – 1085 nm |
| Working Frequency | 20-60 kHz | 30-60 kHz |
| Impulse Duration | < 120 ns | < 120 ns |
| Peak Power | 8.5 kW | 8.5 kW |
| Pulse Energy | 1 mJ | 1 mJ |
| Beam Quality | <1.8 M² | <1.8 M² |
| Z Axes Stroke | 290 mm | 290 mm |
| Z Axes Precision | 0.05 mm | 0.05 mm |
| Repeatability | 0.02 mm | 0.02 mm |
| Max Piece Weight | 25 kg | 25 kg |
| Power Supply | 230 V ± 15% 50/60 Hz 1ph | 230 V ± 15% 50/60 Hz 1ph |
| Cooling System | Air | Air |
| Power Absorption | 0.8 kW | 0.8 kW |
| Dimensions (LxDxH) | 560 mm x 760 mm x 770 mm (1120 mm with open door) | 560 mm x 760 mm x 770 mm (1120 mm with open door) |
| Weight | 85 kg | 85 kg |
