Sisma Laser Marking SARTY 10w

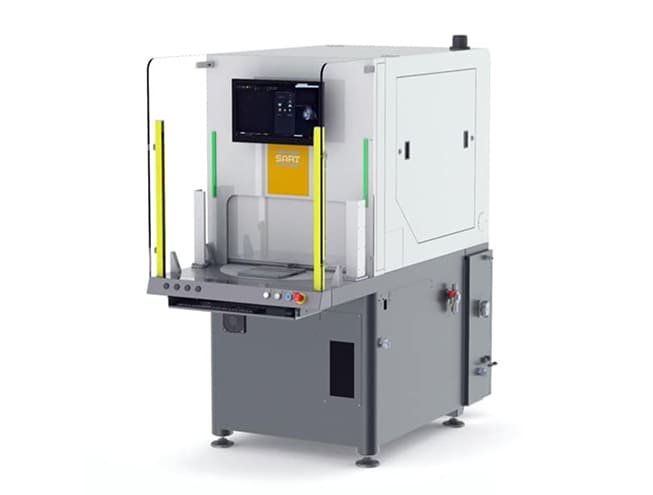

The Sisma SARTY 10W is a high-productivity laser marking and engraving system with a two-position rotating table (700 mm diameter) that allows loading/unloading during marking to minimize downtime. Its ergonomic design and SISMA software enable complex marking tasks with precision, repeatability, and ease of use.
11 people are viewing this product right now
🔥 11 items sold in last 3 hours
Sisma Laser Marking SARTY 10W
The SARTY 10W system offers precise laser marking and engraving with high throughput and minimal operator intervention. Its rotating table allows simultaneous loading/unloading of workpieces, and the ergonomic design ensures comfortable operation. The system supports multiple laser sources, advanced software for complex tasks, and integration with automation accessories for enhanced production efficiency.
Features
Overview
| Description | 200F EP | 300F | 500F EP | 700F EP | 30 CO2 | 60 UV |
|---|---|---|---|---|---|---|
| Active source material | Yb | Yb | Yb | Yb | CO2 | Nd |
| Wavelength | 1064 nm | 1064 nm | 1064 nm | 1064 nm | 10600 nm | 555 nm |
| Nominal laser power (W) | 20 W | 30 W | 30 W | 70 W | 30 W | 6 W |
| Work frequency PRF (KHz) | 1–1000 | 1–500 | 1–500 | 1–4000 | 0–100 | 0–500 |
| Laser pulse duration (ns) | 3–500 | 26–250 | 6–500 | 4–2000 | – | 12 |
| Pulse energy (mJ) | >1 | >1 | >1 | >1.2 | – | 0.06 |
| Peak power (kW) | >10 | >10 | >10 | >10 | – | 5 |
| Beam quality (M²) | <1.6 | <1.6 | <1.6 | <1.6 | <1.2 | <1.3 |
| PulseTune waveform | 40 | 2 | 38 | 37 | 1 | – |
| Cooling | Air | Air | Air | Air | Air | Air |
| Scan head size | 10 | 10 | 10 | 10 | 14 | 14 |
| Marking speed (rad/s)¹ | 12 | 12 | 12 | 31 | 11–30 | 11–30 |
| Marking speed (mm/s)¹ | 2000 | 2000 | 2000 | 5000 | 1800–7600 | 1800–7600 |
| Frequency of wobbles max (Hz)¹ | 600 | 600 | 600 | 2000 | – | – |
| Resolution (µrad) | 12 | 12 | 12 | 12 | 0.76 | 12–0.76 |
| Repeatability (RMS) (µrad) | 2 | 2 | 2 | 2 | <2 | 2 |
