Designed for precision and operator convenience, the Beta-300 Pro delivers flexible cutting methods including table feed, Z-axis and Y-axis feeding, step cutting, and chop cutting. With safety features like door safety interlocks and overload protection, it ensures secure, consistent performance under varied workloads.

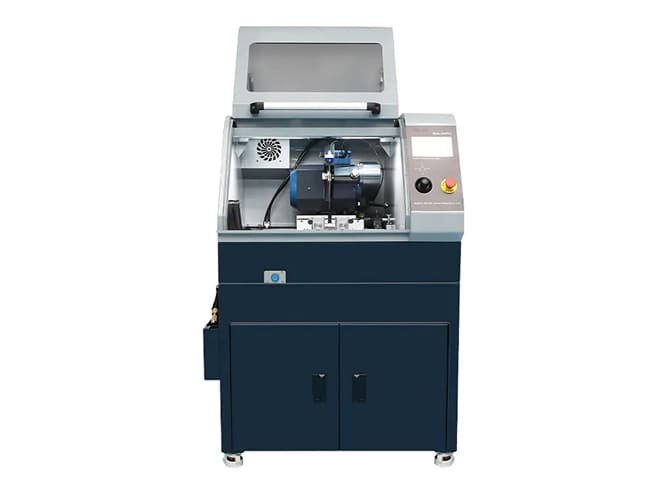

Trojan Beta-300 Pro Automatic Cut-off Machine

This automatic cutter combines speed, size, and accuracy: large cutting table, adjustable wheel speed from ~1,000-3,500 rpm, large arbor, and ample travel in all axes. The Beta-300 Pro is built for heavy-duty sectioning of large or complex samples, while reducing cycle times and operator fatigue.

Features

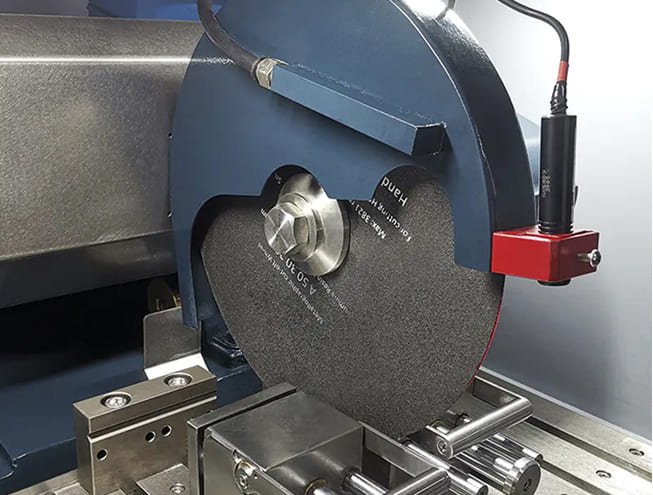

300 mm wheel diameter & heavy sample capacity

Allows large cutting wheels, enabling deeper cuts or higher capacity for large cross-section specimens.

7-inch HMI Touch Screen with Presets

Provides programmable interface with 20 optimized cutting parameter presets, enabling quick setup and repeatability.

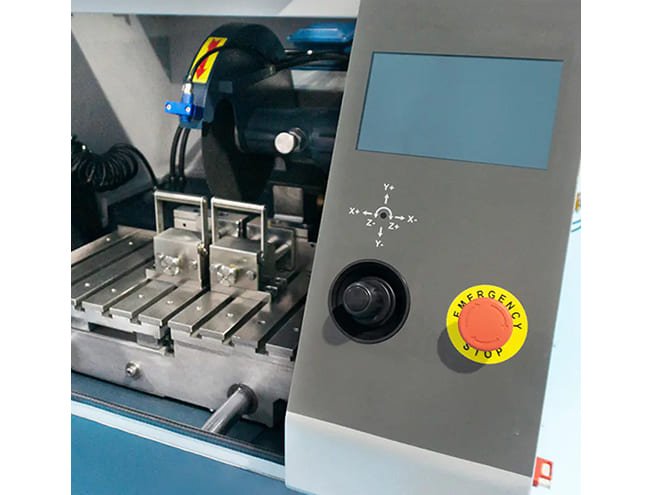

X-Y-Z Axes + Joystick Control

Enables multi-axis movement (front-back, left-right, up-down) with manual joystick override for fine positioning before automatic cutting.

Intelligent Feed Rate Adjustment by Force

Automatically adjusts feed or table movement based on preset force, improving cut surface finish and reducing sample damage.

Multiple Cutting Modes

Supports various modes such as chop cutting, table feed cutting, Z-axis feed, Y-axis pulsed feed, and step cutting—offering flexibility based on sample type and required cut style.

Overview

Parameter	Specification
Model	Trojan Beta-300 Pro Automatic Cut-off Machine
Max Wheel Diameter	300 mm
Arbor/Bore Size	32 mm
Max Cutting Capacity (Diameter)	150 mm
Max Square Section Size (HxD)	Approx. 80 × 200 mm
Z-Axis Travel (Vertical)	110 mm
Y-Axis Travel (Front-Back)	150 mm
Table / Bench Size (X-Axis)	280 × 636 mm (including open door)
Motor / Cutting Power	4 kW (depending on variant)
Wheel Speed Range	1,000-3,500 rpm
Power Supply / Input	Three phase 220V/380V or other industrial voltage (depending on country)
Cutting Modes	Chop cutting, Table feed, Z-axis feed, Y-axis pulse feed, Step cutting
Cutting Feed Rate	0.02-3 mm/s (varies with mode)
Safety Features	Emergency stop, overload protection, door safety interlock, brake on wheel/table feed
Cooling / Fluid System	Recirculating coolant (≈80-L capacity)
Dimensions (Closed / Open)	940 × 920 × 1,450 mm (open: height increases further)
Weight	355-367 kg
