The Beta-400MA offers flexible operation with joystick control over the blade and table, 3-axis movement (X, Y, Z), and programmable feed speeds. It delivers a blade speed range of 800-2000 rpm using Ø400-450 mm blades with a Ø32 mm arbor. Cooling is handled by a 130-L recirculating tank and 6-channel, high flow hoses to prevent overheating. Safety features include two-hand operation, door interlocks, emergency stop, and limit switches.

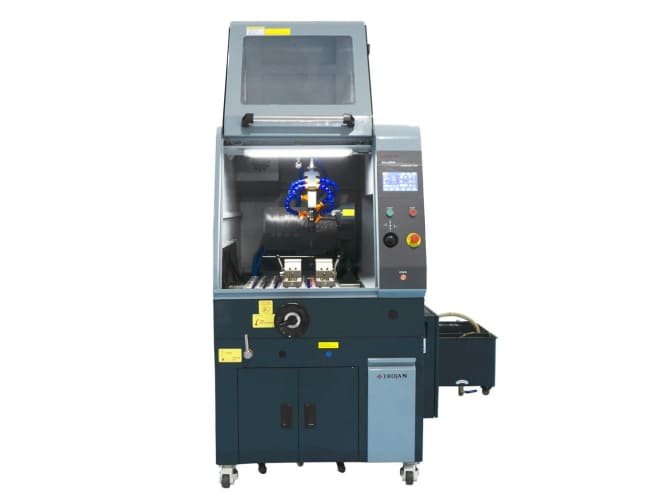

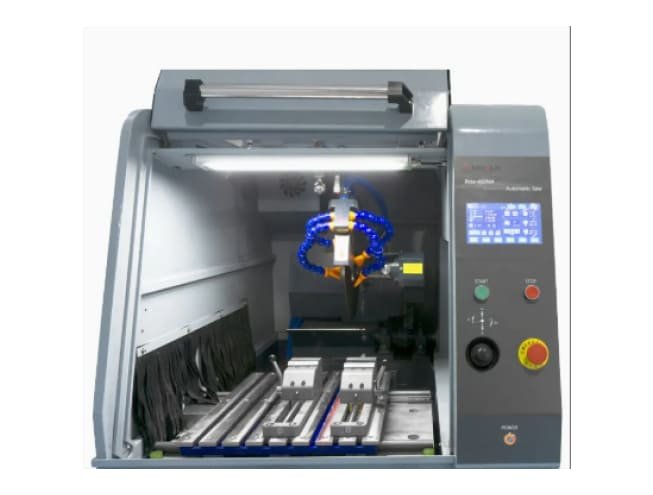

Trojan Beta-400MA Manual/Auto Cutting Machine
Cut smarter, not harder. The Trojan Beta-400MA lets you slice through tough materials with ease, whether you’re doing manual cuts or letting automation take over. Big blade, strong motor, joystick control, constant or pulsed feed, and safety built in. With cooling, ventilation, and user-friendly controls, it’s made for labs that want clean cuts and minimal fuss.
Features
Overview
| Key Feature | Description |
|---|---|
| Dual Manual / Auto Cutting Modes | Choose between manual table feed or auto-chop/Z/Y axis feed to match sample size and operator preference. |
| Blade & Speed Options | Supports Ø400-450 mm blades at speeds from 800-2000 rpm; arbor size Ø32 mm. |

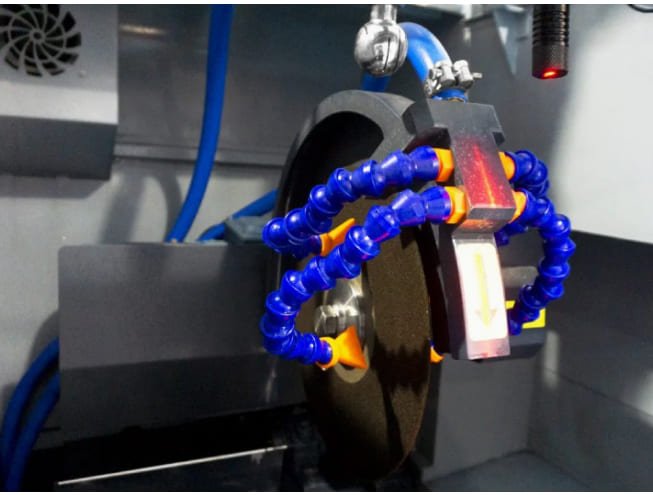

| Large Recirculating Cooling System | 130-L tank + multiple hose outlets (flow ~100 L/min) helps prevent heat damage and sample burning. |
| Safety & Control Features | Two-hand joystick operation, emergency stop, interlock (door lock), limit switches to prevent overtravel. |

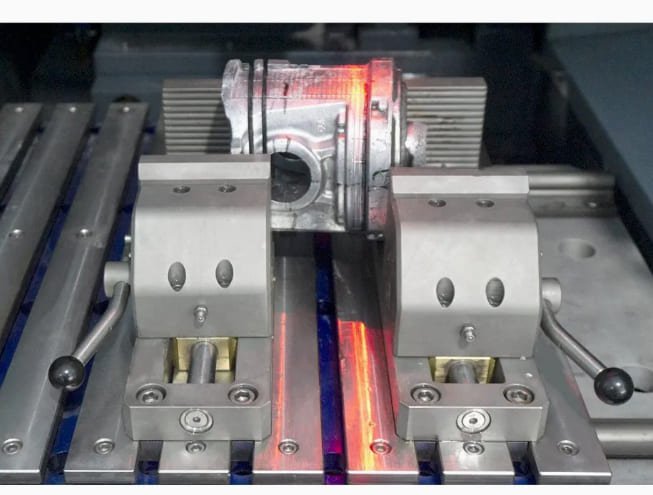

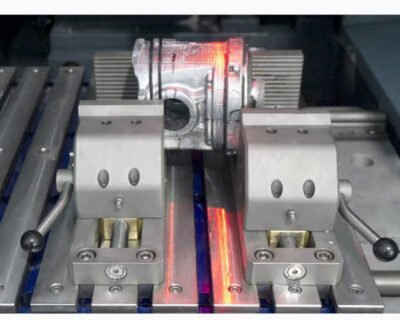

| Flexible Cutting Table & Travel Axes | Table size 438×388 mm; travels: Z ≈210 mm, Y ≈370 mm, X ≈210 mm; supports large diameter/square cross-sections. |
