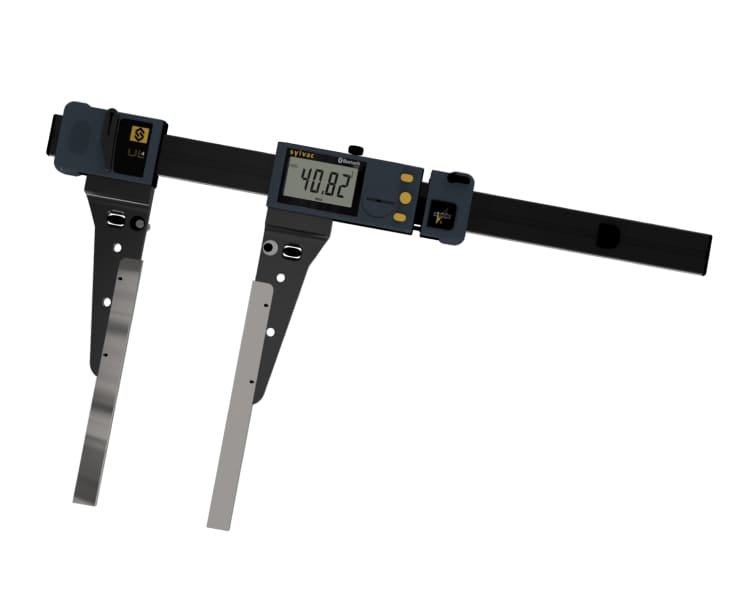

Caliper Ultra Light UL4 Special Jaws Type A Sylvac

The Sylvac Ultra Light Caliper UL4 Special Jaws Type A provides exceptional portability with measuring ranges from 400 to 3000 mm. Its durable construction features a special aluminum profile reinforced with stainless steel guide rods.

Features

Unprecedented Size, Unmatched Portability

Our large callipers offer impressive measuring ranges from 400 to 3000 mm, making them perfect for accurately measuring large dimensions.

Seamless Data Aquisition

ntegrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity. Also features a Proximity data output.

Built to last

Crafted with a frame made of special aluminum profile reinforced with 4 stainless steel guide rods, our IP67 are built to withstand the demands of rigorous use while maintaining stability and accuracy.

User-Friendly Design

The XXL display unit, with digits 20 mm high, offers excellent readability. With three buttons, including a central button with a selectable favorite function, operating this light.

Controlled force

To ensure accurate and consistent measurements, our equipped with an integrated force control device. This feature allows the operator to verify.

Adaptable to your needs

Jaws available in ≤300mm or ≤400mm for optimal precision and performance.

Overview

	811-2316-99	811-2317-99
EAN	7640125681833	7640125681840
Special jaws (pair)	Lenght L to specify with order (max 400 mm)
L (mm)	≤ 300	≤ 400
M (mm)	L – 75

	UL 400	UL 600	UL 1000	UL 1500	UL 2000	UL 2500	UL 3000
UL specification	Max. error. (μm) / Repeatability (μm)
With Jaws 811-2316-99	40/20	50/20	70/20	130/30	180/40	220/40	320/40
With Jaws 811-2317-99	70/40	80/40	120/40	200/50	300/60	400/70	500/70
Measuring range (mm)	400	600	1000	1500	2000	2500	3000

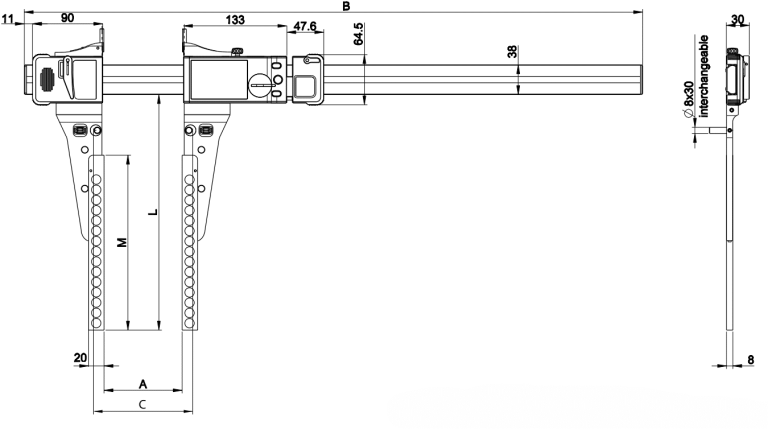

A (mm)	0-478	0-683	0-1093	0-1608	0-2123	0-2638	0-3153
C (mm)	27-505	27-710	27-1110	27-1635	27-2150	27-2665	27-3180
B (mm)	796	1001	1411	1926	2441	2956	3471
Resolution (mm)	0.01
Measuring Force (N)	7.5 – 11.5 (±20%)
Output data	Bluetooth® wireless technology/ RS232 / USB
IP67 Protection	⬤
Preset max.	±9999.99 mm / ±399.9995 IN
Setting by PC	⬤
2 references	⬤
Min/Max function	⬤
Tolerance limit indicators	⬤
