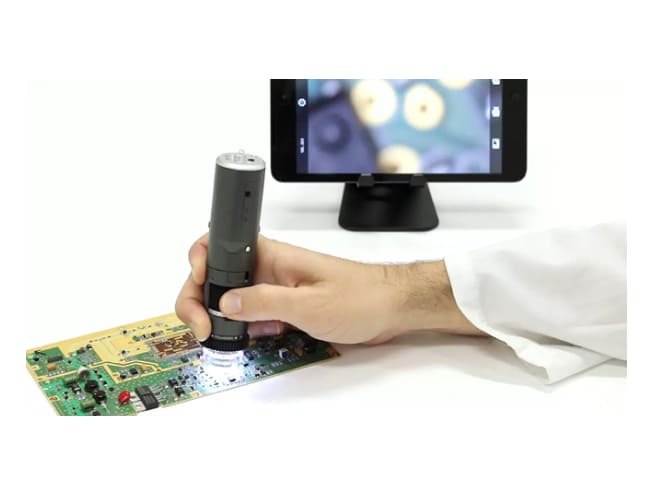

Designed for mobile microscopy, the Dino-Lite WF-20 adds versatility and agility by converting compatible Dino-Lite AF microscopes into wireless tools. With support for iOS, Android, and Windows apps like DinoCapture and DinoConnect, users can view, measure, and share live images seamlessly.

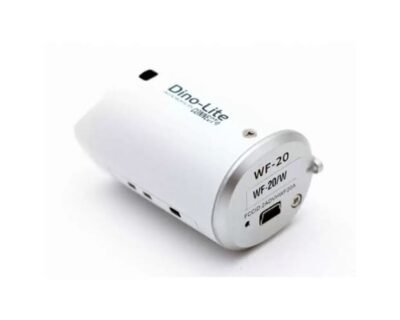

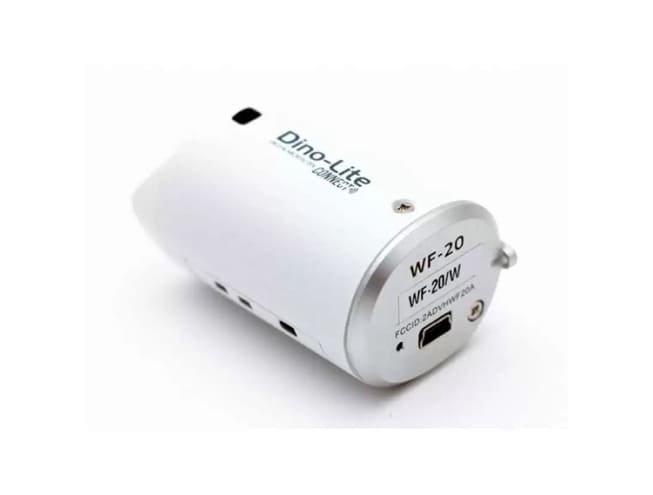

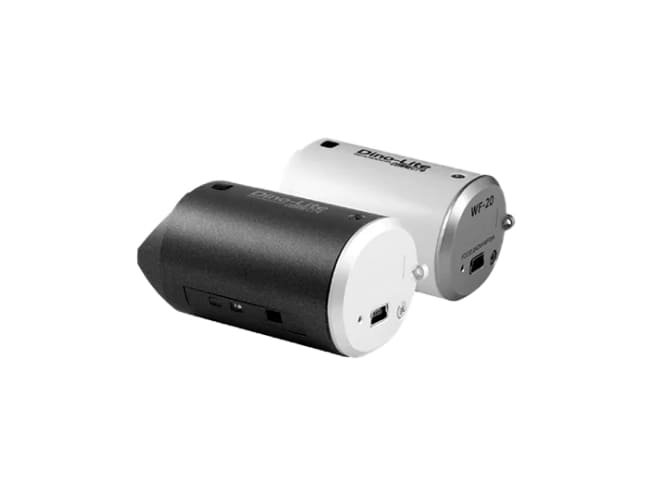

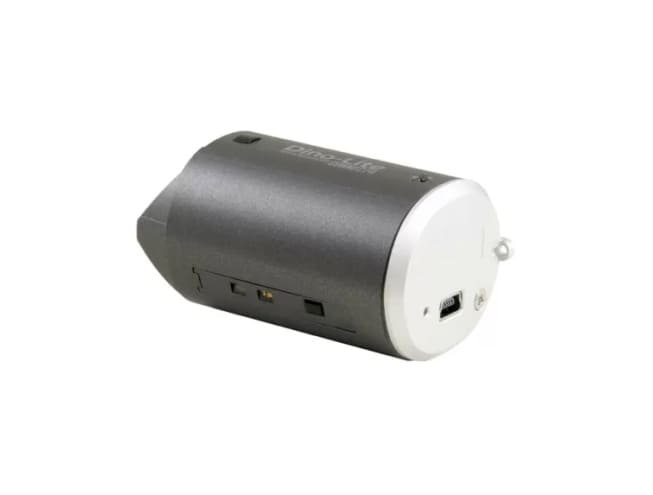

Wi-Fi Streamer Dino-Lite WF-20

The Wi-Fi Streamer Dino-Lite WF-20 features stable IEEE802.11b/g/n Wi-Fi connectivity, over 2.5 hours of continuous operation per charge, and a compact design that doubles as a wireless router. It enhances productivity both in labs and on site.

Features

Wireless Streaming

Enables live image transmission from Dino-Lite AF microscopes to mobile devices or software wirelessly.

Stable Wi-Fi Connection

Supports Wi-Fi IEEE802.11b/g/n for reliable image transmission.

Extended Battery Life

Over 2.5 hours of continuous operation on a single charge (tested with AF4915 models).

Mobile & PC Compatibility

Works with iOS/Android apps (DinoConnect) and Windows software (DinoCapture 2.0).

Configurable Router Mode

Can act as a wireless router to maintain network or Internet connectivity.

Overview

Specification	Value
Product	WF-20 Wi-Fi Streamer
Compatible Microscopes	Dino-Lite AF Series
Battery Capacity	1600 mAh
Continuous Operation Time	2.5 hours
Weight (with battery)	57 g
Dimensions (L × W × H)	58 × 36.5 × 32 mm
Wi-Fi Standard / Band	2.412-2.485 GHz (IEEE 802.11 b/g/n)
Default Network	SSID “Dino-Lite WF-20”, password “12345678” (default)
Operating Temperature	10-45 °C
System Requirements	iOS 8.0+, Android 4.4+, Windows via DinoCapture software
Warranty & Certifications	CE, FCC; typical 2-year warranty in many markets
