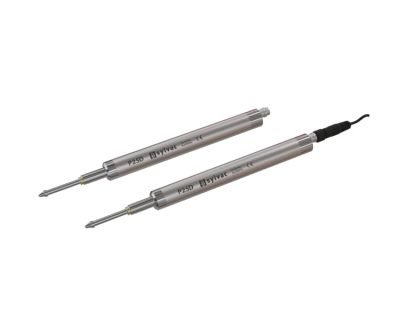

Absolute Digital Measuring Probes P25D Sylvac

Introducing Absolute Digital Measuring Probes P25D, featuring a 25mm range and 0.01µm resolution for precise measurements. Built with robust construction and IP54 protection.

Features

Precision at Your Fingertips

This probe provides high-precision measuring with a range of 25mm and a resolution of 0.01µm. Its patented dual inductive system ensures accuracy.

Built to Last

With an extremely robust ball bearing guide and a stainless steel body, the probe is designed to withstand heavy-duty workshop use. Its protection class IP54 ensures.

Lightning-Fast Readings

p to 100 values per second (depending on configuration) ensure fast and efficient measurement.

Direct Digital Output

The probe can be connected directly to a computer via USB or an M8 industrial connector, allowing for seamless integration.

Accuracy You Can Count On

The P25D has a maximum error of 1.2µm and a repeatability of 0.1µm, ensuring precise and reliable results every time.

Convenient and Customizable

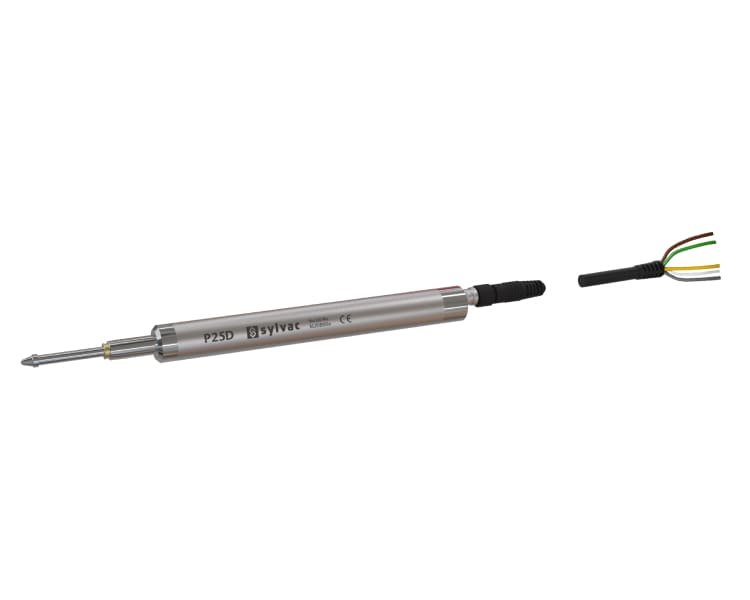

Comes with a straight cable length of 2m and offers both USB and M8 connectors.

Overview

	801-1225	801-1228	801-1229	801-1235	801-1238
Type	P25D M8	P25D USB	P25D OPEN	P25D M8 CF ²	P25D USB CF ²
EAN	7640125696646	7640125696653	7640125696684	7640125696691	7640125696707
Force ¹ (N)	0.7 – 1.3			0.15
Measuring range (mm)	25.4
Resolution (µm)	0.01
Max. Error (µm)	0.8
Repeatability (µm)	0.1
Nb measures/s	up to 100/s, according to configuration ³
Output data	M8	USB	OPEN	M8	USB
Protection	IP54
