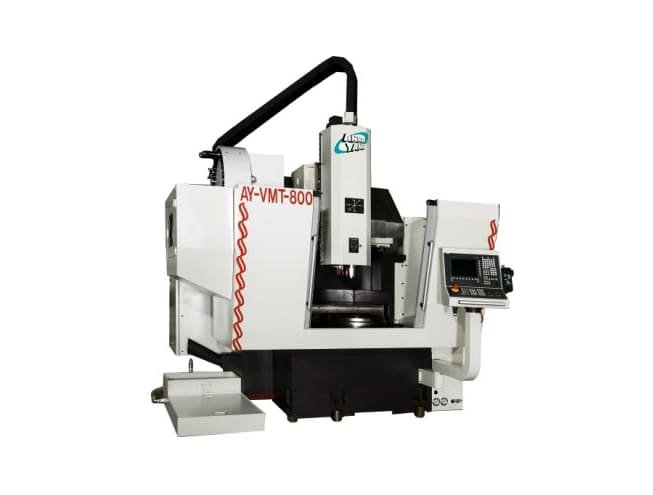

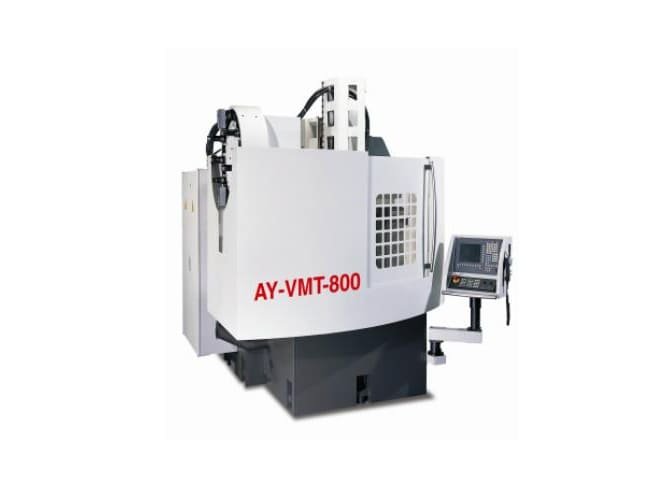

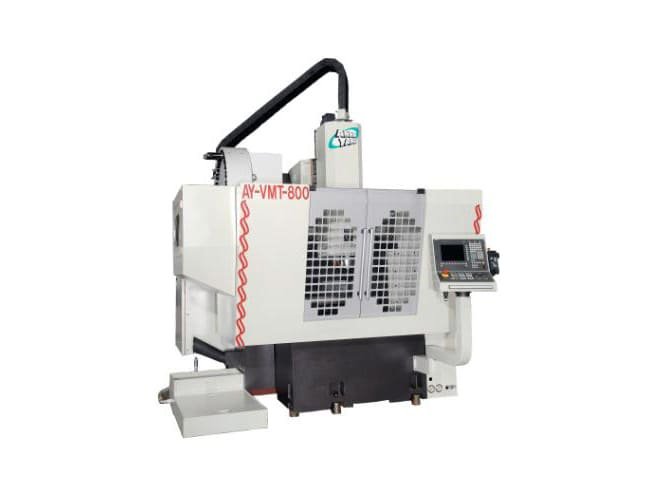

Annn Yang Vertical Machining Center AY-VM-800~1000
Annn Yang Vertical Machining Center AY‑VM‑800~1000 delivers robust CNC milling performance for medium to large workpieces with reliable precision engineering from Annn Yang. Its vertical spindle structure and rigid construction support accurate 3‑axis machining, ideal for industrial parts, die work, and precision components.
24 people are viewing this product right now
🔥 11 items sold in last 3 hours
The AY‑VM‑800~1000 vertical machining center offers stable, automated CNC milling with a spacious work envelope and tool magazine capacity. Designed with precision linear guideways and powerful spindle options, it supports efficient rough and finish cutting in metalworking and heavy fabrication shops.
Annn Yang Vertical Machining Center AY-VM-800~1000
Built for productivity, the Annn Yang AY‑VM‑800~1000 pairs durable build quality with CNC automation. Its ATC system, broad travel axes, and strong spindle performance give machining versatility for a wide range of materials and applications, from automotive parts to industrial tooling.
Features
Overview
| Spec | AY-VM-800 | AY-VM-1000 |
|---|---|---|
| Table Surface (mm) | 1100 × 600 | 1350 × 650 |
| T-Slot (size × number × pitch) | 18 × 5 × P100 | 18 × 5 × P100 |
| Max Table Load | 1000 kg | 1200 kg |
| Travel (X × Y × Z) | 800 × 500 × 530 mm | 800 × 500 × 650 mm |
| Spindle to Table Distance | 120 mm | 120 mm |
| Max Swing / Cutting Diameter | 800 mm | 1000 mm |
| Spindle Nose / Taper | HSK-63A / HSK-E40 | HSK-63A / HSK-E40 |
| Spindle Speed | 24,000 / 30,000 rpm | 24,000 / 30,000 rpm |
| Rapid Travel | 30 m/min (X/Y/Z) | 30 m/min (X/Y/Z) |
| Cutting Feed Rate | 1 – 8,000 mm/min | 1 – 8,000 mm/min |
| Tool Magazine | 24 + 1 | 24 + 1 |
| Max Tool Diameter | 90 mm | 90 mm |
| Max Tool Length | 300 mm | 300 mm |
| Max Tool Weight | 10 kg | 10 kg |
| Motor (X / Y / Z) | 3.3 kW / 4.87 kW / 4.87 kW | Same |
| Machine Footprint (L × W × H) | 3700 × 2800 × 3700 mm | 3900 × 3100 × 3700 mm |
| Approx. Weight | 11,000 kg | 13,000 kg |
