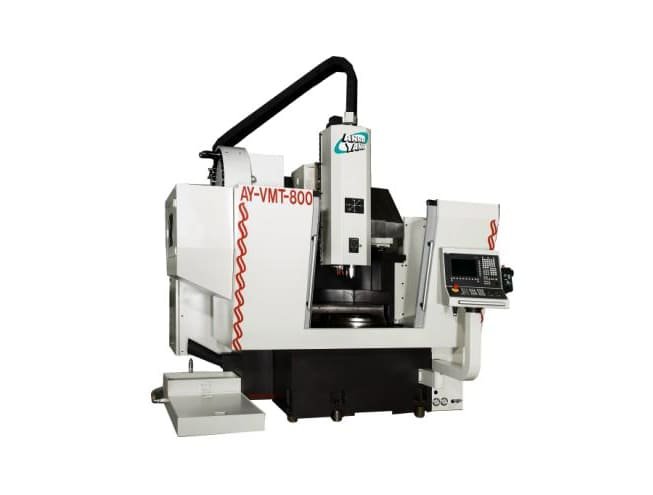

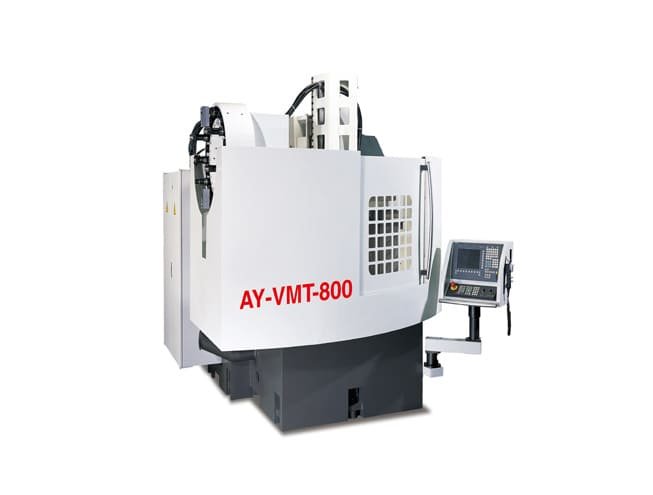

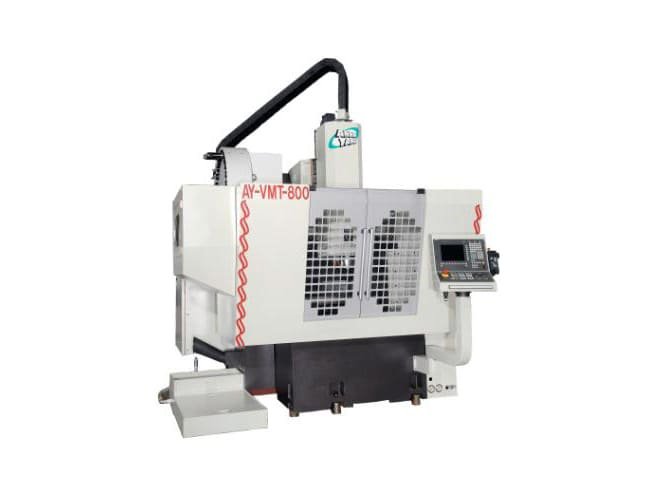

Annn Yang Vertical Milling & Turning Machine Center AY-VMT-600~800
The Annn Yang Vertical Milling & Turning Machine Center (AY-VMT-600~800) is a versatile CNC machining center that combines vertical milling and turning operations in one platform. With combined X/Y/Z motion and a table-mounted workpiece, it reduces setup time by machining turning and milling tasks without repositioning parts.
32 people are viewing this product right now
🔥 5 items sold in last 3 hours
Designed for medium-duty fabrication, the AY-VMT-600 and AY-VMT-800 deliver efficient vertical turning and milling with high rigidity and precision. Each model features a robust guide-way, ATC tool changer, and servo drives — ideal for drilling, boring, threading, and face machining with reduced cycle times.
Annn Yang Vertical Milling & Turning Machine Center AY-VMT-600~800
Annn Yang’s AY-VMT-600~800 Machine Center integrates vertical milling spindle movement with turning capabilities, expanding the machine’s functionality beyond traditional vertical mills. This CNC machine’s optimized structure accelerates productivity for metalworking tasks in automotive, aerospace, and general fabrication shops.
Features
Overview
| Specification | AY-VMT-600 | AY-VMT-800 |
|---|---|---|
| Table Working Surface | 900 × 550 mm | 1100 × 600 mm |
| T-slot (size × number × pitch) | 18 × 4 × P100 | 18 × 5 × P100 |
| Max Table Load | 800 kg | 1000 kg |
| X-Axis Travel | 600 mm | 800 mm |
| Y-Axis Travel | 500 mm | 500 mm |
| Z-Axis Travel (with table / with chuck) | 650 mm / 530 mm | 650 mm / 530 mm |
| Distance Spindle End to Table | 120 mm | 120 mm |
| Turning Capacity (Max Swing / Max Cutting Diameter) | 600 mm | 800 mm |
| Max Cutting Length (Turning) | 530 mm | 530 mm |
| Turning Spindle Nose | A2-8 | A2-8 (or A2-11 in some configs) |
| Spindle Speed (Turning) | 2000 rpm | 2000 rpm |
| Milling Spindle Nose / Taper | HSK-63A | HSK-63A |
| Milling Spindle Speed | 12000 rpm | Options up to 20000 rpm in some versions |
| Bed Way Type / Depth / Width | 45 linear guide ways; depth 70 mm in X/Y/Z; width varies (e.g. X WIDTH 600-650 mm etc.) | |
| Feed / Rapid Travel (X, Y, Z) | Rapid: 30 m/min both X/Y and Z | Same |
| Cutting Feed Rate | 1 ~ 8000 mm/min | Same range |
| ATC Tool Capacity | 24 + 1 tools | Same |
| Max Tool Diameter | 90 mm | Same |
| Max Tool Length | 300 mm | 300 mm |
| Max Tool Weight | 10 kg | Same |
| Motors (X / Y / Z Axes) | X: 3.3 kW, 16 Nm; Y: 4.87 kW, 27 Nm; Z: 4.87 kW, 27 Nm | Same proportions |
| Milling Spindle Motor Power | 7.5-11 kW (48 Nm), depending on config | Same or variant with higher rpm options |
| Turning Spindle Motor Power | 15 / 20.5 kW, 95.5 Nm | Same scale |
| Oil Cooler / Lubrication / Coolant Pumps | 1 HP oil cooler; 100 W lubrication pump; 1 HP coolant pump; air cylinder 6 kg/cm² | Same layout |
| Machine Footprint Size (L × W × H) | 2600 × 2200 × 3000 mm | 2800 × 2300 × 3200 mm |
| Approx. Net Weight | 9000 kg | 11000 kg |
