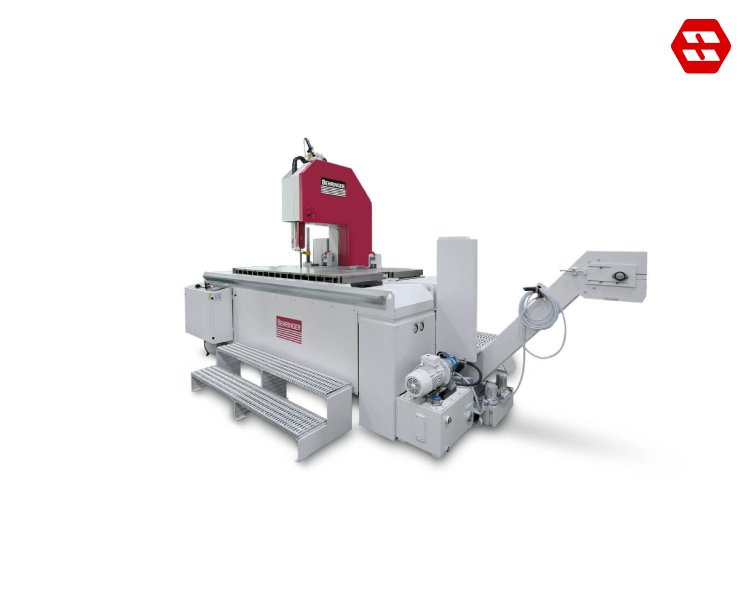

Vertical Bandsaw LPS40-4

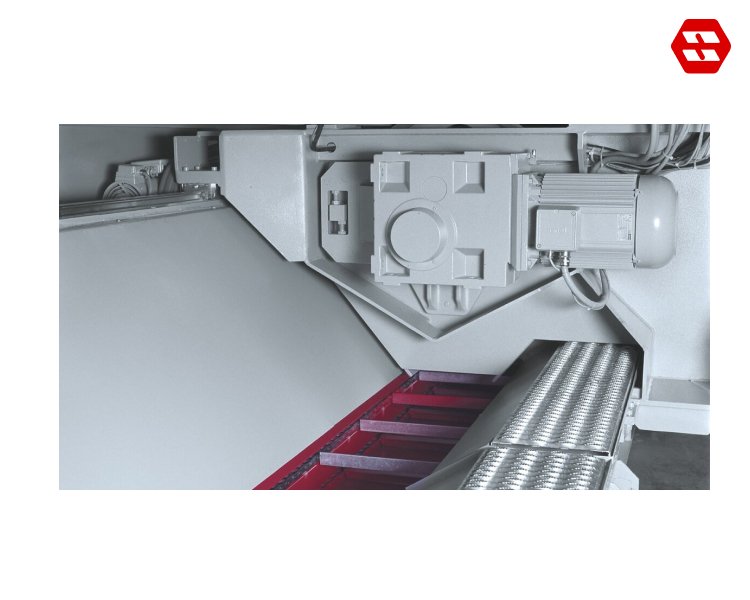

Servo Feed System

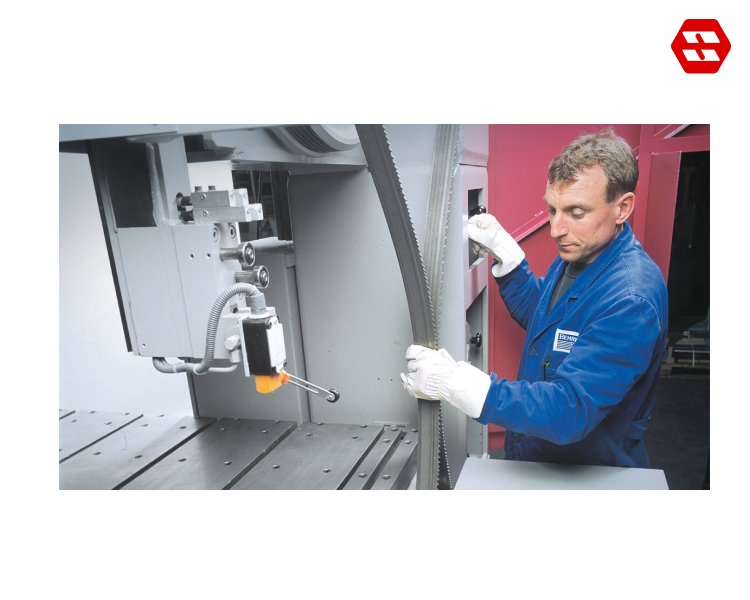

Quick Saw Blade Change

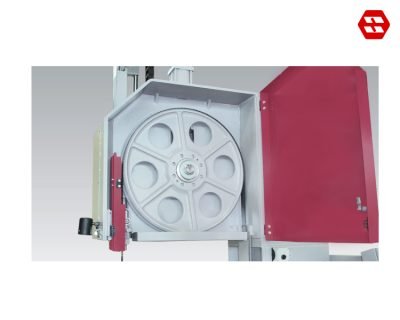

Band Guiding Parts Made of Grey Cast Iron

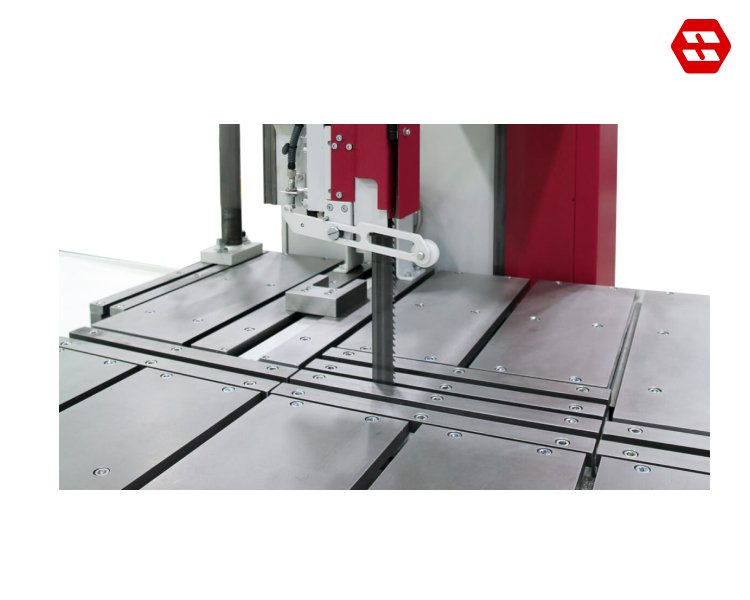

Precise Band Guides and Effective Chip Cleaning

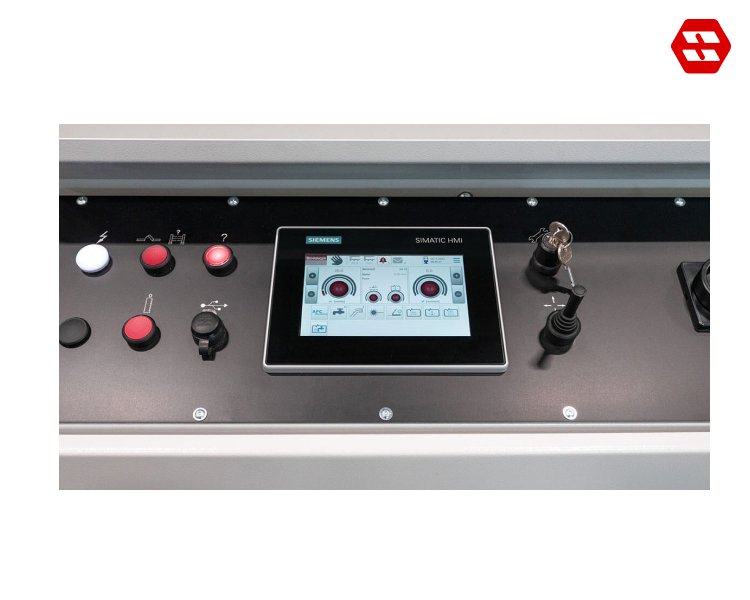

Intelligent Control

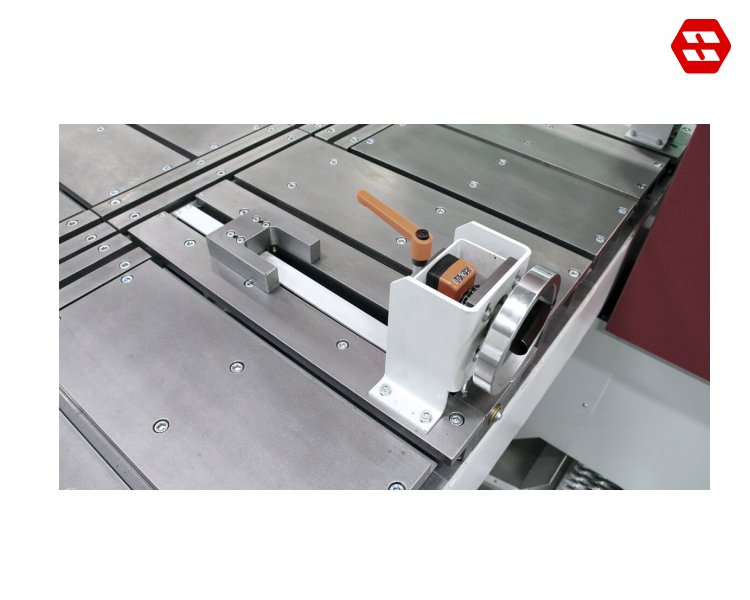

Application-Specific Table Variants
Features of The Vertical Bandsaw LPS40-4
Technical Data Vertical Bandsaw LPS40-4
| Cutting Range | |
| Cutting length | 4,000 mm |
| Cutting width | 680 mm |
| Cutting height | 400 mm |
| Minimum cutting width | 15 mm |
| Minimum cutting height | 10 mm |
| Performance Characteristics | |
| Drive power | 5.5 kW |
| Blade speed | 17 – 120 m/min |
| Saw blade dimensions | 5,400 x 41 x 1.3 mm |
| Total power | 13 kW |
| Supporting area inside table | 680 x 4,000 mm |
| Supporting area outside table | 680 x 4,000 mm |
| Dimensions and Weight | |
| Length | 6,450 mm |
| Width | 2,350 mm |
| Height | 2,870 mm |
| Weight | 10,000 kg |
| Material support height | 1,385 mm |
