Vertical Bandsaw LPS40-160-4

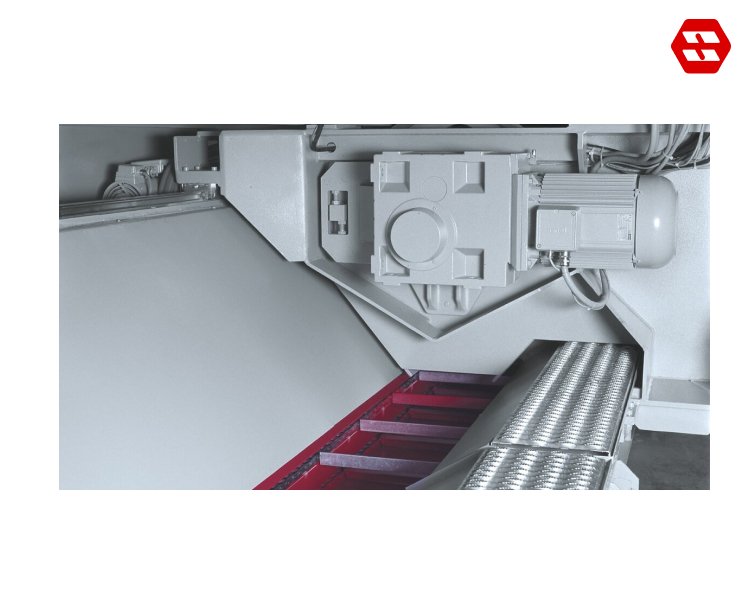

Servo Feed System

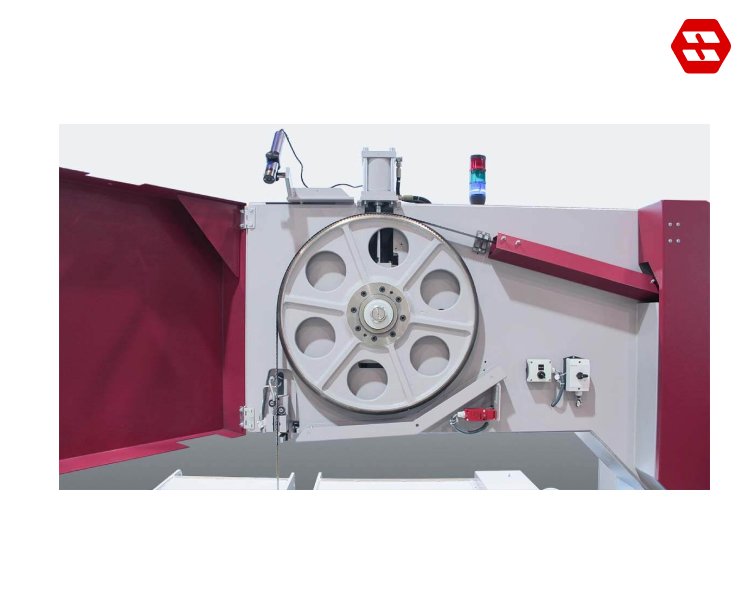

Band Guiding Parts Made of Grey Cast Iron

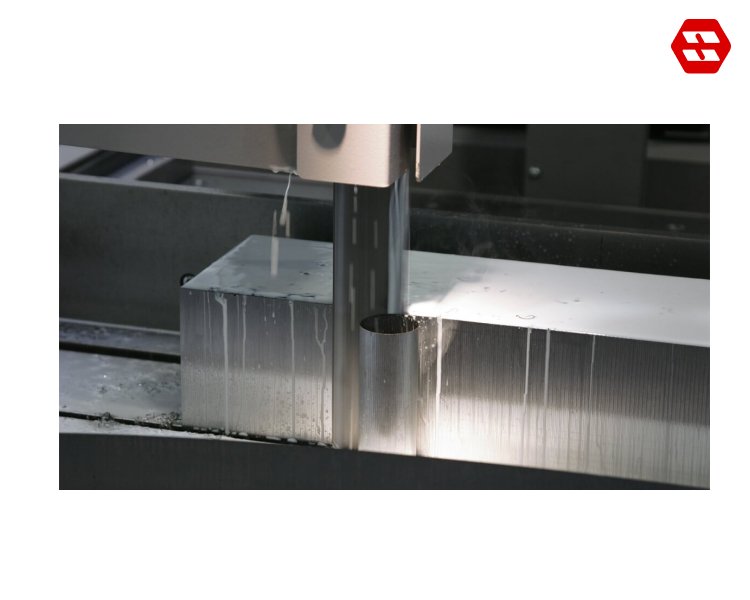

Unsurpassed Precise Plate Saw

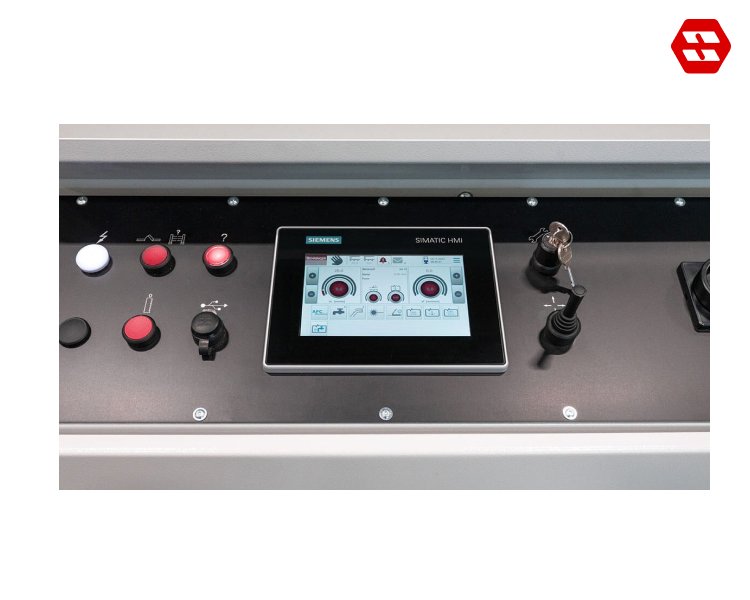

Intelligent Control
Perfect Blade Guidance and Chip Removal
Features of The Vertical Bandsaw LPS40-160-4
Technical Data Vertical Bandsaw LPS40-160-4
| Cutting Range | |
| Cutting length | 4,000 mm |
| Cutting width | 1,600 mm |
| Cutting height | 400 mm |
| Minimum cutting width | 15 mm |
| Minimum cutting height | 10 mm |
| Performance Characteristics | |
| Drive power | 5.5 kW |
| Blade speed | 17 – 120 m/min |
| Saw blade dimensions | 8,260 x 41 x 1.3 mm |
| Total power | 15 kW |
| Supporting area inside table | 1,600 x 4,000 mm |
| Supporting area outside table | 680 x 4,000 mm |
| Dimensions and Weight | |
| Length | 7,750 mm |
| Width | 4,000 mm |
| Height | 3,450 mm |
| Weight | 19,500 kg |
| Material support height | 1,385 mm |
