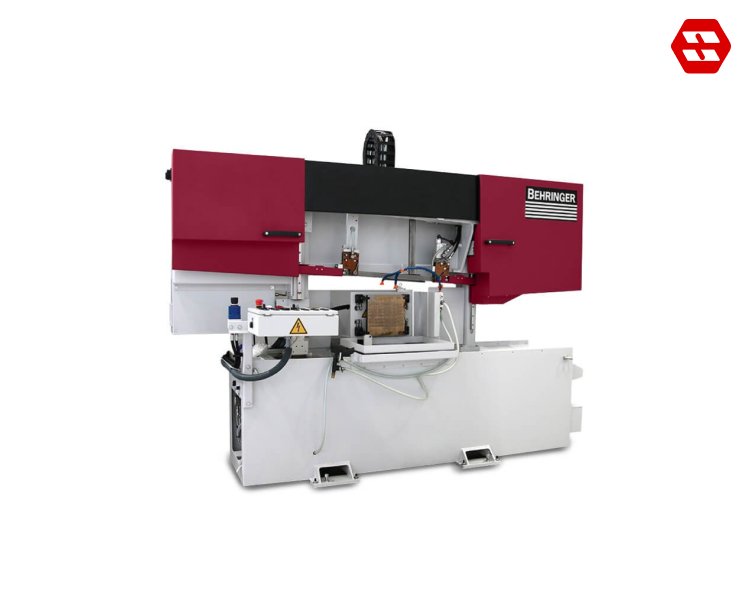

3D Saw HBE320-523 3D

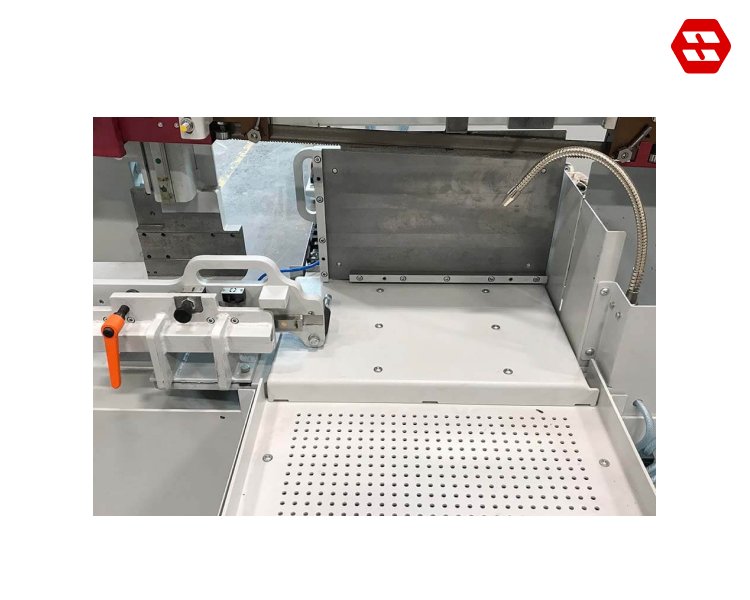

Easy Setup Due to Zero Point Stop System

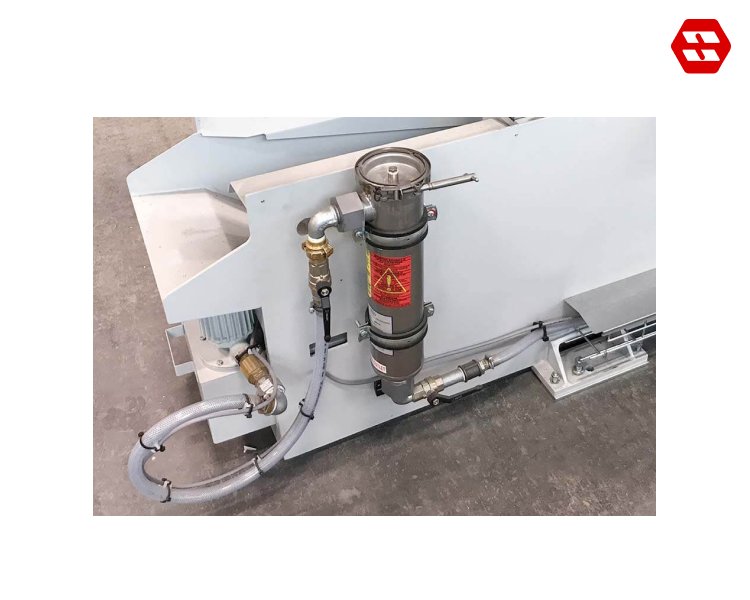

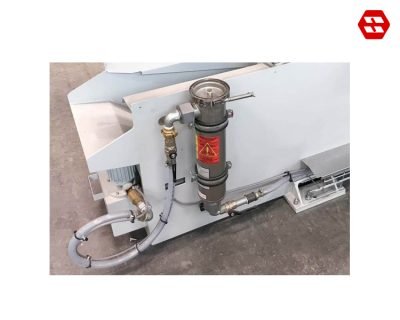

Coolant Filtration

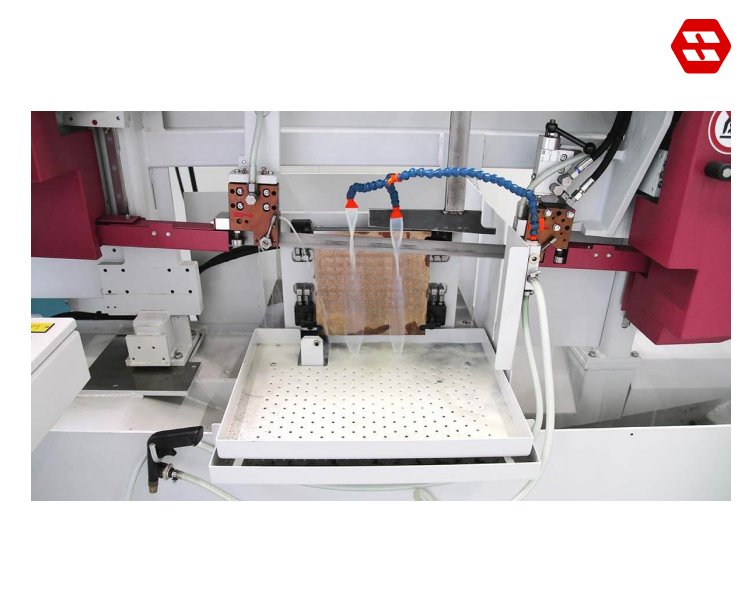

Sawing Process Significantly Faster Than Wire EDM Machines

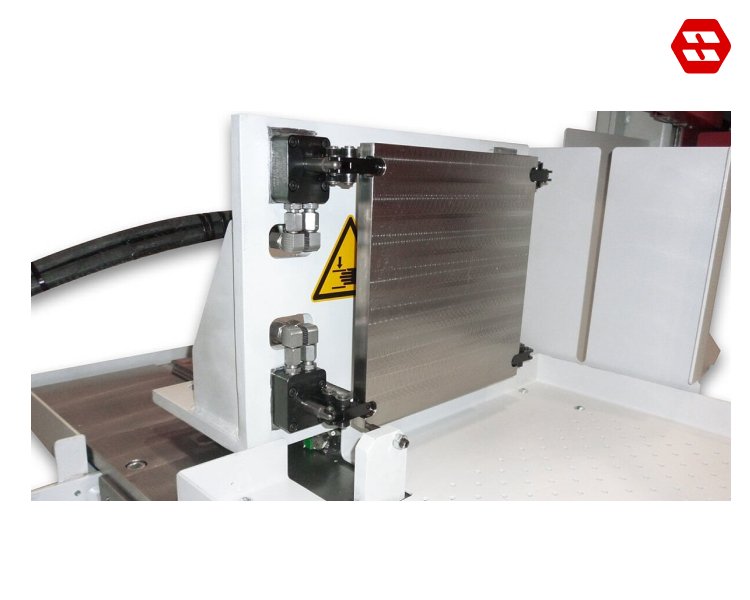

Individual Clamping Concepts (E.G. Hydraulic Clamping units)

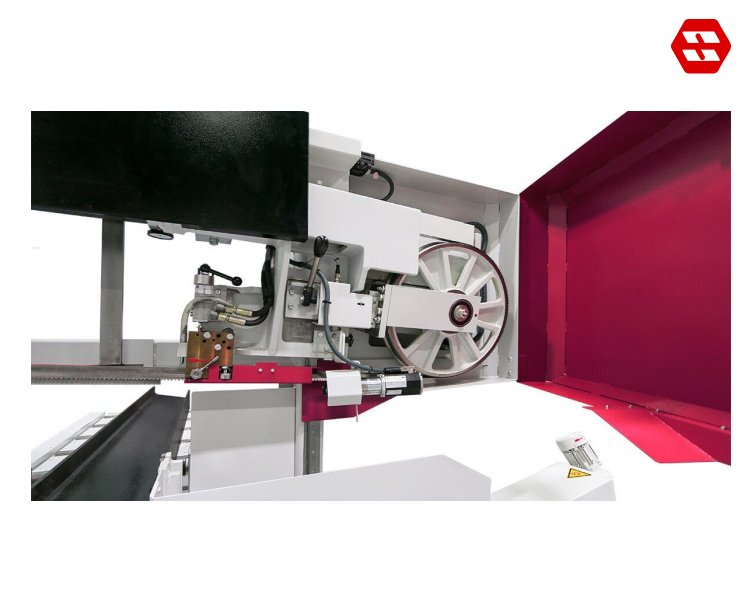

Cast Iron Band Guiding Parts

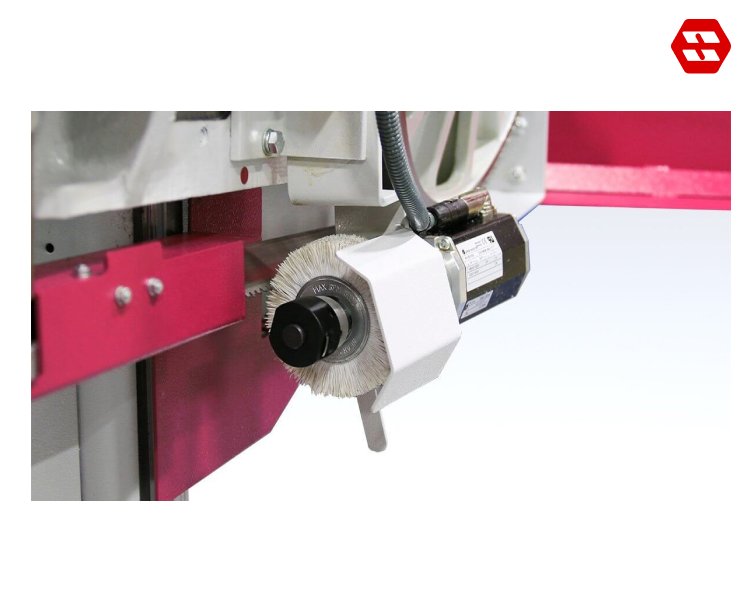

Electrically Driven Chip Brush
Features of The 3D Saw HBE320-523 3D
Technical Data 3D Saw HBE320-523 3D
| Cutting Range | |
| Maximum printing plate size flat W x H | 520 x 300 mm |
| Minimum printing plate size flat W x H | 100 x 100 mm |
| Maximum print height | 400 mm |
| Minimum plate thickness | 20 mm |
| Performance Characteristics | |
| Drive power | 2.6 kW |
| Blade speed | 15-110 m/min |
| Saw blade dimensions | 5,300 x 34 x 1.1 mm |
| Total power | 3.7 kW |
| Printing plate positioning | mechanical zero-point stop |
| Dimensions and Weight | |
| Length | 1,150 mm |
| Width | 2,750 mm |
| Height | 2,150 mm |
| Weight | 1,600 kg |
| Material support height | 830 mm |
