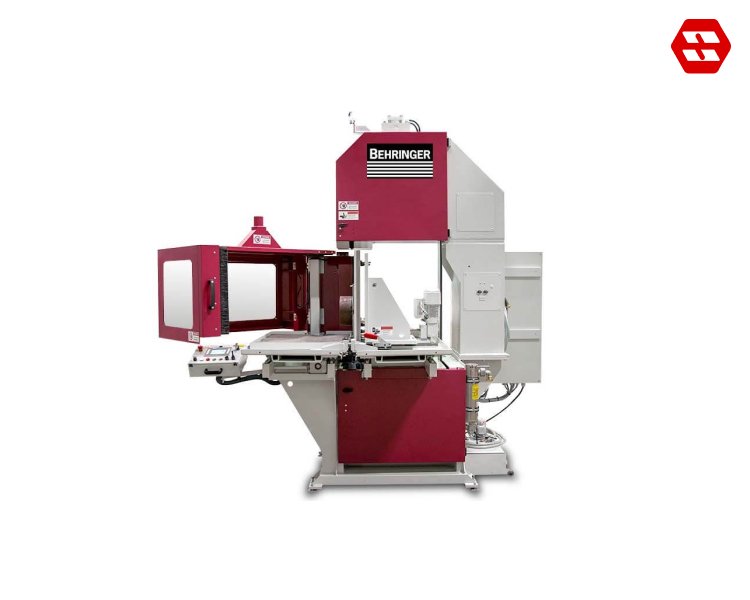

3D Saw LPS-T 3D
Maschinenumhausung
Vorrichtung Mit NC-Positionierung
Höchste Präzision
Kühlmittelfilter
Intuitive Touch Steuerung BehrCtrl10
Tischpositionierung über Kugelrollspindel
Features of The 3D Saw LPS-T 3D
Technical Data 3D Saw LPS-T 3D
| Cutting Range | |
| Maximum printing plate size flat W x H | 850 x 650 mm |
| Minimum printing plate size flat W x H | 100 x 100 mm |
| Maximum print height | 650 mm |
| Minimum plate thickness | 20 mm |
| Performance Characteristics | |
| Drive power | 4 kW |
| Blade speed | 17-120 m/min |
| Saw blade dimensions | 6,000 x 41 x 1.3 mm |
| Total power | 6 kW |
| Printing plate positioning | Servo motor via ball screw |
| Dimensions and Weight | |
| Length | 2,400 mm |
| Width | 2,300 mm |
| Height | 3,020 mm |
| Weight | 3,200 kg |
| Material support height | 1,150 mm |
