Automatic Bandsaw With Mitre Device SLB240AG

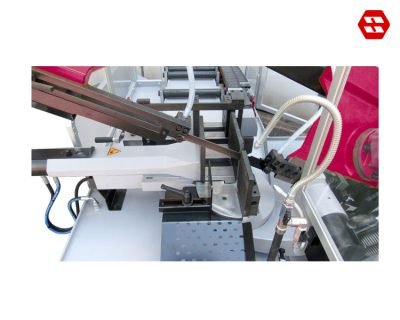

Material Clamps and Mitre Device
Saw Band Tensioning

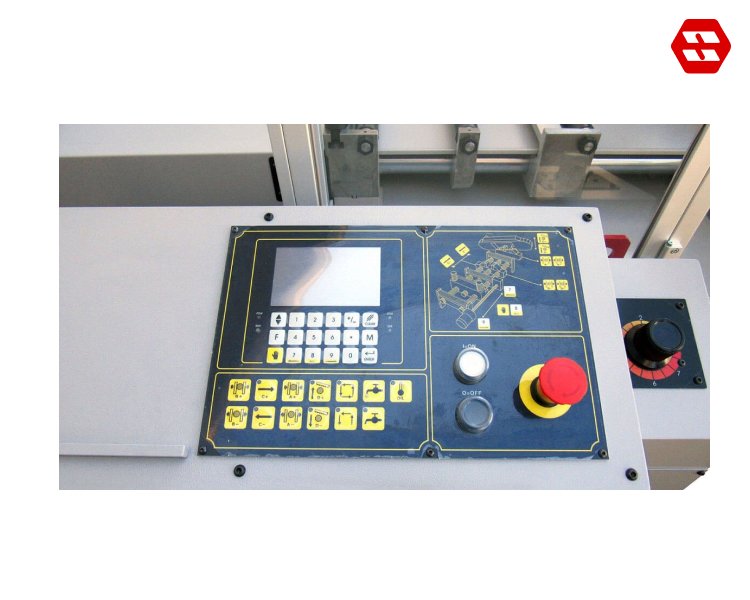

Control Panel

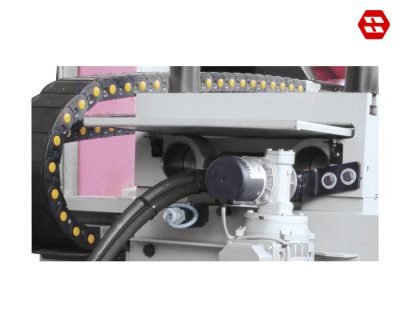

Automatic Material Feed
Material Feeding Gripper
Features of The Automatic Bandsaw SLB240AG
Technical Data Automatic Bandsaw SLB240AG
| Cutting Range | |
| Cutting range 90° round | 260 mm |
| Cutting range 90° flat | 310 x 260 mm |
| 45° Miter right round | 260 mm |
| 45° Miter right square | 260 x 260 mm |
| 45° Miter right flat | 290 x 120 mm |
| 30° Miter right round | 180 mm |
| 30° Miter right square | 180 x 180 mm |
| 30° Miter right flat | 190 x 90 mm |
| Smallest dimension to be sawn round | 10 mm |
| Smallest dimension to be sawn flat | 10 x 6 mm |
| Performance Characteristics | |
| Feeding length single stroke | 510 mm |
| Drive power | 1.5 kW |
| Blade speed | 16 – 120 m/min |
| Saw blade dimensions | 3,300 x 27 x 0.9 mm |
| Rest piece length in automatic mode (90°) | 80 mm |
| Shortes cutting length | 10 mm |
| Saw feed | hydraulic |
| Material feed | hydraulic |
| Dimensions and Weight | |
| Length | 2,550 mm |
| Width | 1,850 mm |
| Height | 1,700 mm |
| Weight | 1,160 kg |
| Material support height | 850 mm |
