Bandsaw Machine Automatic Plate VPS60-200A BEHRINGER
Merupakan mesin berperforma tinggi yang dirancang untuk pemotongan otomatis besar dengan presisi dan efisiensi. Menampilkan kemampuan otomatisasi tingkat lanjut, gergaji ini dapat menangani berbagai ukuran dan ketebalan dengan mudah. Dilengkapi dengan antarmuka yang ramah pengguna, kecepatan pemotongan yang dapat disesuaikan, dan teknologi pemotongan canggih, memiliki solusi pemotongan yang akurat.
39 people are viewing this product right now
🔥 10 items sold in last 3 hours
Automatic Plate Saw VPS60-200A

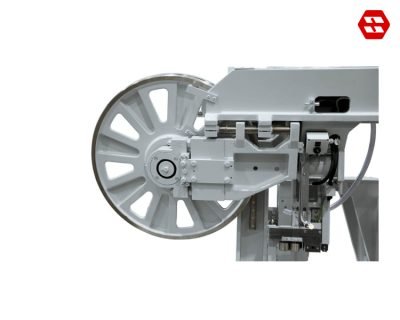

High-Performance Band Guide With Servo Feed System
Feed Gripper With Ball Screw and Servo Motor
Intelligent Control System
Efficient Chip Conveyor With Integrated Coolant Tank
Covered Material Support
Unsurpassed Precise Cross Cutting Plate Saw
Features of The Automatic Plate Saw VPS60-200A
Technical Data Automatic Plate Saw VPS60-200A
| Cutting Range | |
| Cutting range flat W x H | 200 x 600 mm |
| Smallest dimension to be sawn flat W x H | 500 x 20 mm |
| Shortest cutting length | 15 mm |
| Performance Characteristics | |
| Feeding length single stroke | 1,500 mm |
| Drive power | 7.5 kW |
| Blade speed | 17 – 120 m/min |
| Saw blade dimensions | 11,080 x 54 x 1.6 mm |
| Rest piece length in automatic operation | 40 mm |
| Total power | 15 kW |
| Saw feed | servo-feed via pinion gear |
| Material feed | ball screw |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 11,700 mm |
| Width | 3,600 mm |
| Height | 4,220 mm |
| Weight | 19,000 kg |
| Material support height | 1,650 mm |
