Automatic Table LPS-TA

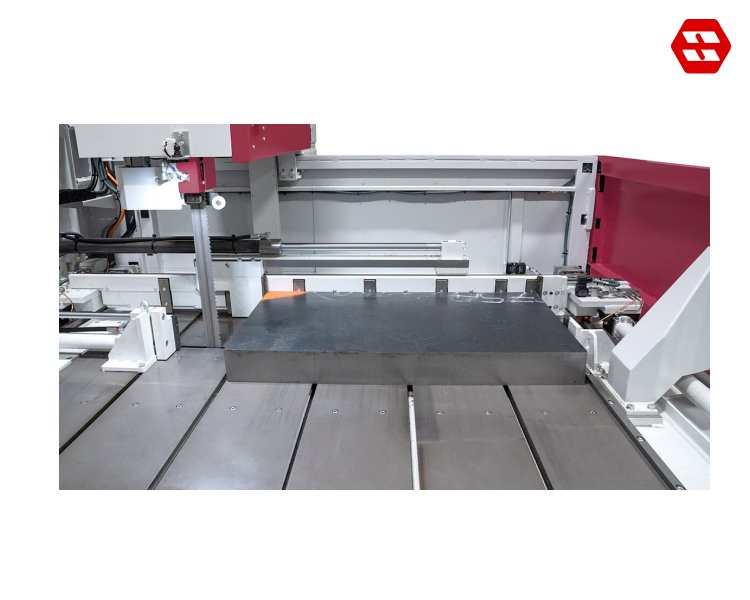

Automatic Material Positioning

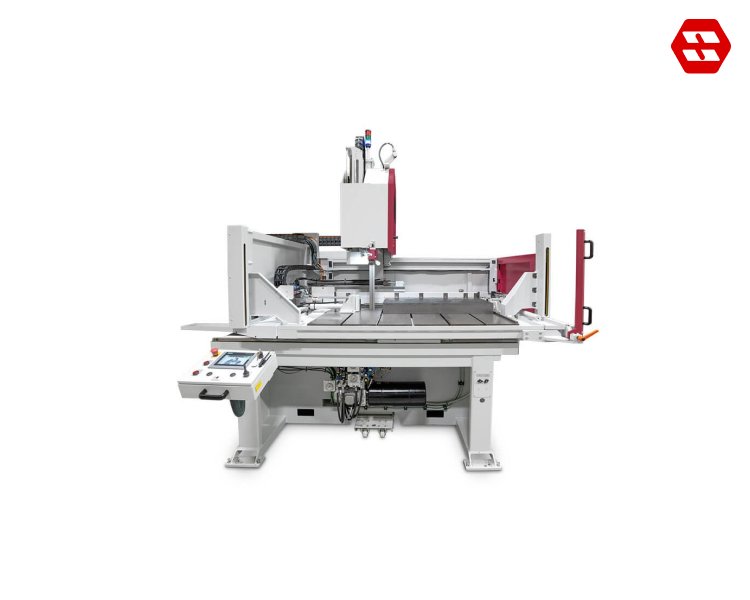

Compact Dimensions Due to Intelligent Protection Devices

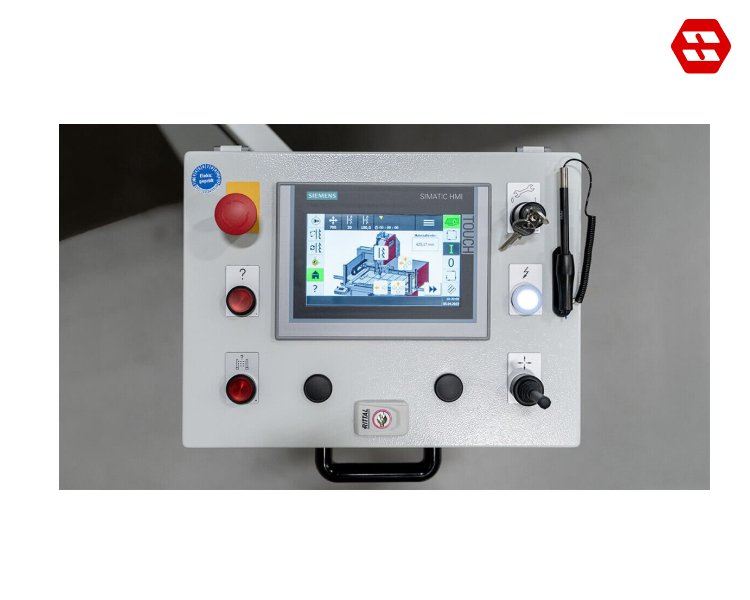

Intuitive Touch Control System

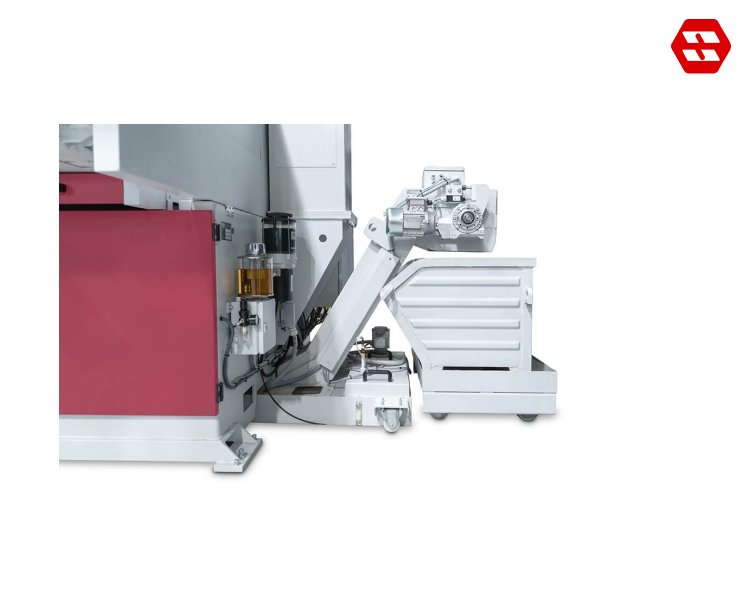

Chip Conveyor With Integrated Coolant Tank
Features of The Table Bandsaw LPS-TA
Technical Data Table Bandsaw LPS-TA
| Cutting Range | |
| Cutting length | 1,520 mm |
| Cutting width | 620 mm |
| Cutting height | 400 mm |
| Minimum cutting width | 10 mm |
| Minimum cutting height | 15 mm |
| Performance Characteristics | |
| Drive power | 4 kW |
| Blade speed | 17 – 120 m/min |
| Saw blade dimensions | 5,730 x 41 x 1.3 mm |
| Total power | 6 kW |
| Material feeding length | 600 mm |
| Supporting area inside table | 1,540 x 620 mm |
| Supporting area outside table | 1,540 x 640 mm |
| Maximum table load | 3,000 kg |
| Dimensions and Weight | |
| Length | 4,250 mm |
| Width | 3,450 mm |
| Height | 3,200 mm |
| Weight | 4,000 kg |
| Material support height | 1,200mm |
