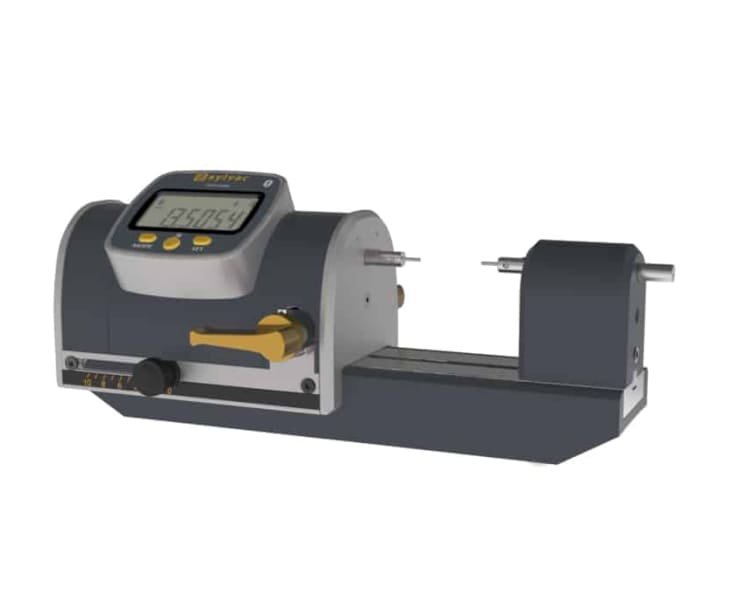

Bench Table PS16 V2 Smart Sylvac

The Bench Table PS16 V2 Smart by Sylvac is the ultimate measuring solution, featuring integrated Bluetooth® technology and a user-friendly design.

Features

All-in-one Integration

his measuring bench comes with integrated measuring system, integrated display and integrated Bluetooth technology for the measurement.

Seamless Data Aquisition

ntegrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.

User-Friendly Design

With a large display resolution of 0.0001 mm and color LEDs indicating tolerance status, it offers precise and easy readings. The ergonomic levers with ball bearing.

Built to Last

Our PS16 bench series is built to last in demanding workshop environments. Ball bearing guide, hard metal measuring anvils Ø1.5mm and IP67 protection class.

Versatile and Customizable

Our bench can be equipped with an extensive selection of measuring anvils and support tables, it is compatible with Sylvac Ø 1.5 mm and Cary type anvils.

Superior Performance

Our bench enables accurate measurement of small and intricate components that would otherwise be challenging to handle, ensuring consistent and reliable results. .

Overview

External measurement	808-1231	808-1232
EAN	7640125713633	7640125713992
Max. Capacity C (mm)	25	50
Max. Error (µm)	1.5	2.0
Repeatability (µm)	0.2
Resolution (µm)	0.1
Measuring force (Adjustable) (N)	0.1 – 0.6 ¹
Weight (kg)	3.6	4.2
Output data	Bluetooth® wireless technology / RS232 / USB
Anvils clamping dimension (mm)	Ø 1.5
Cary compatibility	⬤
A (mm)	232	287
B (mm)	66	97
