Caliper S_CAL Evo Carbide Basic Sylvac

The Sylvac S_CAL Evo Carbide Caliper is a precision measuring tool available in 150mm and 200mm sizes. It features durable carbide jaws and an IP67 stainless steel frame for reliability.

Features

Versatile Options

Ergonomic caliper available in different measuring ranges of 150mm, 200mm, and 300mm,

Built to Last

Crafted with a mechanical frame in 3.5 mm thick hardened and ground stainless steel, our IP67 caliper ensures durability and longevity.

Enhanced Efficiency

Maximize productivity with a swift maximum speed of displacement of 2.5m/sec,

User-Friendly Design

Experience effortless measurement reading with the new extra-large display unit

Seamless Data Aquisition

Integrated Bluetooth® Smart data transmission, allowing you to transmit measurements wirelessly, quickly and error-free for enhanced productivity.

Overview

	810-1410	810-1510	810-1529
EAN	7640125691030	7640125692747	7640125695380
Measuring range (mm)	150		200
Max. Error G – external measurements (µm)	20 ¹		30 ¹
Max. Error – internal measurements (µm)	20-30 ²		30 ²

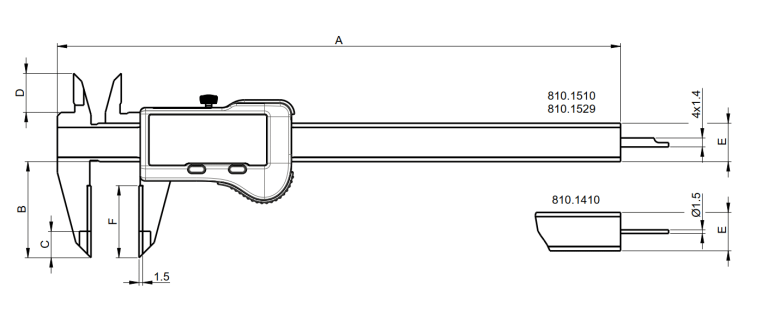

A (mm)	234.5		290
B (mm)	40		50
C (mm)	11		14
D (mm)	16		19
E (mm)	16 x 3.5		16 x 3.5
F (mm)	30		36
Depth rod (mm)	Ø 1.5	▬ 4 x 1.4
Protection rating according to IEC 60529	IP67
Output data	–	Bluetooth® wireless technology
Functions	Zero setting, Preset (max 999.99), mm/inch, Hold
Smart Inductive System (SIS)	⬤
