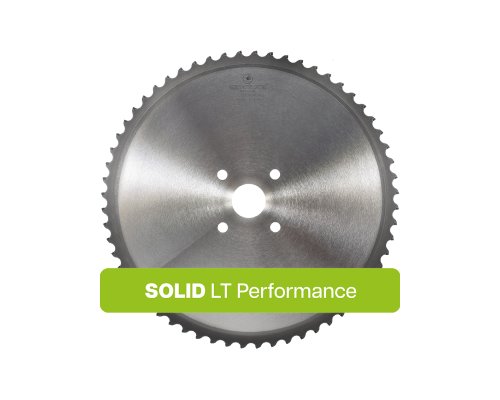

Precision & Efficiency United in SOLID LT Performance
SOLID LT Performance is ideally suited for cutting solid steel with low tensile strengths between 400 – 750 N/mm2 (carbon content < 0.60%) on a wide range of solid cutting applications like:
Hydraulic cylinders.
Bearing housing and wheels.
Wheel hubs.
Gear wheels.
Mechanical parts.
Bolts, nuts, fittings, couplings, flanges, hubs.
Axles, drive shafts, crankshafts.
Typical steel grades:
Mild steel.
Plain carbon steel.
Non alloyed steel.
Free cutting steel.
Low carbon steel.
Structural steel.
Medium carbon steel.
Typical machines |
| Manufacturer | Machine type |
| Amada | CM(B) series up to CM(B)150 |
| Noritake | NCS-series up to NCS150 |
| Behringer / Eisele | HCS-series up to HCS150 |
| Mega | CS-series up to CS150 |
| Wagner / Trennjäger | SPA-series up to SPA150 |
| Kasto | (vario-/grip-) speed C-series up to speed C15 |
| Everising | P-series up to P150 |
| Nishisimax | NHC-series up to NHC150 |
| Ficep | S-series up to S50 |
| Tsune | TJ/TK-series up to TJ/TK150 |
| Exactcut | TAC series up to TAC155 |
| Danobat / Plantool | VCS/QCS series |
STANDARD RANGE SOLID LT Performance |
| Diameter (mm) | Kerf (mm) | Bore hole (mm) | Pinholes | No. of teeth (Z) |
| 285 | 2,0/1,7 | 32 | 4/9/50 4/11/63 | 60 |
| 285 | 2,0/1,7 | 32 | 4/9/50 4/11/63 | 80 |
| 315 | 2,3/2,0 | 32 | 4/9/50 4/11/63 | 60 |
| 315 | 2,3/2,0 | 32 | 4/9/50 4/11/63 | 80 |
| 360 | 2,7/2,25 | 40 | 4/12/90 4/16/80 | 60 |
| 360 | 2,7/2,25 | 40 | 4/12/90 4/16/80 | 80 |
| 360 | 2,7/2,25 | 50 | 4/12/90 4/16/80 | 60 |
| 360 | 2,7/2,25 | 50 | 4/12/90 4/16/80 | 80 |
| 460 | 2,7/2,25 | 50 | 4/14/90 4/16/80 | 60 |
| 460 | 2,7/2,25 | 50 | 4/14/90 4/16/80 | 80 |
