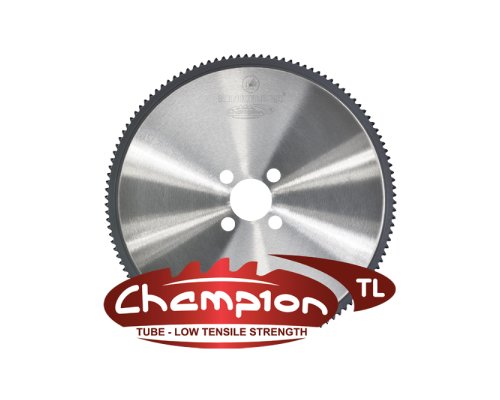

Circular Saw Blade TCT Champion TL Kinkelder
Price range: Rp15 through Rp20
Gergaji bundar ini memiliki puncak teknologi pemotongan, yang dirancang khusus untuk mengiris tabung dan profil cahaya dengan efisiensi dan presisi luar biasa. Dilengkapi ujung tungsten karbida yang kuat, bilah ini unggul dalam menjaga ketajaman dan daya tahan bahkan dalam kondisi pemotongan yang intens. Desain yang optimal meminimalkan pembentukan duri dan mengurangi penumpukan panas, memastikan potongan yang bersih dan halus.
27 people are viewing this product right now
🔥 3 items sold in last 3 hours
Your Ultimate Solution For Tube Cutting Performance
Typical applications include:
- Seating components, headrests
- Sleeves, cylinders, bushings
- Drive shafts, side shafts, half shafts
- Twistbeam
- Chassis / body structures, stabilizer bars, instrumental panel beams
- Camshafts, piston rods
- Suspensions, shock absorber parts
- Steering mechanics
- Fittings, couplings
- Differentials
Typical steel grades:
- Carbon steel (E355 +C)
- High Carbon, high tensile
- ‘Sticky’ materials
- High Strength Low Alloy (HSLA)
- Advanced High Strength Steel (AHSS)
- Manganese (Mn) alloyed
- Boron (B) alloyed
- Docol (SSAB)
- Dual Phase (DP, ArcelorMittal)
- XPF grades (Tata)
- Specifically: 22MnB5 / 26MnB5 / 27MnB5 , 34CrMo4 / 34CrMo4-HC / 34CrMo4-LC / 34MnB5 , MW1000L / MW700L
Typical Machines |
| Manufacturer | Machine type |
| Rattunde | ACS |
| RSA | Rasacut |
| Sinico | Top |
| Bewo | DCH / SCF (single/double) |
| Soco | SA series |
| Adige / BLM | TS/CM series |
STANDARD RANGE TUBE HT PRO |
| Diameter (mm) | Kerf (mm) | Bore hole (mm) | Pinholes | No. of teeth(z) |
| 315 | 2,3/2,0 | 32 | 4/9/50 4/12/64 | 100 |
| 315 | 2,3/2,0 | 32 | 4/9/50 4/12/64 | 120 |
| 315 | 2,3/2,0 | 40 | 2/9/55 4/12/64 | 100 |
| 315 | 2,3/2,0 | 40 | 2/9/55 4/12/64 | 120 |
| 350 | 2,7/2,5 | 50 | 4/16/80 | 100 |
| 350 | 2,7/2,5 | 50 | 4/16/80 | 120 |
| 350 | 2,7/2,5 | 50 | 4/16/80 | 140 |
